Description

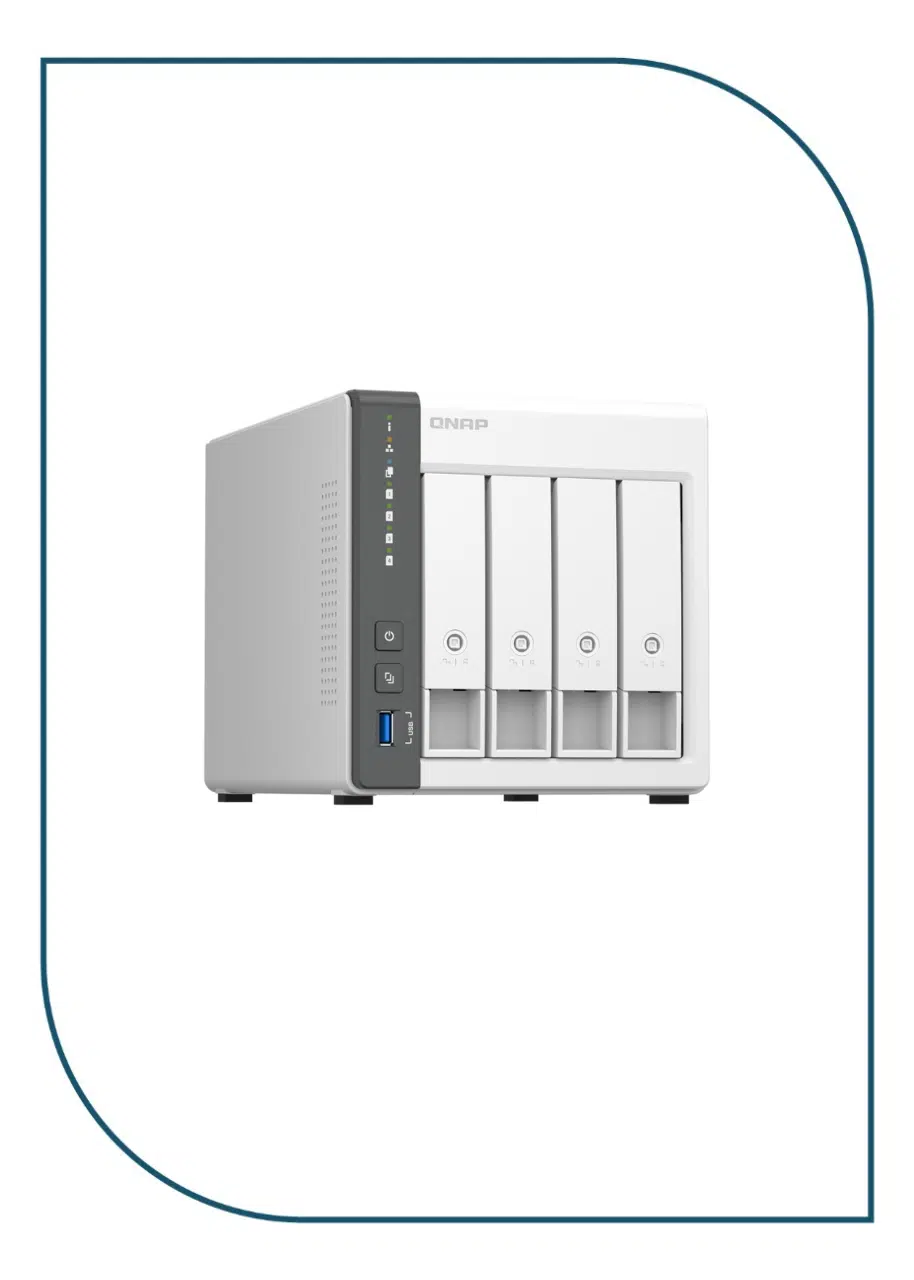

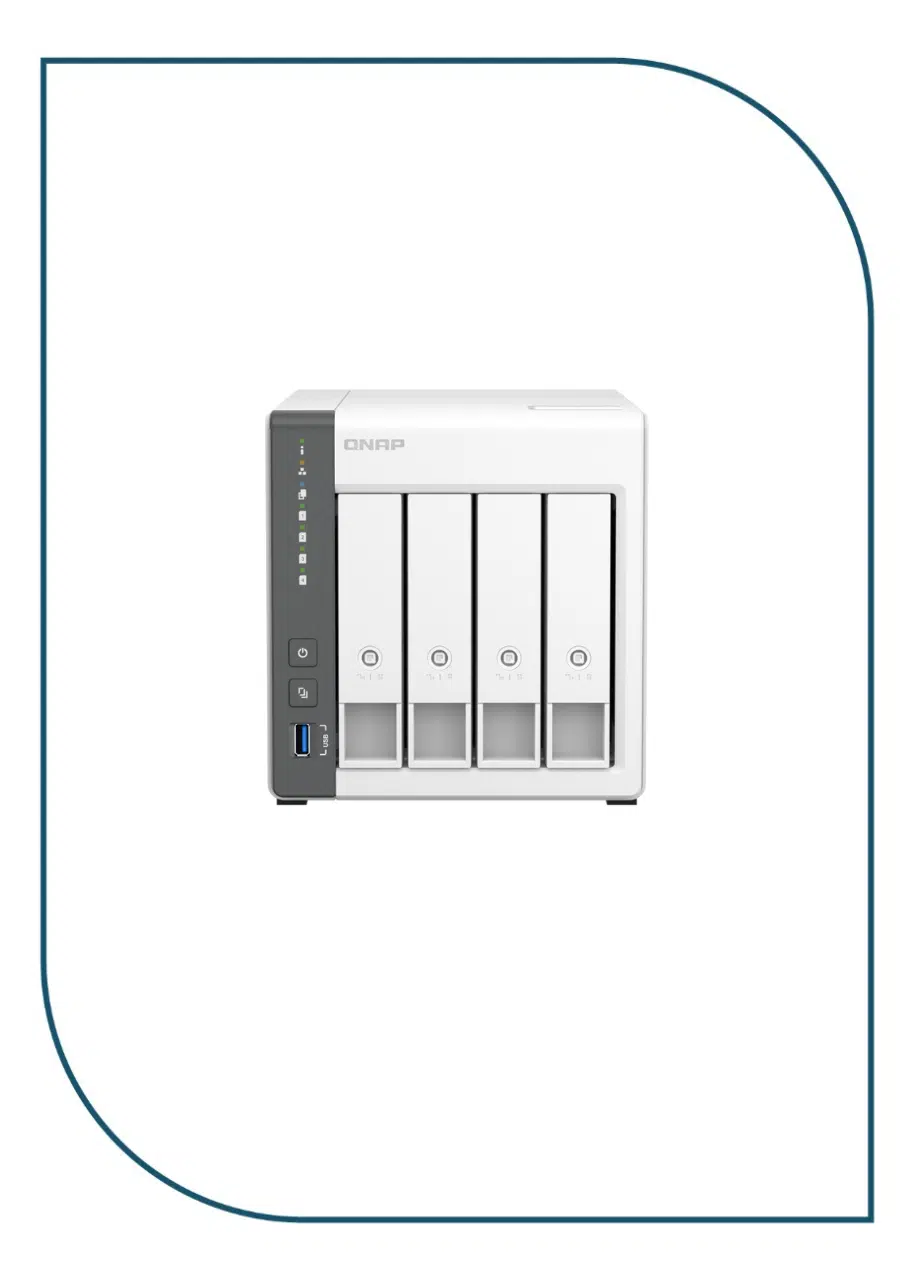

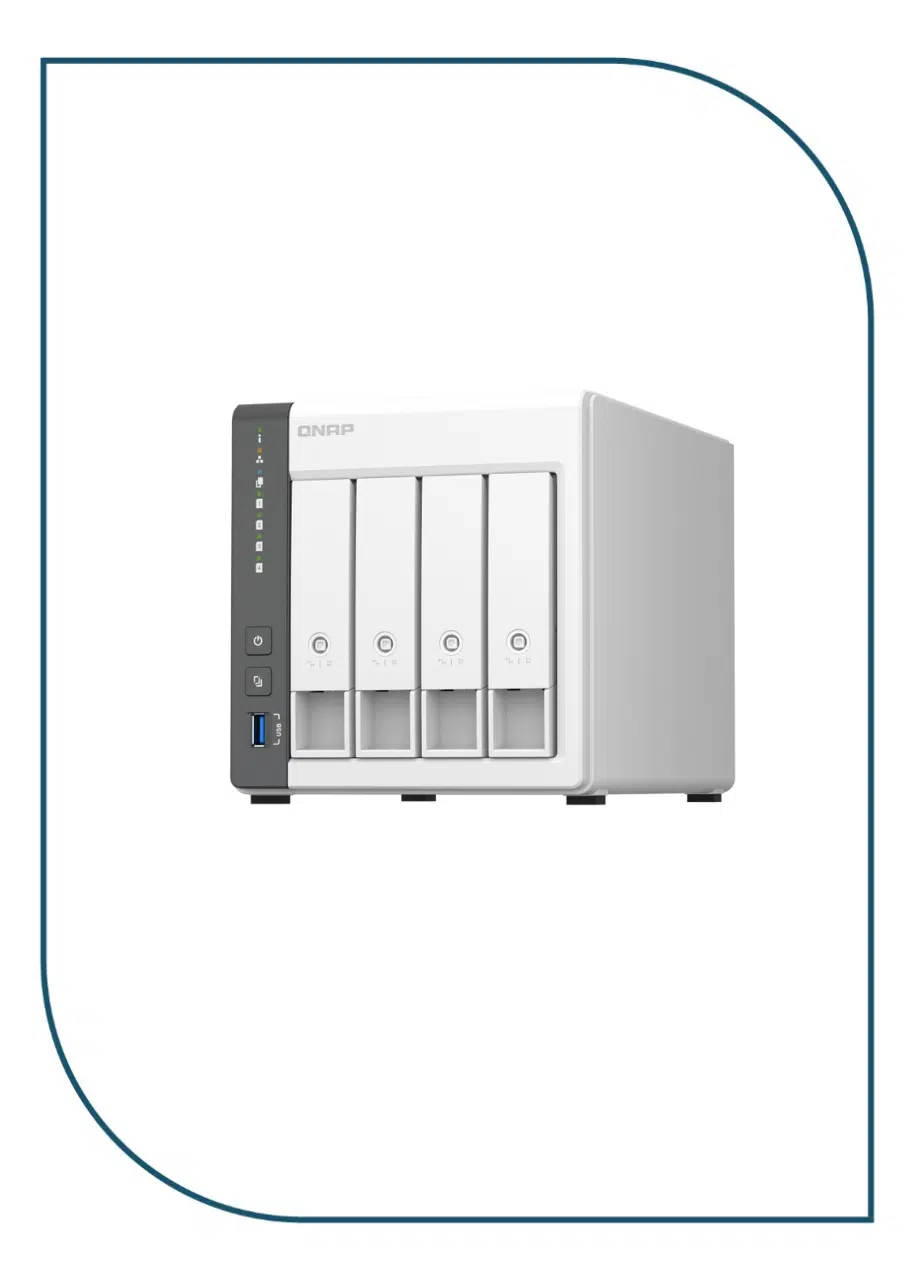

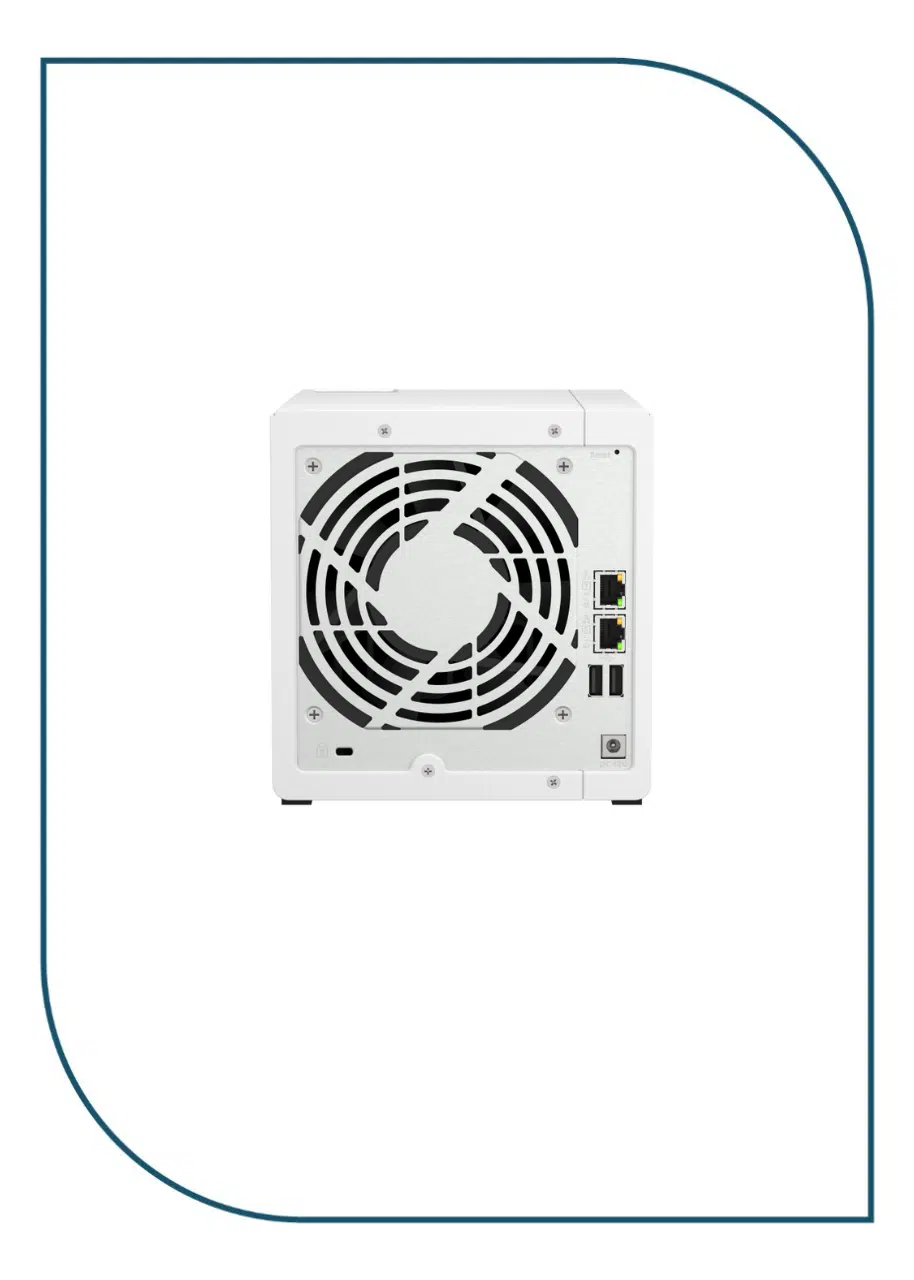

TS-433-4G-US
key features:
-
4-bay NAS enclosure (diskless)
-
4GB RAM for smooth multitasking
-
Ideal for home and small business use
-
Cloud-based file storage and sharing
-
Secure backup and data synchronization
-
Remote access with QNAP QTS system
-
Energy-efficient and reliable design
Technical Specifications:
| CPU | ARM 4‑core Cortex‑A55 2.0GHz processor |
|---|---|
| CPU Architecture | 64‑bit ARM |
| Graphic Processor | Mali‑G52 |
| Floating Point Unit | — |
| Encryption Engine | — |
| Hardware‑accelerated Transcoding | — |
| Neural Processing Unit (NPU) | — |
| System Memory | 4 GB on board (non‑expandable) |
| Maximum Memory | 4 GB on board (non‑expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bays | 4 × 3.5‑inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA HDD; 2.5-inch SATA SSD |
| Hot‑swappable | — |
| LAN (RJ45) | 1 × Gigabit Ethernet (1G) |
| 2.5GbE (RJ45) | 1 × 2.5G/1G/100M |
| Wake on LAN (WOL) | — |
| Jumbo Frame | — |
| USB 2.0 | 2 × Type‑A |
| USB 3.2 Gen 1 | 1 × Type‑A |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1‑4 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (H × W × D) | 165 × 160.2 × 220.5 mm Dimensions exclude foot pad (may add up to 30 mm / 1.18 in depending on model). |
| Weight (Net / Gross) | 2.07 kg / 3.39 kg |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Storage Temperature | −20 – 70 °C (−4 – 158 °F) |
| Relative Humidity | 5 – 95% RH non‑condensing; wet bulb: 27 °C (80.6 °F) |
| Power Supply | Minimum 65 W adapter (12VDC), 100–240VAC |
| Power Consumption | Disk Standby: 8.45 W Operating (typical): 22.54 W (with drives fully populated) |
| Cooling | 1 × 120 mm fan, 12VDC |
| System Warning | Buzzer |
| Security | Kensington Security Slot |
| Standard Warranty | 2 years |
| Max CIFS Connections (with max memory) | 200 |
