Description
PWR-75-48

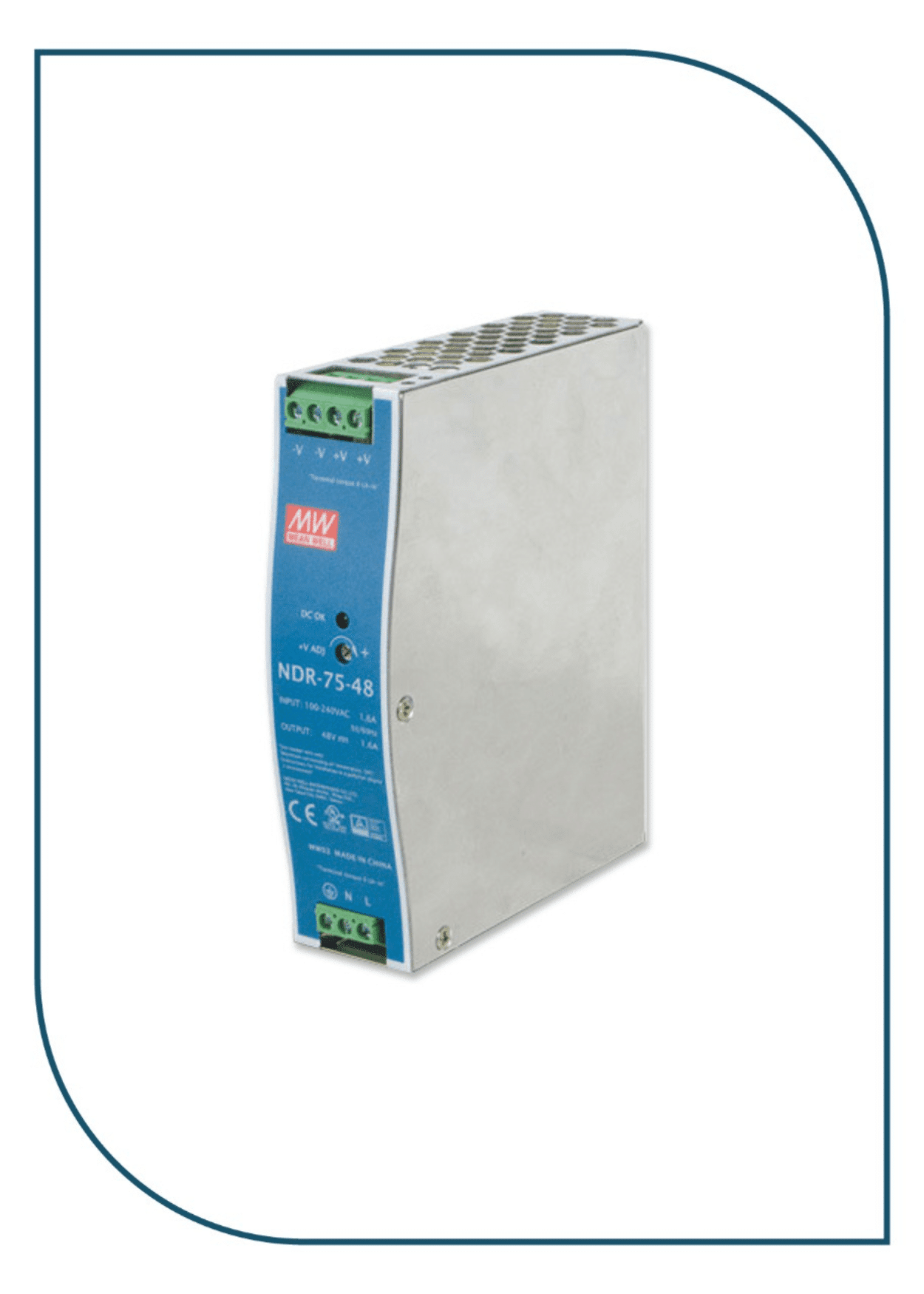

| PWR-75-48 (MEAN WELL/NDR-75-48) | |
|---|---|
| Dimensions (W x H x D) | 32 x 125.2 x 102 mm |
| Weight (kg) | 0.51kg |
| Input Voltage AC | 90-264V AC, 47~63Hz, 1.6A |
| Input Voltage DC | 127-370V DC |
| Power Output | 76.8 watts, 48V, 1.6A |
| Temperature | Operating: -20~70 degrees C (**) Storage: -40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| *Note | *The specification is for PWR-75-48 hardware version 1 only. **Please refer to output load derating curve from product specification. |
