Description
GS-6320-24UP2T2XV
Overview :
Powerful 802.3bt PoE Managed Switch with Advanced L2+/L4 Switching and Security

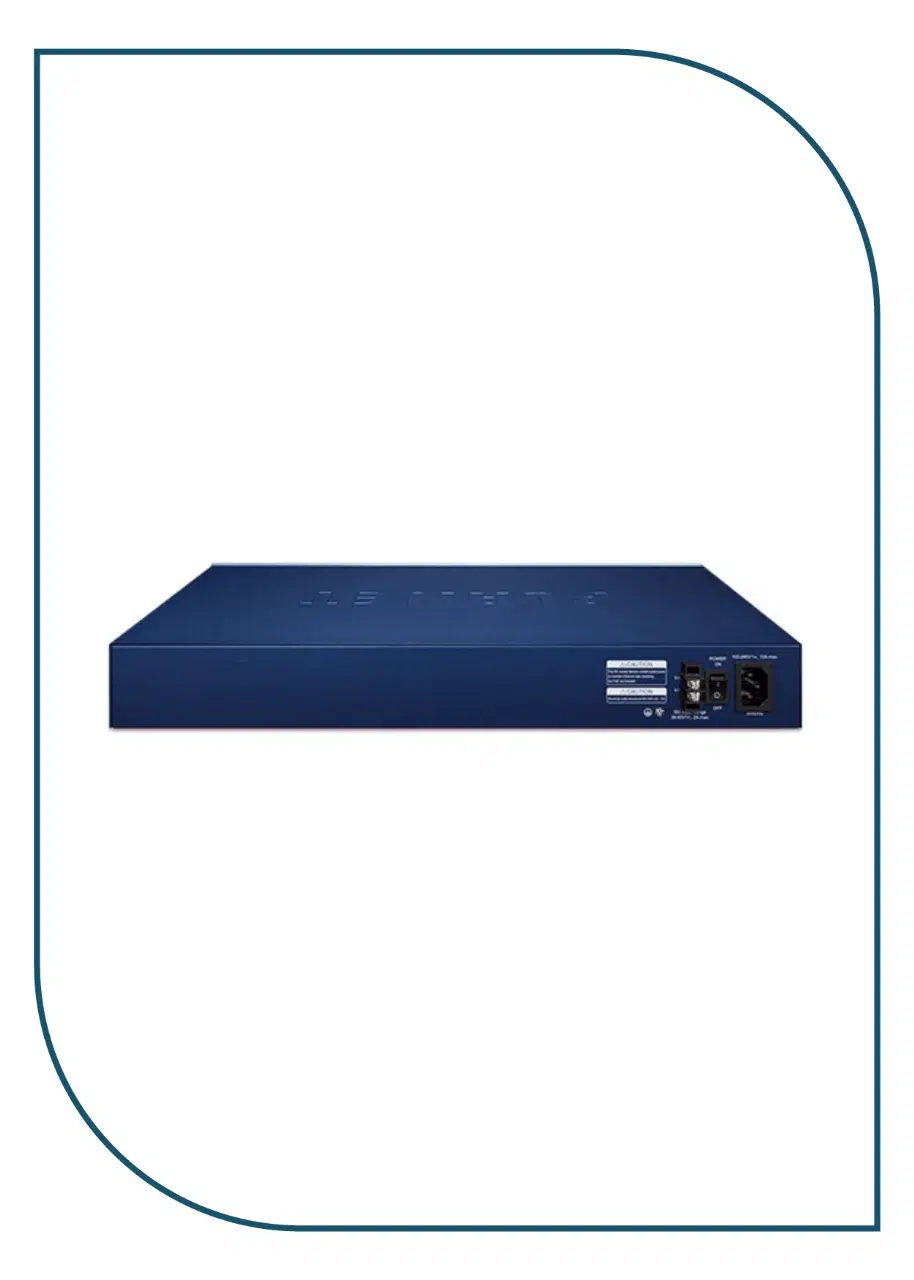

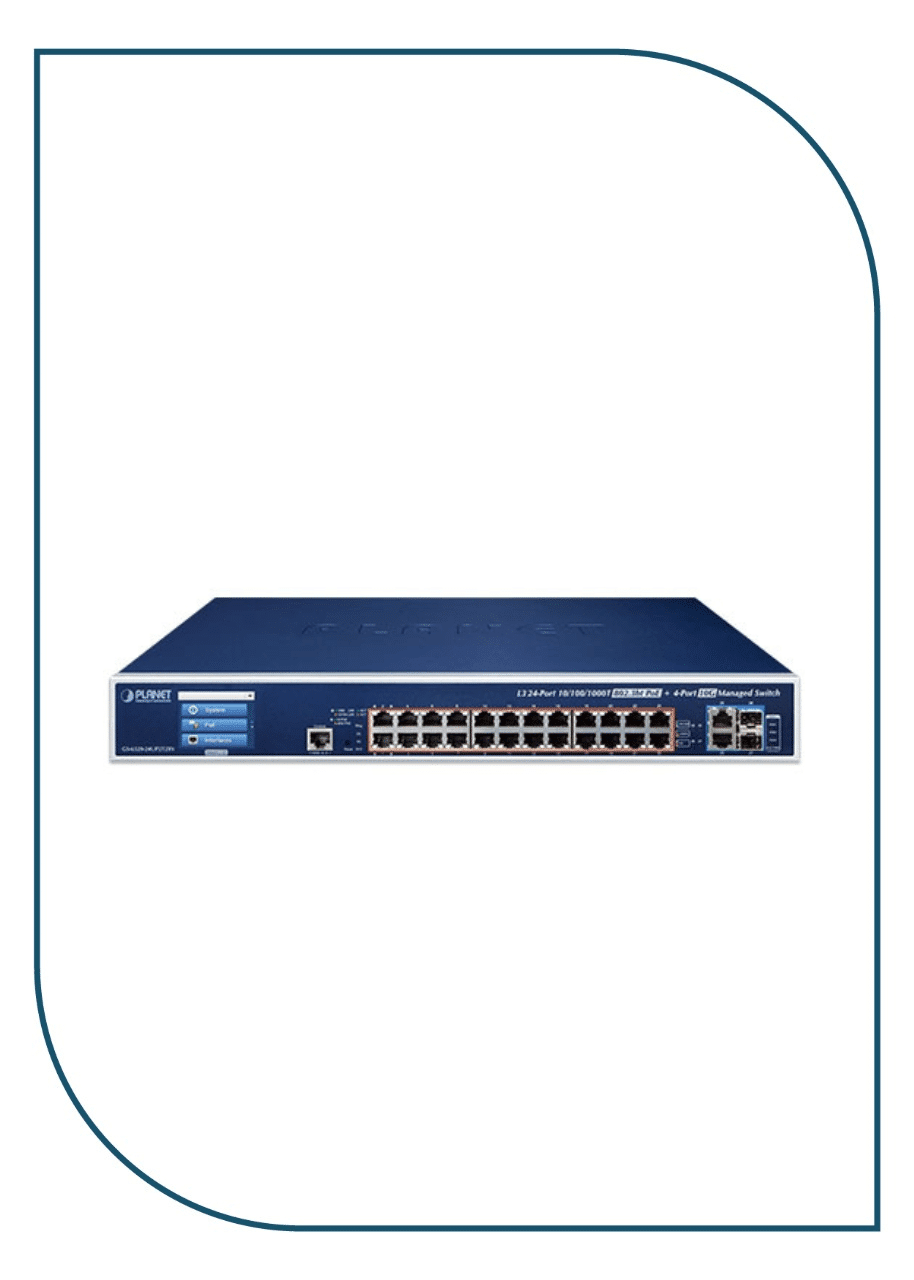

PLANET GS-6320-24UP2T2XV is a cost-optimized, 1.25 U, Gigabit 802.3bt PoE Managed Switch with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with 24 10/100/1000BASE-T 802.3bt PoE++ ports, 2 10GBASE-T RJ45 ports and 2 additional 10Gigabit SFP+ ports. With a total power budget of up to 720 watts for different kinds of PoE applications, the GS-6320-24UP2T2XV provides a quick, safe and cost-effective 802.3bt PoE network solution for small businesses and enterprises
GS-6320-24UP2T2XV Applications :
IEEE 802.3bt PoE++ Networking Solution
PLANET GS-6320-24UP2T2XV can easily build an 802.3bt PoE++ networking solution on the cyber security system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses.
The GS-6320-24UP2T2XV and POE-173S/IPOE-173S 802.3bt PoE++ Splitter operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-6320-24UP2T2XV, the POE-173S/IPOE-173S separates digital data and power into several optional outputs (12 V, 19 V or 24 V DC) to non-PoE devices such as laptops, thin client, POS system, PTZ (pan, tilt & zoom) network cameras, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
Optimal Redundant Ring for Faster Recovery of Managed Network
The GS-6320-24UP2T2XV supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 50ms to quickly bring the network back, thus enabling the management network to keep on operating.
