Description

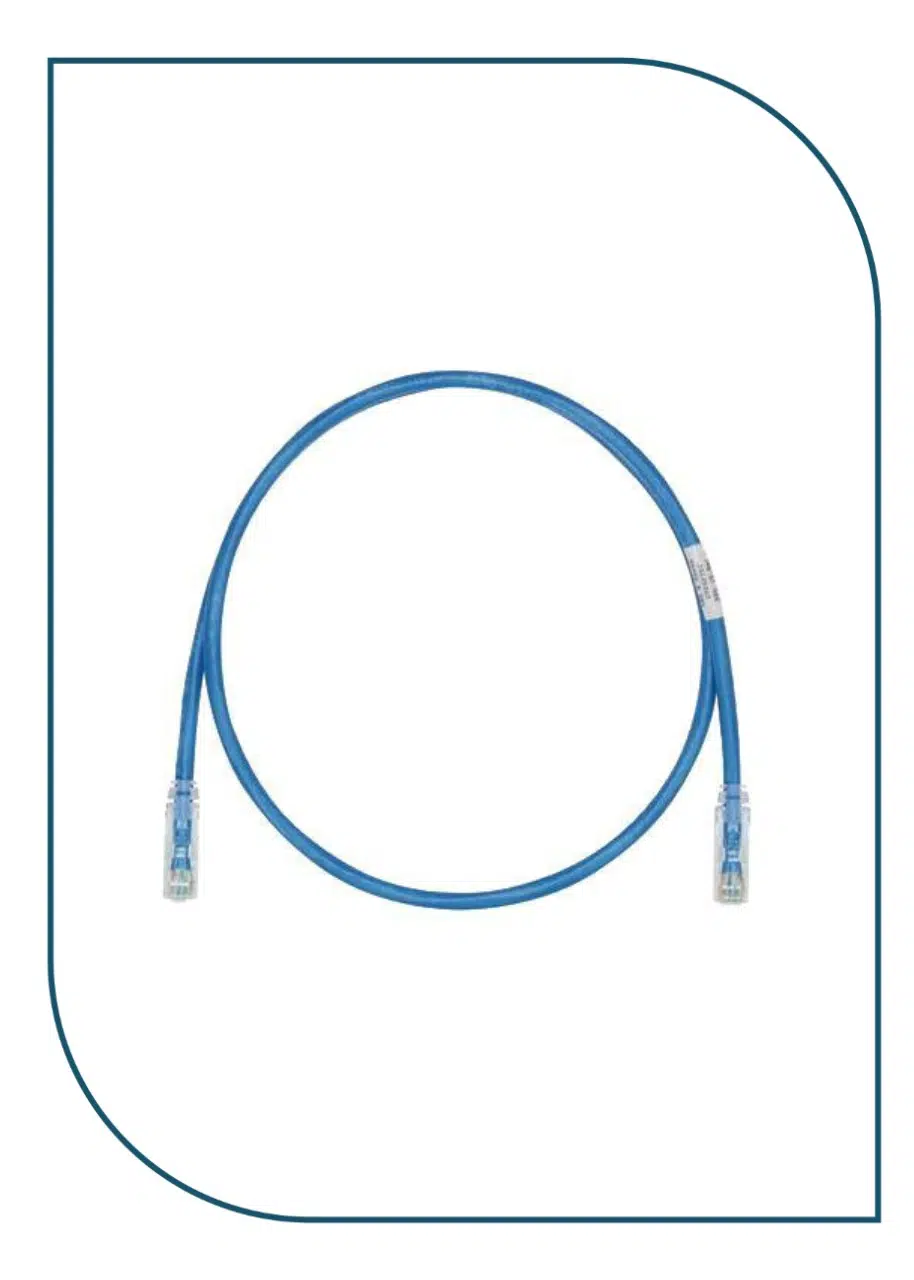

The Panduit UTP28SP1MBU TX6-28™ is a premium Category 6 28 AWG U/UTP patch cord engineered for high-density networking environments where space, airflow, and cable management are critical. Its ultra-slim 3.8 mm cable diameter allows higher cable density while improving airflow inside network cabinets and reducing congestion in cable pathways.
Factory-terminated with high-performance RJ45 connectors featuring 50-microinch gold-plated contacts, the patch cord provides reliable Gigabit Ethernet connectivity up to 250 MHz. The patented tangle-free latch prevents snagging during installation and maintenance, while RapidID™ compatibility enables faster cable identification and infrastructure management.
Designed for modern enterprise networks, the UTP28SP1MBU supports Gigabit Ethernet, VoIP, wireless access points, IP surveillance, and Power over Ethernet (PoE/PoE+/PoE++) applications. Its dual-rated CM/LSZH jacket makes it suitable for commercial buildings, data centers, telecommunications rooms, and structured cabling installations requiring both performance and safety.
| Specification | Details |
|---|---|
| Model | UTP28SP1MBU |
| Brand | Panduit |
| Product Series | TX6-28™ |
| Product Type | Cat6 UTP Patch Cord |
| Cable Category | Category 6 (Cat6) |
| Conductor Size | 28 AWG |
| Conductor Type | Stranded Copper |
| Cable Construction | U/UTP (Unshielded Twisted Pair) |
| Cable Length | 1 Meter |
| Connector Type | RJ45 (8P8C) to RJ45 (8P8C) |
| Wiring Standard | T568B |
| Jacket Material | Dual Rated CM / LSZH |
| Cable Color | Blue |
| Cable Diameter | Approximately 3.8 mm |
| Performance | Up to 250 MHz |
| Ethernet Support | 10/100/1000BASE-T Gigabit Ethernet |
| PoE Support | IEEE 802.3af, 802.3at & 802.3bt Compatible |
| Plug Contacts | 50 µin Gold-Plated Contacts |
| Mating Cycles | Up to 2,500 |
| Latch Design | Patented Tangle-Free Latch |
| RapidID™ Ready | Yes |
| Operating Temperature | -10°C to +75°C |
| Standards Compliance | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801 Class E, IEC 60603-7 |
| Applications | Patch Panels, Switches, Routers, Servers, Data Centers, Enterprise Networks, IP Phones |
