Description
The Panduit PUO6C04 TX6™ Category 6 Outdoor Copper Cable is a premium outdoor-rated U/UTP cable engineered for high-performance Ethernet installations exposed to harsh environmental conditions. Built with four twisted pairs of 23 AWG solid bare copper conductors, it delivers reliable Gigabit Ethernet performance up to 250 MHz while maintaining excellent signal integrity over long cable runs.
Designed specifically for Outside Plant (OSP) applications, the cable features a UV-resistant black polyethylene (PE) jacket that protects against sunlight, moisture, abrasion, and environmental wear. Its flooding compound helps prevent water migration, making it suitable for outdoor conduit installations, campus networks, industrial facilities, security systems, and building-to-building network connections.
The cable fully supports Gigabit Ethernet and IEEE 802.3af/at/bt Power over Ethernet (PoE) applications, making it ideal for IP cameras, wireless access points, VoIP systems, and other network devices requiring reliable outdoor connectivity. Manufactured to ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, it provides dependable performance for professional structured cabling projects.
| Specification | Details |
|---|---|
| Model | PUO6C04 |
| Brand | Panduit |
| Product Series | TX6™ |
| Product Type | Outdoor Copper Network Cable |
| Cable Category | Category 6 (Cat6) |
| Cable Construction | U/UTP (Unshielded Twisted Pair) |
| Number of Pairs | 4 Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Cable Length | 305 Meters (1000 ft) |
| Jacket Material | UV-Resistant Polyethylene (PE) |
| Jacket Color | Black |
| Installation Type | Outdoor (OSP – Outside Plant) |
| Bandwidth | Up to 250 MHz |
| Characteristic Impedance | 100 Ohms |
| Ethernet Support | 10BASE-T, 100BASE-TX, 1000BASE-T Gigabit Ethernet |
| PoE Support | IEEE 802.3af, 802.3at & 802.3bt |
| Water Protection | Flooding Compound for Moisture Resistance |
| UV Resistance | Yes |
| Abrasion Resistance | Yes |
| Operating Temperature | -40°C to +80°C |
| Installation Temperature | -30°C to +60°C |
| Cable Diameter | 6.7 mm |
| Standards Compliance | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801 Class E |

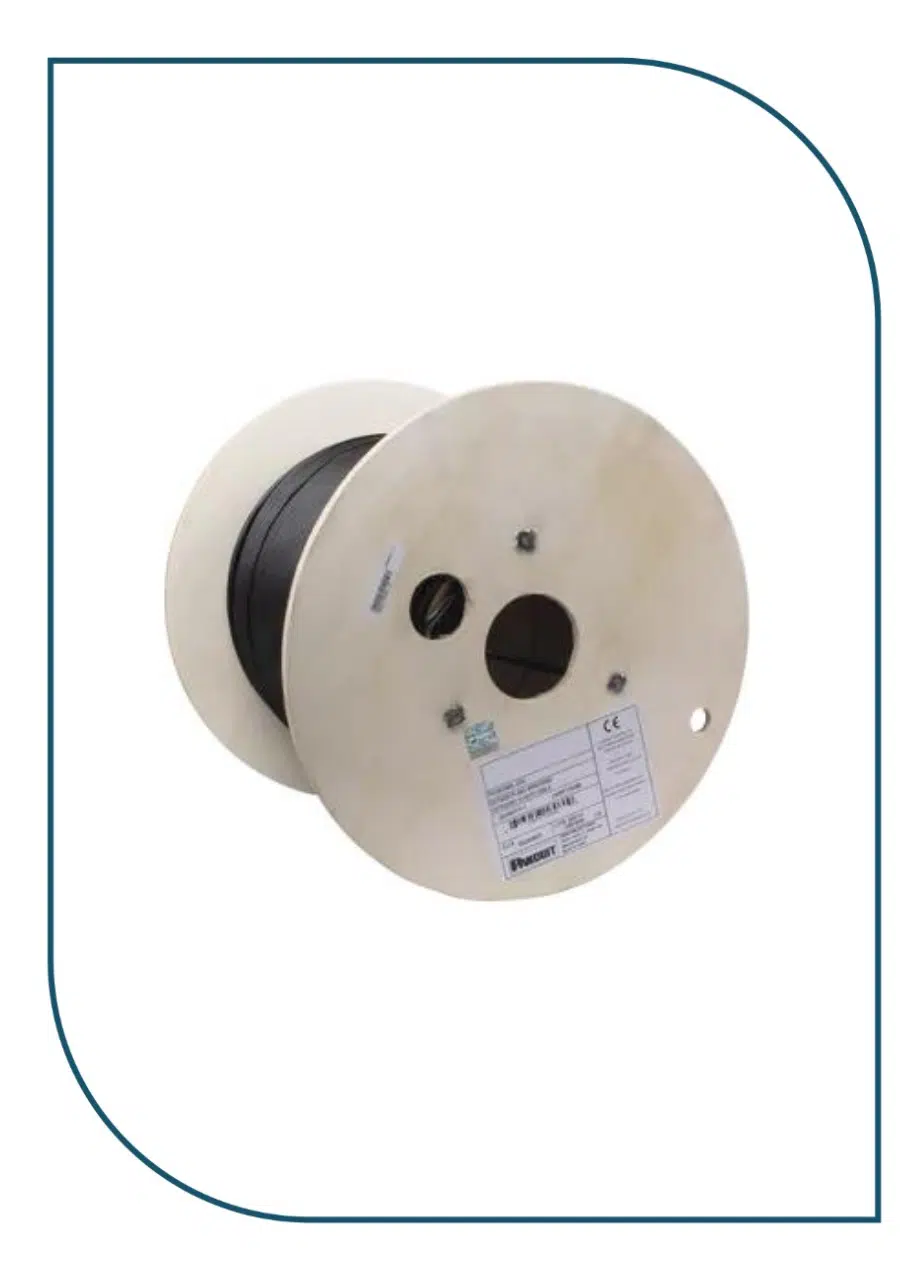

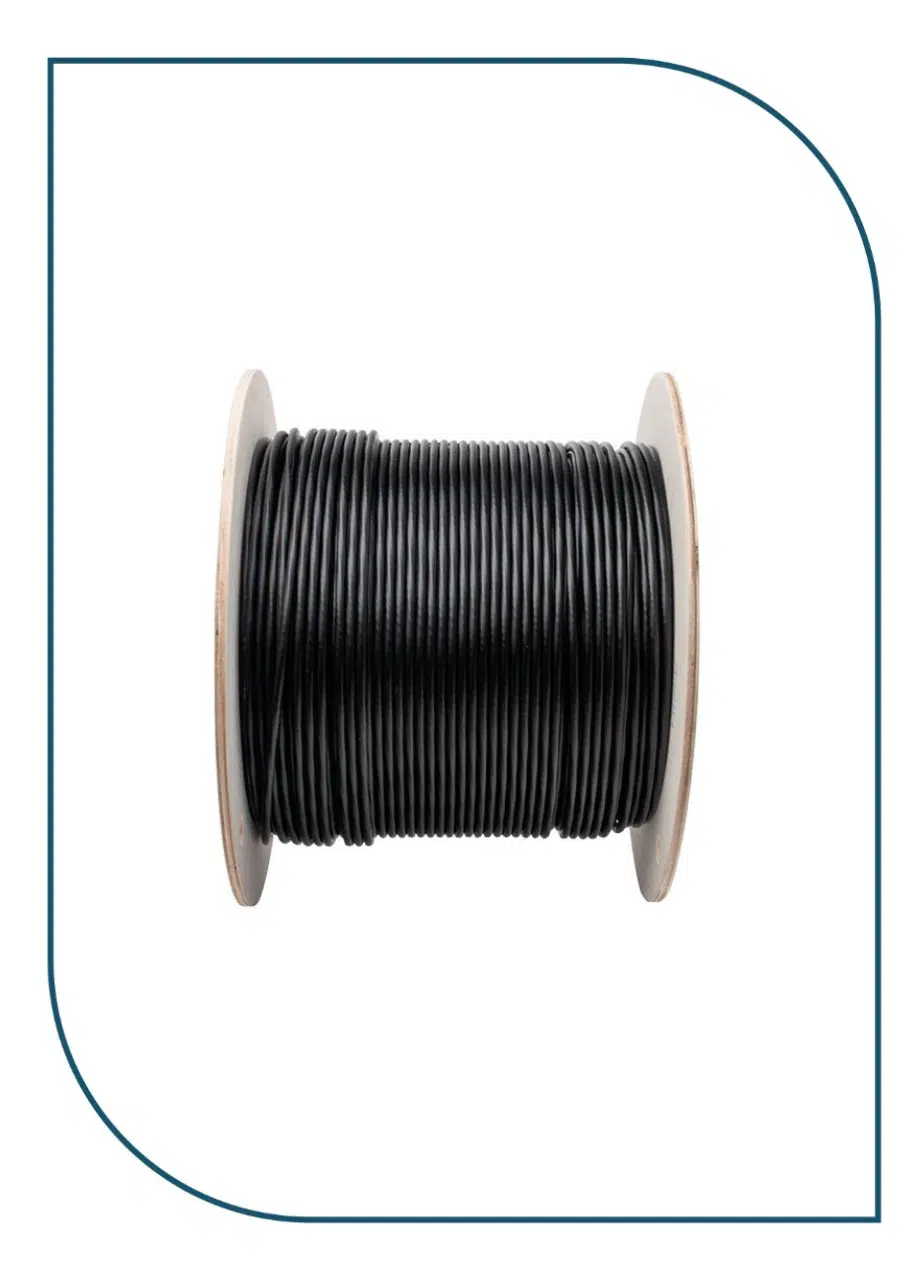

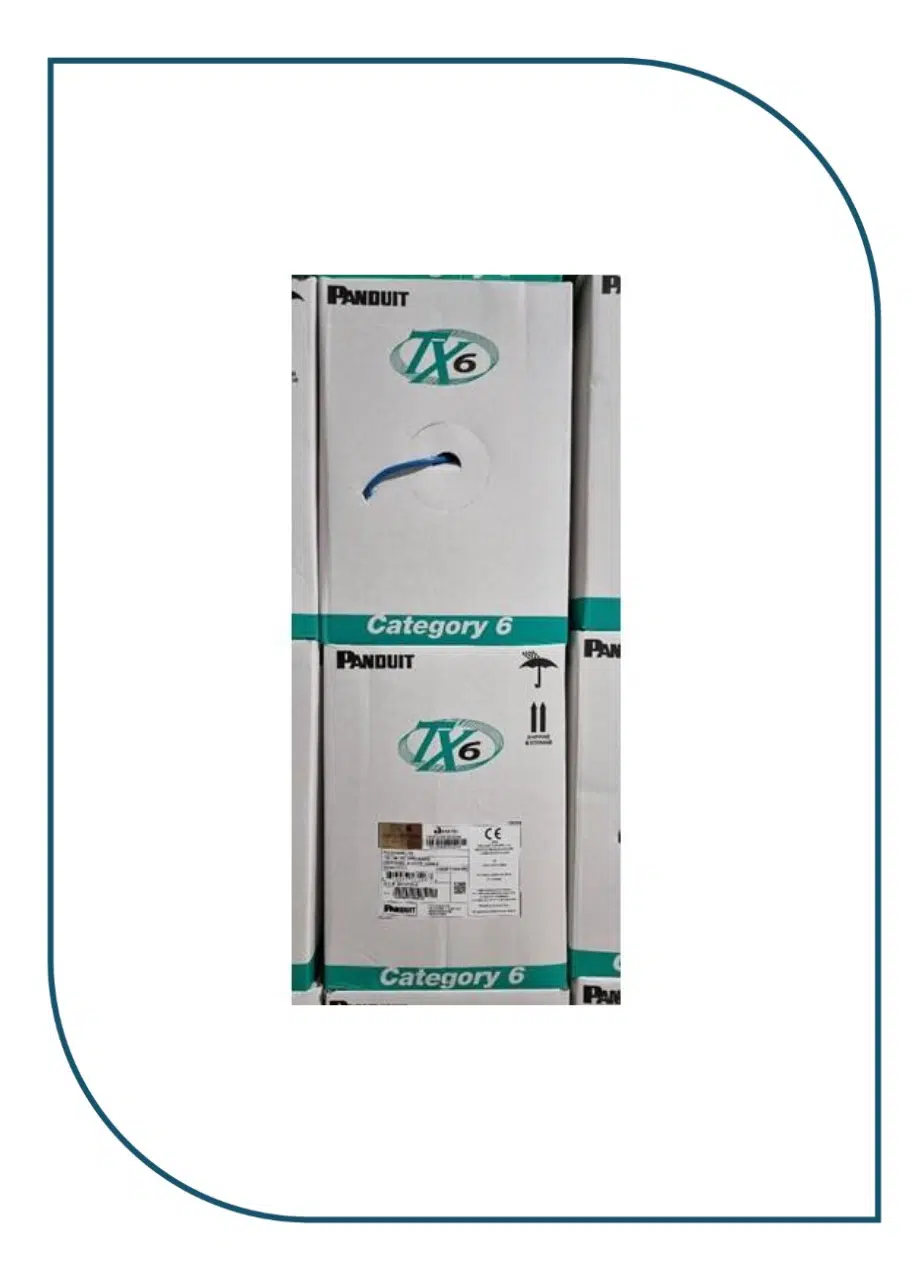

| Packaging | 305 m Reel / Easy Pay-Out Box (varies by part suffix) |
| Applications | Outdoor LAN Cabling, Campus Networks, IP Cameras, Wireless Access Points, Building-to-Building Links |
