Description
NVR308-64R-B

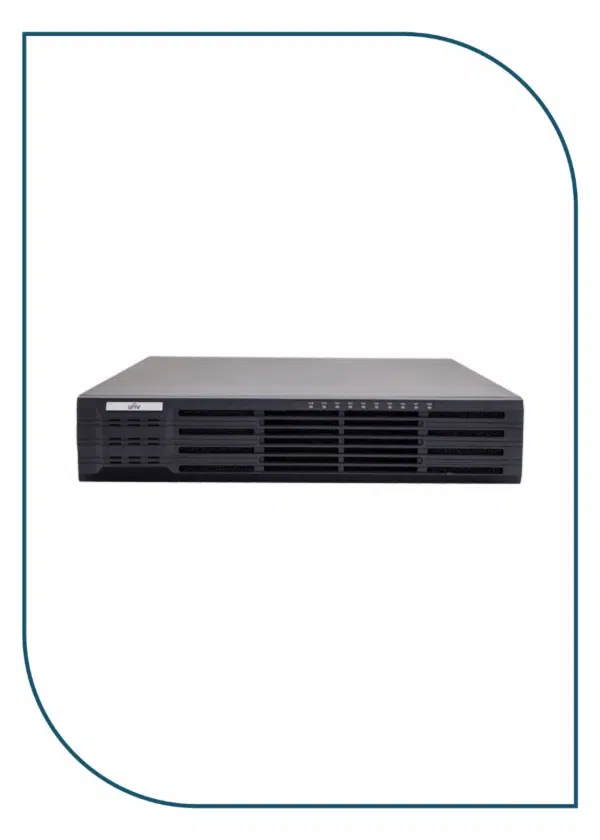

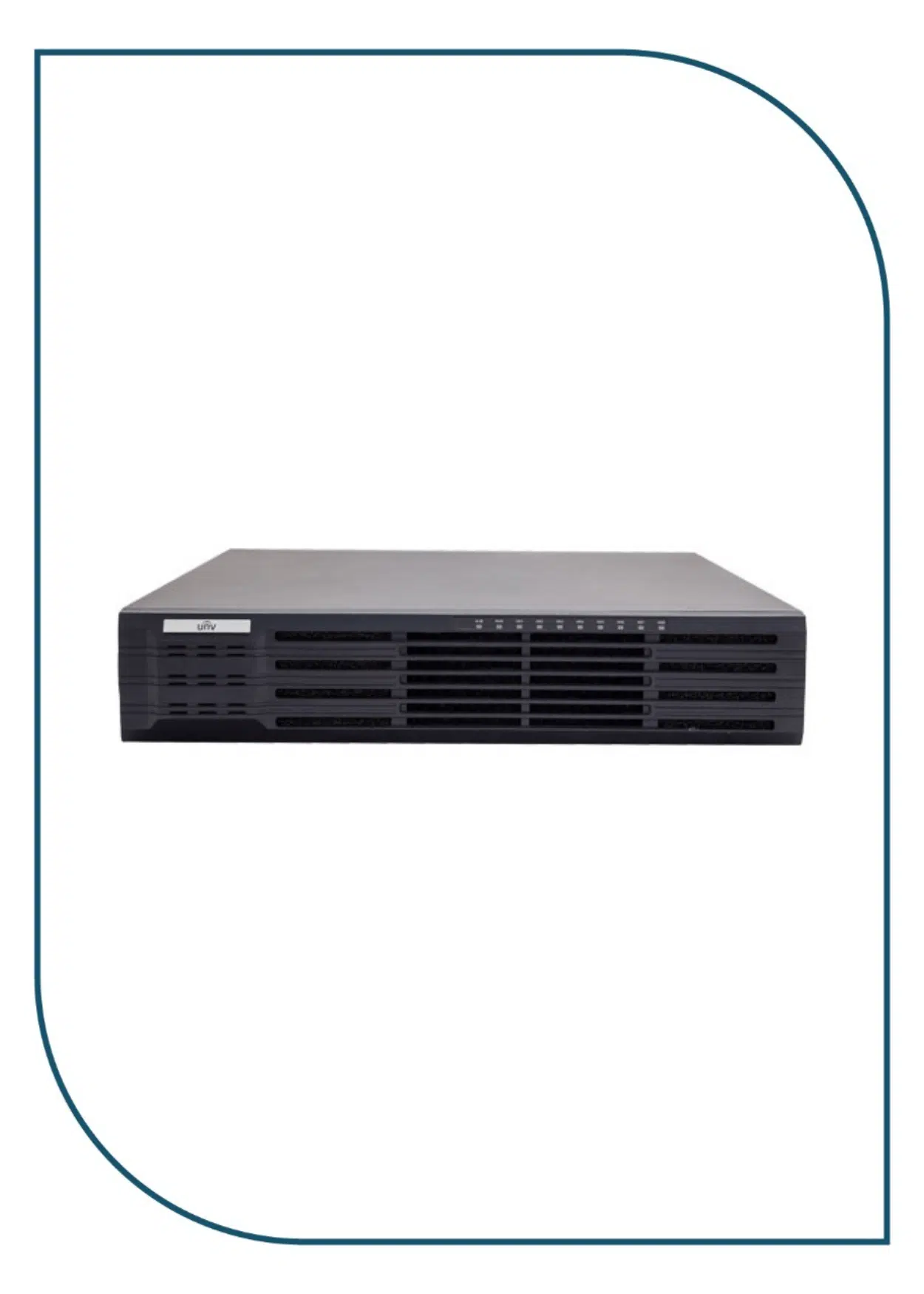

The Uniview NVR308-64R-B is a high-performance Network Video Recorder (NVR) designed for large-scale surveillance systems.
Key Features:
- Channel Support: Manages up to 64 IP cameras simultaneously.
- Recording Resolution: Supports recording up to 12 megapixels (12MP), ensuring high-definition video capture.
- Compression Formats: Compatible with Ultra H.265, H.265, and H.264 video compression standards, optimizing storage and bandwidth usage.
- PoE Ports: Equipped with 16 independent Power over Ethernet (PoE) ports, facilitating easy camera connections and power supply over a single cable.
- Storage Capacity: Features eight SATA hard drive bays, each supporting up to 10TB, allowing for a total storage capacity of up to 80TB.
- RAID Support: Supports RAID 0, 1, 5, 6, and 10 configurations, enhancing data redundancy and reliability.
- Video Outputs: Provides two HDMI outputs (up to 4K resolution) and one VGA output, with independent outputs for HDMI1/VGA and HDMI2.
- Protocols Supported: Compatible with ONVIF profiles S, G, and T, ensuring interoperability with a wide range of IP cameras.
- Additional Features:
- Supports fisheye dewarping for panoramic camera views.
- Includes Automatic Network Replenishment (ANR) technology to enhance storage reliability during network disconnections.
- Supports cloud firmware upgrades for easy maintenance.
Technical Specifications:
- Bandwidth: Incoming and outgoing bandwidth of 320 Mbps each.
- Remote Access: Supports up to 128 remote users.
- Audio: Supports one-way audio input via RCA.
- Dimensions: Rack-mountable design with dimensions of 442 x 531 x 86 mm.
The NVR308-64R-B is ideal for enterprises and large facilities requiring robust surveillance solutions with high-resolution recording, extensive storage, and reliable performance.
