Description

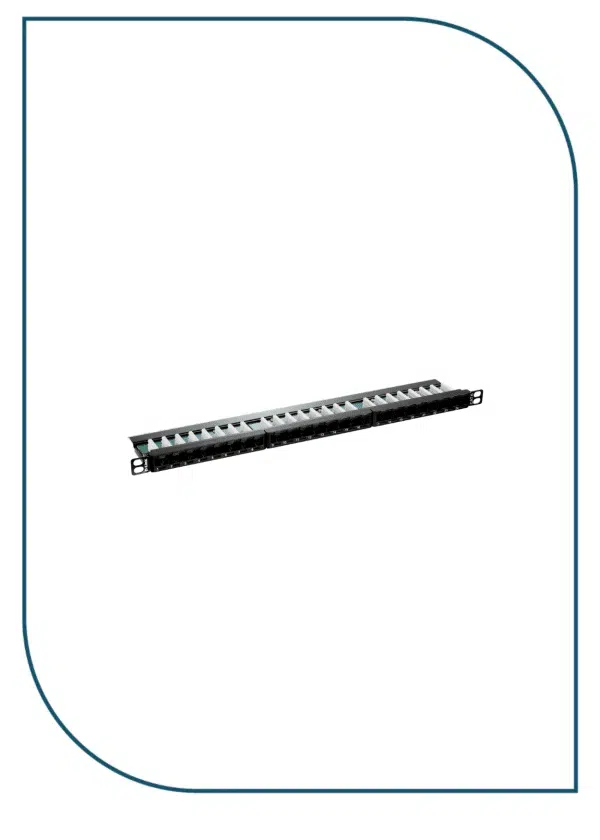

NPP-C61BLK243
- High density 24 port 0.5U patch panel
- Eight Port RJ45 modules applied
- ID stripes for identifying port allocations
- IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools
- Mounts in standard 19” racks
- The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 -1 standard
SPECIFICATION
1. Panel: SPCC, 1.5mm thickness with Black (RAL 9005) color painted
2. Faceplate: ABS, UL 94-HB, with black color
3. RJ45 Jack:
- Housing: PBT+ Glass Fiber, UL 94V-0
- Contact Brackets: PBT+ Glass Fiber, UL 94V-2
4. RJ45 Jack Contact:
- Material: Phosphor Bronze with Nickel Plated
- Finish: 50 micro-inches Gold plated on plug contact area
5. Dust Cover: Polycarbonate UL 94V-0
6. IDC:
Housing: PC+ Glass Fiber, UL 94V-2
Terminal: phosphor Bronze with Tin plated
7. PCB: FR4, UL 94V-0
