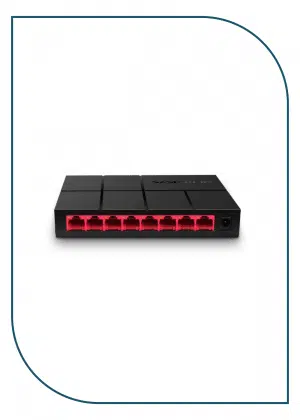

MERCUSYS 8-Port 100/1000Mbps Desktop Ethernet Switch/Hub

MS108G

• Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
• Easily wired network expansion
• Compact design for flexible arrangement
• Plug and play setup, no configuration required
• Green Ethernet technology saves power by up to 82%

Hardware

Dimensions

127 x 60.3 x 22 mm

Interfaces

8 10/100/1000Mbps Ports, Auto-Negotiation,
Auto-MDI/MDIX

External Power Supply

9V/0.6A

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates

10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex

Buffer Capacity

64KB

Jumbo Frame

16 KB

LED

Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

Software

Transfer Method

Store and Forward

Others

Package Contents

• 8-Port 10/100/1000Mbps Desktop Switch (MS108G)
• Power Adapter
