Description

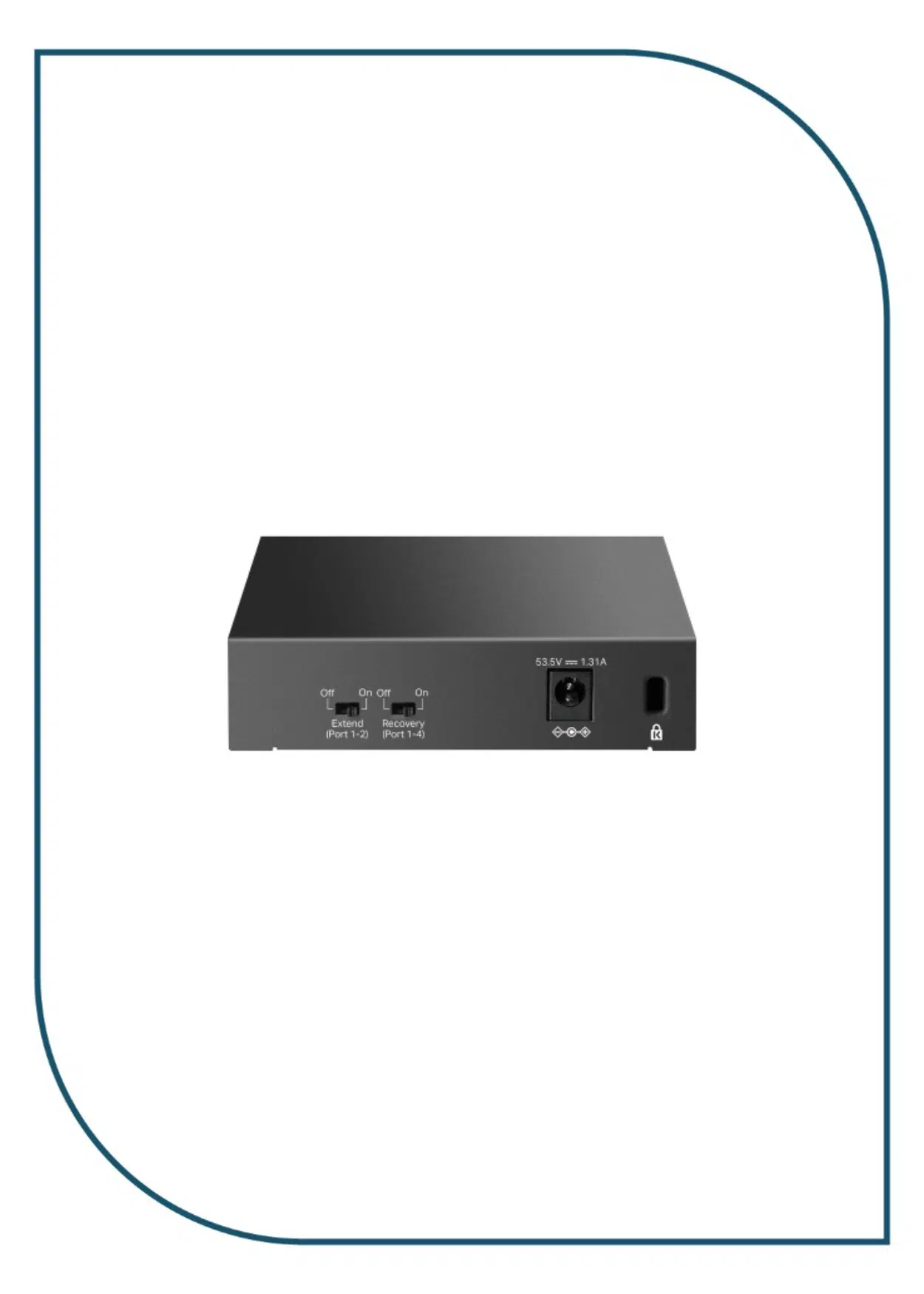

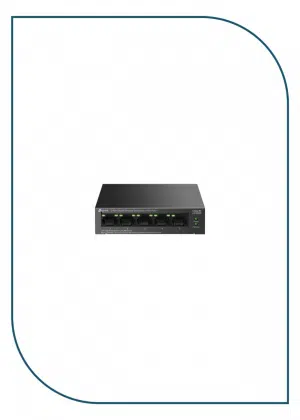

LS105GP
specs :
HARDWARE FEATURES |
|
|---|---|
| Interface | • 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)
• AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop
• Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4, up to 30 W PoE output per port • Power Supply: 65 W |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max Power Consumption | • 4 W (220/50 Hz. no PD connected)
• 74.46 W (220/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | • 13.6 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 16 KB |
SOFTWARE FEATURES |
|
|---|---|
| Advanced Features | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
PoE Auto Recovery Button (Ports 1-4) Compatible With IEEE 802.3af/at Compliant PDs •Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping • Green Technology |
| Transfer Method | Store-And-Forward |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • LS105GP
•Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
