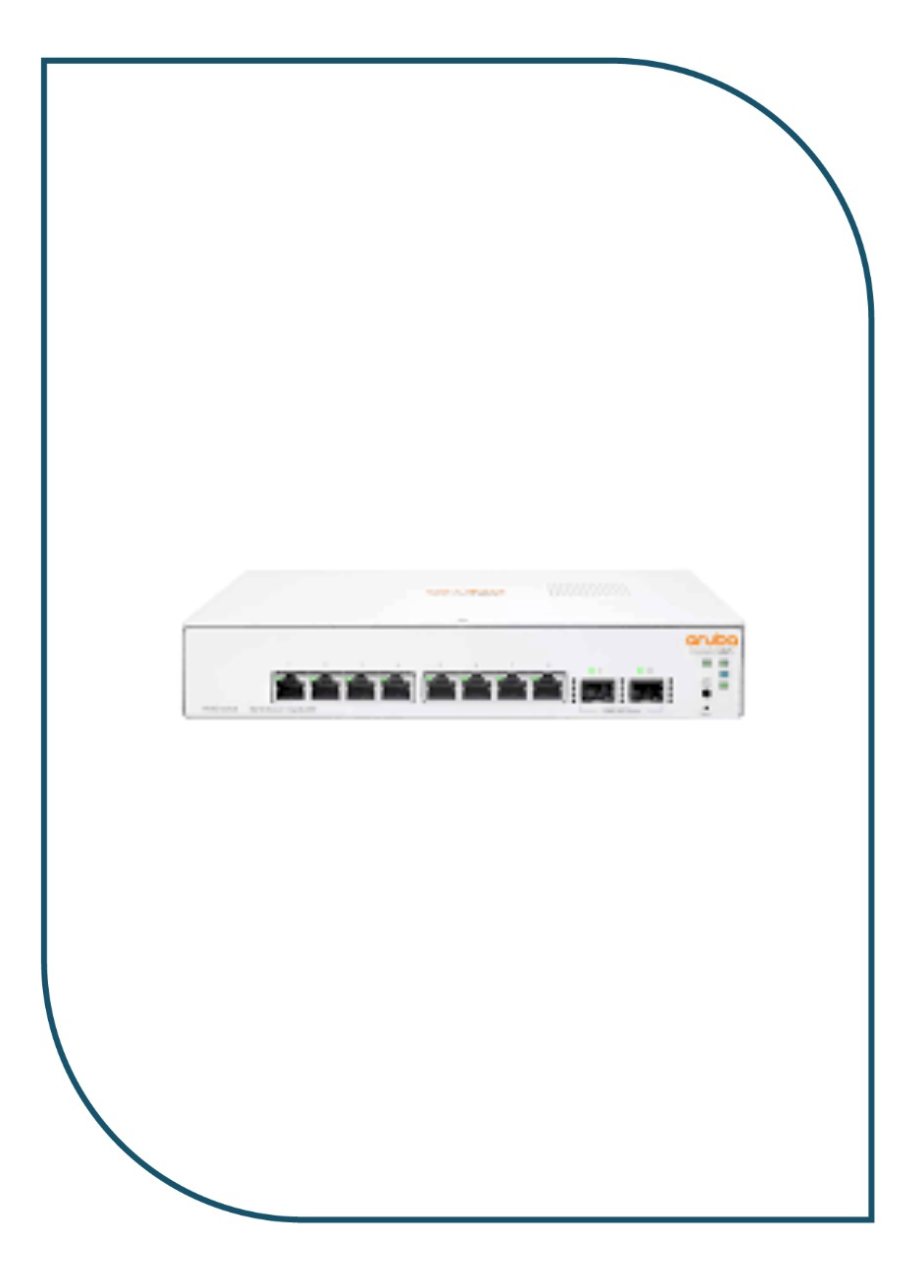

JL680A

DatasheeT

Differentiator Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 and 2 SFP 1GbE ports.

Power consumption11.0 W maximum, 6.2 W idle

Input voltage100 – 240 VAC

Ports8 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports

Switching capacity20 Gbps

Throughput14.88 Mpps, maximum

Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer

Management features Aruba Instant On Portal, Web browser, SNMP Manager

Warranty Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration

Weight0.82 kg (2.55 lb)

Dimensions4.39 x 25.4 x 15.95 cm (1.73 x 10 x 6.28 in)
