ISW-514PTF Planet Industrial DIN-Rail Unmanaged POE Switch

Description

ISW-514PTF

A Perfect Full PoE+ Power Solution Ideal for Hardened Environment

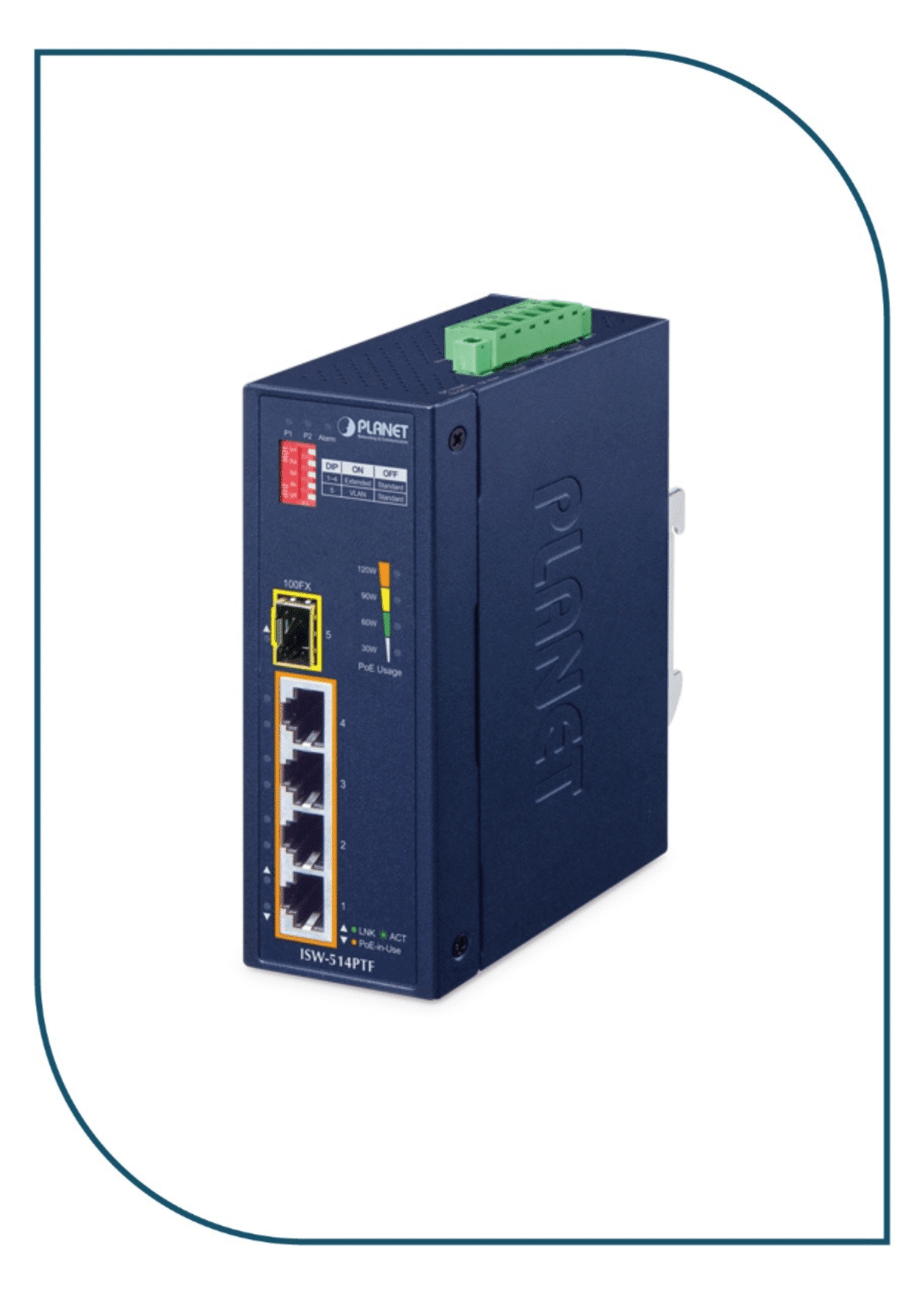

With Plug and Play design, PLANET ISW-514PTF Industrial-grade, DIN-rail type Unmanaged Fast Ethernet PoE+ Switch, featuring 4 IEEE 802.3at PoE+10/100BASE-TX ports and 1 additional 100BASE-FX fiber optic interface for uplink connection, allows to automatically detect and configure internal and external peripherals. With rugged IP40 metal housing and redundant power system for total power budget of up to 120 watts for different kinds of PoE applications, the ISW-514PTF also operates efficiently in harsh environments, with an operating temperature range of -40 to 75 degrees Celsius.

In response to the growing demand for IIoT (Industrial Internet of Things) infrastructure, the ISW-514PTF is designed for easy deployment of industrial networks with its Plug and Play capability. Furthermore, it ensures stable and reliable fast data and power transmission.

The ISW-514PTF also supports PROFINET traffic pass-through with QoS, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting.

PROFINET Traffic Pass-through with QoS

The ISW-514PTF features a brand-new function that enhances support for recognizing the PROFINET traffic for higher delivery priority. Once the ISW-514PTF receives the PROFINET traffic, it will forward the PROFINET traffic first, and then handle other Ethernet traffic. With this enhanced function, the ISW-514PTF will become the ideal Industrial Unmanaged Switch for the faster PROFINET traffic.

Industrial-grade PoE+ Switch for Building Automation and Security

Suitable for buildings where security is strictly enforced, the ISW-514PTF, with four Fast Ethernet 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the ISW-514PTF makes the installation of IP cameras or wireless APs easier and more efficient.

Perfect Integration Solution for IP PoE Camera and NVR System

The ISW-514PTF provides four 10/100BASE-TX 802.3at PoE+ ports which can offer sufficient PoE power to 4 PoE IP cameras at the same time. In addition, with the 100BASE-FX interfaces, the ISW-514PTF can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the ISW-514PTF facilitates the recorded video files from the 4 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The ISW-514PTF undoubtedly brings an ideal secure surveillance system at a lower total cost.

ISW-514PTF Key Features

Physical Port

• 4 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports (Ports 1 to 4)
• 1 100BASE-FX SFP interface

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 4 ports of IEEE 802.3af/at devices powered
• Up to 120-watt PoE budget
• Supports PoE power up to 36 watts for each PoE port
• Each port supports 54V DC power to PoE powered device
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m in standard mode with 250m in extend mode

Switching

• Hardware-based 10/100Mbps (half/full duplex), auto-negotiation and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• PROFINET traffic pass-through with QoS
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 1K MAC address table size
• IEEE 802.1Q VLAN transparency
• Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 25-watt PoE transmission distance of 250m at speed of 10Mbps (Only for Ports 1 to 4)
• Automatic address learning and address aging

Industrial Case and Installation

• IP40 metal case
• DIN-rail, wall-mount design or side wall-mount design

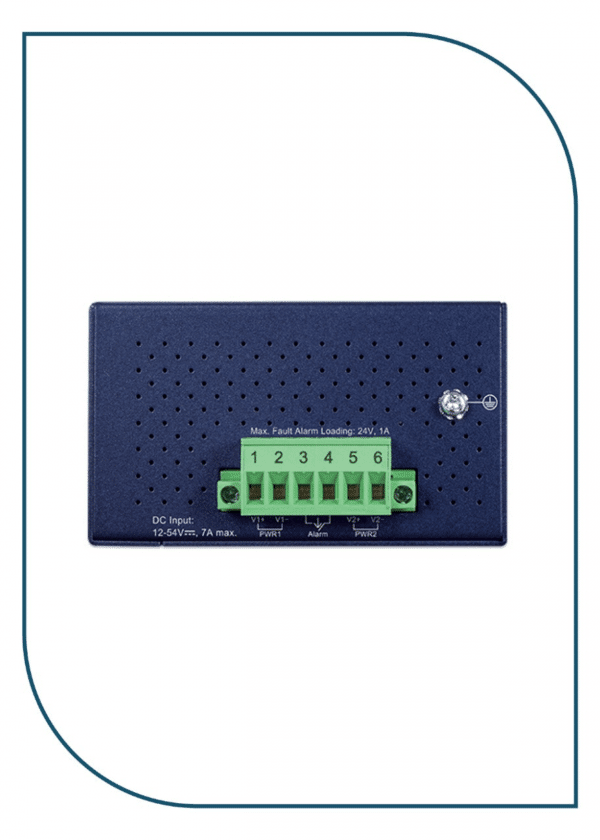

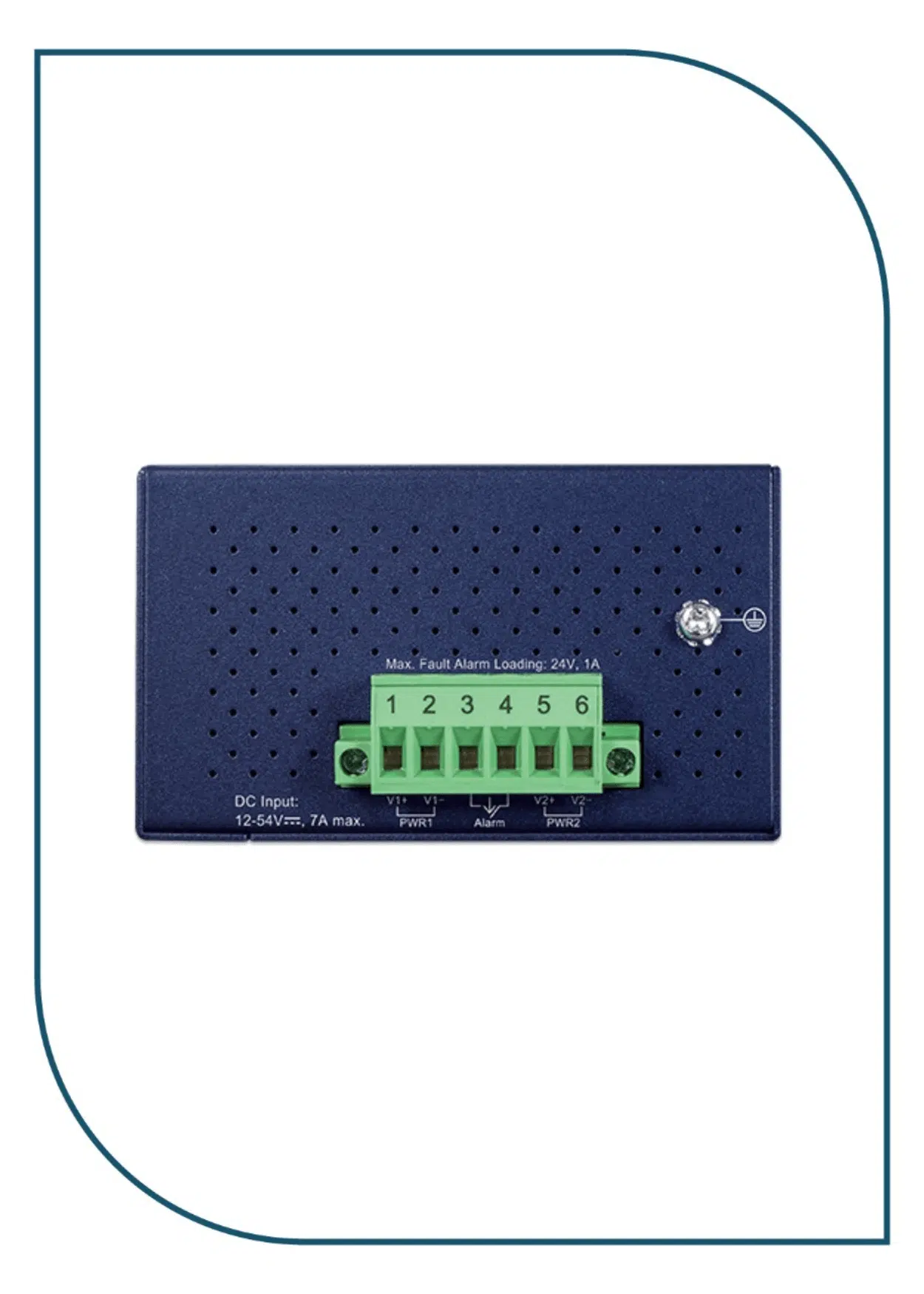

• One terminal block for master and slave power input (Power Range: 12 ~54V DC redundant power)
• 12~54V DC redundant power with reverse polarity protection
• Fault alarm for power input failed
• 4 real-time PoE power usage indicators
• Supports 5KV DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
