Description

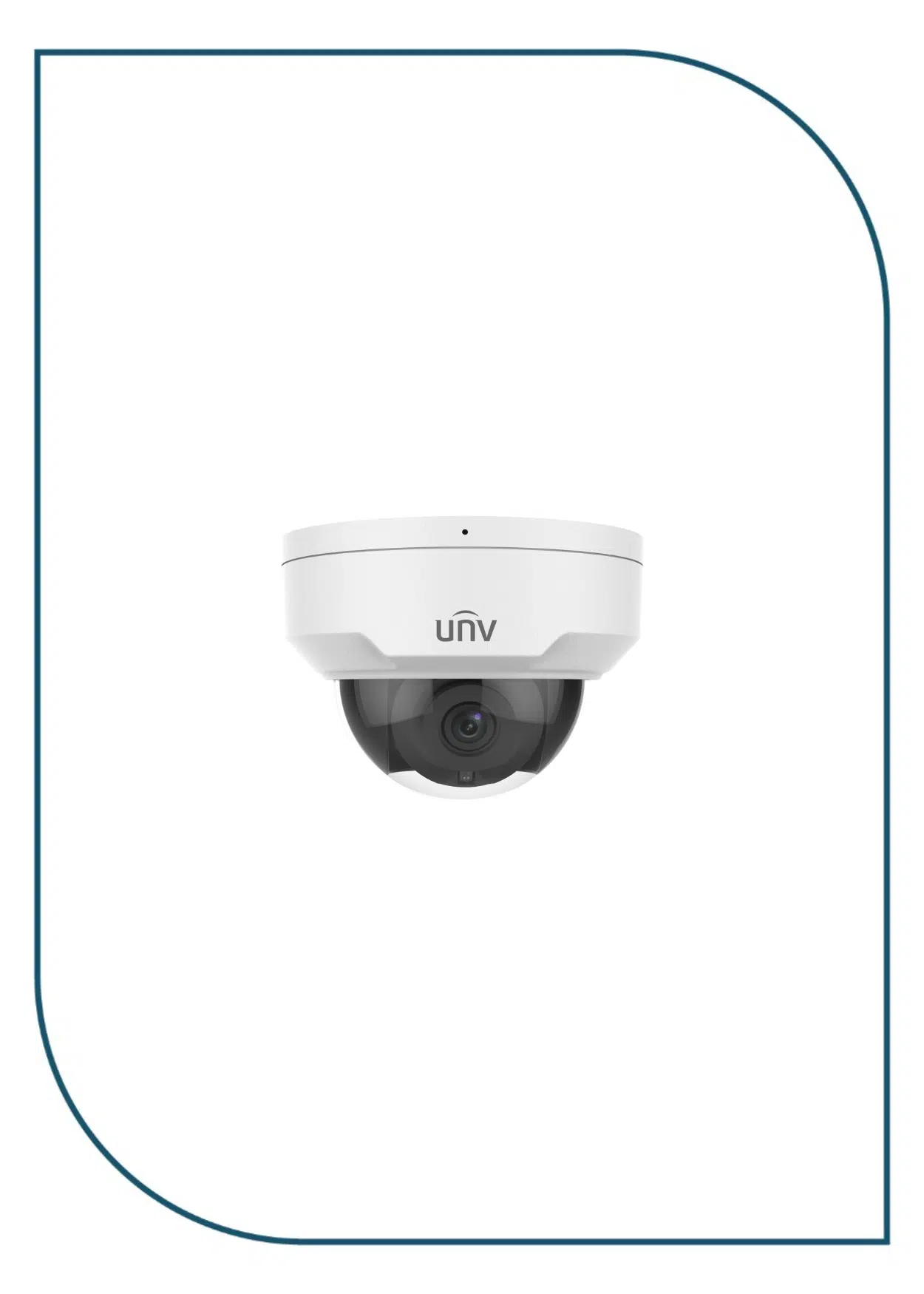

IPC322LB-ASF28k-A
Key Features:
- High-Resolution Imaging: Equipped with a 1/2.9″ CMOS sensor, it delivers clear images at 2MP (1920×1080) resolution at 30/25 frames per second (fps).
- Advanced Video Compression: Supports Ultra H.265, H.265, and H.264 compression standards, optimizing storage and bandwidth usage.
- Built-in Microphone: Features an integrated microphone for audio recording capabilities.
- Smart IR Technology: Provides infrared illumination up to 30 meters (98 feet), ensuring effective night-time surveillance.
- Day/Night Functionality: Includes an IR-cut filter with automatic switching (ICR) to maintain image quality across varying lighting conditions.
- Digital Noise Reduction: Utilizes 2D/3D DNR (Digital Noise Reduction) to enhance image clarity in low-light environments.
- Local Storage Support: Supports micro SD cards for local storage options.
- Power Options: Operates on DC12V or Power over Ethernet (PoE) (IEEE 802.3af) for flexible installation.
- Durability: Boasts IP67-rated weatherproofing and IK10-rated vandal resistance, making it suitable for various environmental conditions.
- Adjustable Mounting: Offers 2-axis adjustment (pan: 0° ~ 355°, tilt: 0° ~ 75°) for flexible installation and optimal coverage.
Specifications:
- Lens: Fixed 2.8mm lens with an aperture of F2.0.
- Field of View: Horizontal: 101.1°, Vertical: 55.0°, Diagonal: 111.0°.
-
DORI Distances:
- Detect: 45.0 meters (147.6 feet)
- Observe: 18.0 meters (59.1 feet)
- Recognize: 9.0 meters (29.5 feet)
- Identify: 4.5 meters (14.8 feet)
- Video Output: Main Stream: 2MP (1920×1080) at up to 30fps; Sub Stream: D1 (720×576) at up to 30fps.
- Minimum Illumination: Color: 0.01 lux (F2.0, AGC ON); 0 lux with IR on.
- Shutter Speed: Auto/Manual, 1 ~ 1/100000s.
- Signal-to-Noise Ratio (S/N): >52dB.
- Wide Dynamic Range (WDR): Digital WDR (DWDR).
- Power Supply: DC12V ±25% or PoE (IEEE 802.3af).
- Power Consumption: Max 5.0W.
- Operating Conditions: Temperature: -30°C to 60°C (-22°F to 140°F); Humidity: ≤ 95% RH (non-condensing).
- Dimensions: 161 × 62 × 63 mm (6.3” × 2.5” × 2.5”).
- Weight: 0.21 kg (0.46 lbs).
This camera is ideal for both indoor and outdoor surveillance, offering high-definition video and advanced features for reliable security monitoring.
