Description

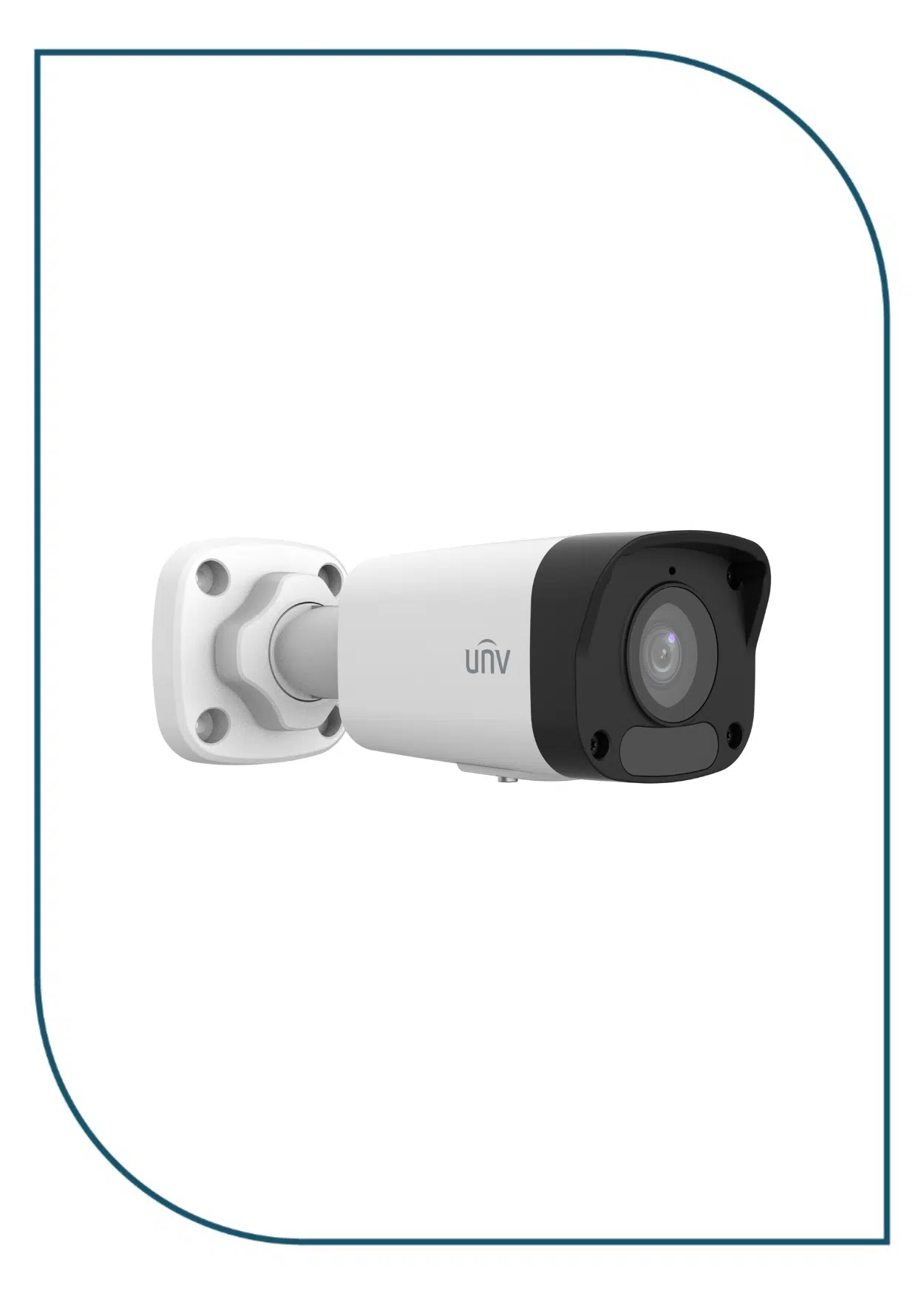

IPC2122LB-ASF40K-A
Key Features:
- Resolution: 2MP (1920×1080) at 30/25 fps.
- Lens: 4mm fixed lens.
- IR Night Vision: Smart IR with a range of up to 30 meters (98 feet).
- Day/Night Functionality: IR-cut filter for automatic switching between day and night modes.
- Compression Formats: Ultra H.265, H.265, H.264 to optimize storage and bandwidth.
- Noise Reduction: 2D/3D DNR (Digital Noise Reduction) for clear images in low-light conditions.
- Vandal-Proof: IK10 rating for vandal resistance.
- Weatherproof: IP67 rating for dust and water resistance, making it suitable for outdoor use.
- Power: PoE (Power over Ethernet) or 12V DC.
- Micro SD Slot: Supports local storage with a micro SD card (up to 128GB).
Video Features:
- Frame Rate: Main stream at 1080P (1920×1080) up to 30fps; sub-stream at 720P (1280×720).
- Minimum Illumination: 0.01 Lux (F2.0, AGC ON) for color video; 0 Lux with IR on.
- Shutter Speed: Auto/Manual, from 1/100000s.
- S/N Ratio: More than 52dB for clear image quality.
Physical Features:
- Dimensions: 161 x 62 x 63mm (6.3” x 2.5” x 2.5”).
- Weight: 0.21 kg (0.46 lbs).
- Mounting: Fixed dome camera with adjustable pan, tilt, and rotation.
Operating Conditions:
- Temperature Range: -30°C to 60°C (-22°F to 140°F).
- Humidity: 95% or less (non-condensing).
Power Supply:
- Power Input: DC12V ± 25% or PoE (IEEE 802.3af).
- Max Power Consumption: 5.0W.
Protection:
- Vandal Resistance: IK10 rating for anti-vandal protection.
- Weather Resistance: IP67 for dust and water protection.
