Description

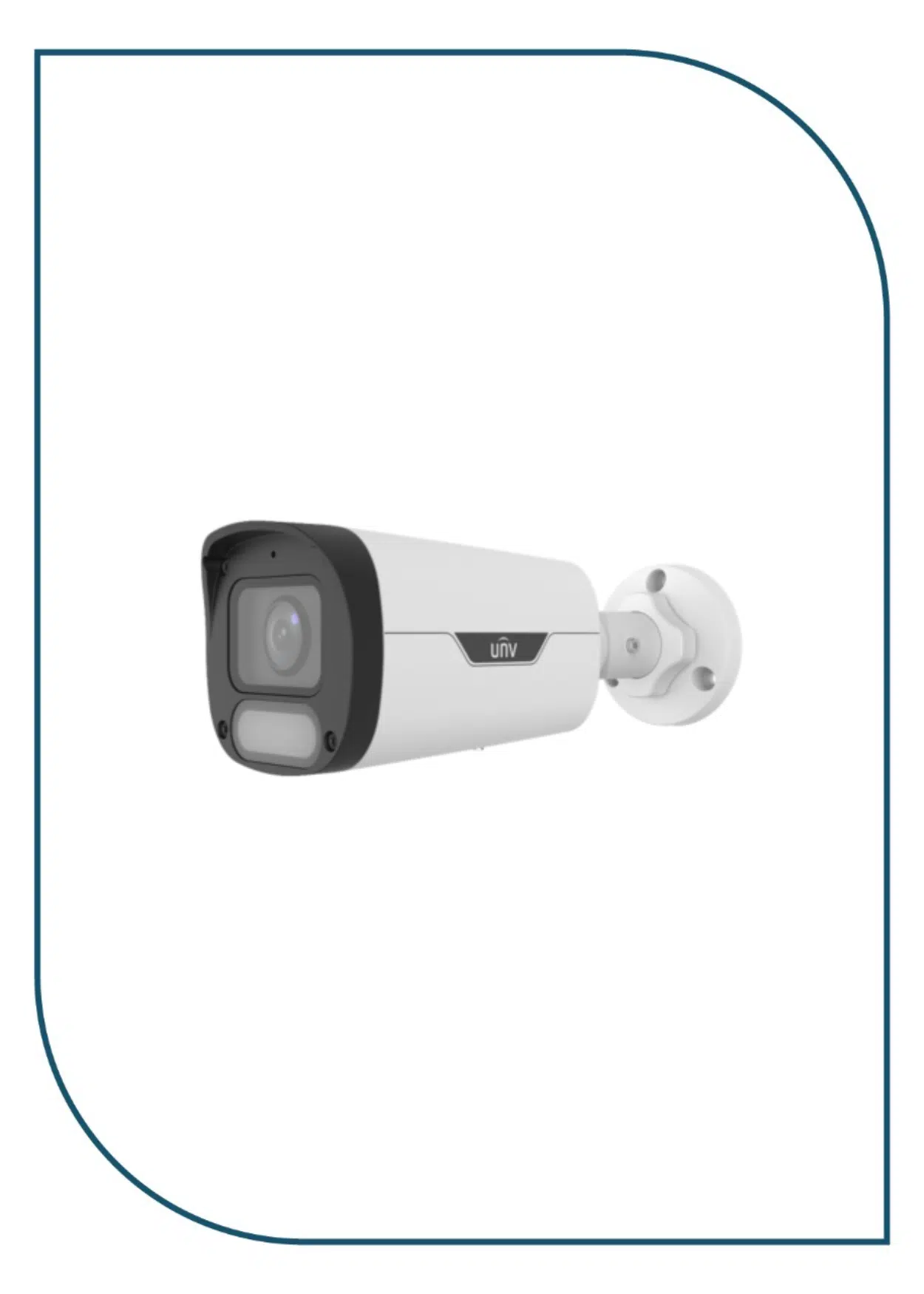

IPC 2315LE-ADF40KM-WP
The Uniview IPC2315LE-ADF40KM-WP is a 5-megapixel fixed IR bullet network camera designed for high-quality surveillance applications. Below are its key specifications:
Camera Specifications:
- Image Sensor: 1/1.8″ progressive scan CMOS sensor
- Resolution and Frame Rate:
- 5MP (2880×1620) at up to 25 frames per second (fps)
- 4MP (2560×1440) at up to 25 fps
- 3MP (2304×1296) at up to 30 fps
- 2MP (1920×1080) at up to 30 fps
- Lens: 4.0mm fixed lens with F1.0 aperture
- Field of View (FOV):
- Horizontal: 89.4°
- Vertical: 48.2°
- Diagonal: 94.7°
- Day/Night Functionality: IR-cut filter with auto switch (ICR)
- Minimum Illumination:
- Color: 0.0005 lux (F1.0, AGC ON)
- 0 lux with IR on
- Infrared (IR) Range: Up to 30 meters (98 feet)
- Wide Dynamic Range (WDR): 120dB true WDR
- Digital Noise Reduction (DNR): 2D/3D DNR
Video Compression:
- Formats Supported: Ultra 265, H.265, H.264, MJPEG
- Region of Interest (ROI): Up to 8 areas
- Privacy Masking: Up to 4 areas
- Video Streams: Dual streams
Network:
- Protocols Supported: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS
- Integration Compatibility: ONVIF (Profile S, Profile T), API, SDK
- User Access: Supports up to 32 users with 2 user levels: administrator and common user
- Security Features: Password protection, strong password enforcement, HTTPS encryption, exportable operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, WSSE and digest authentication for ONVIF
Audio:
- Compression: G.711U, G.711A
- Bitrate: 64 Kbps
Interface:
- Network Interface: 1 × RJ45 10M/100M Base-TX Ethernet
Physical and Environmental:
- Power Supply:
- Options: DC 12V (±25%) or PoE (IEEE 802.3af)
- Power Consumption: Maximum 5.0W
- Ingress Protection Rating: IP67, indicating high resistance to dust and water
- Vandal Resistance: IK10, providing protection against mechanical impact
- Operating Environment: Temperature range from -30°C to 60°C (-22°F to 140°F); humidity up to 95% RH (non-condensing)
- Dimensions: Diameter 109 mm × Height 81 mm
- Weight: Approximately 0.32 kg (0.71 lb)
This camera is well-suited for various surveillance applications, offering robust features for both day and night monitoring.
