Description
S310-48T4X
Overview
Table 4-67Basic information about the S310-48T4X
| Item | Details |
|---|---|
| Description | S310-48T4X (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012383 |
| Model | S310-48T4X |
| First supported version | V600R023C00 |
Components

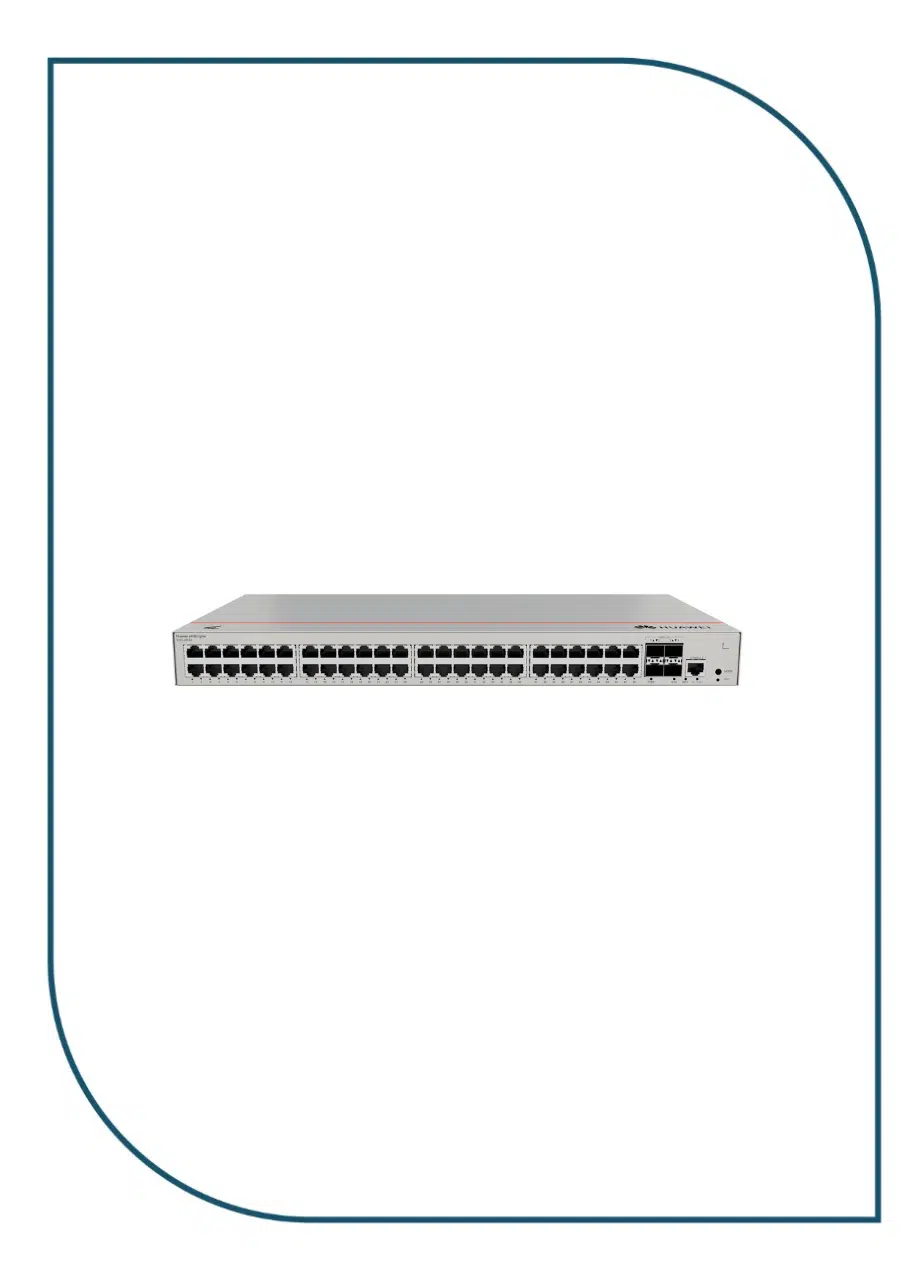

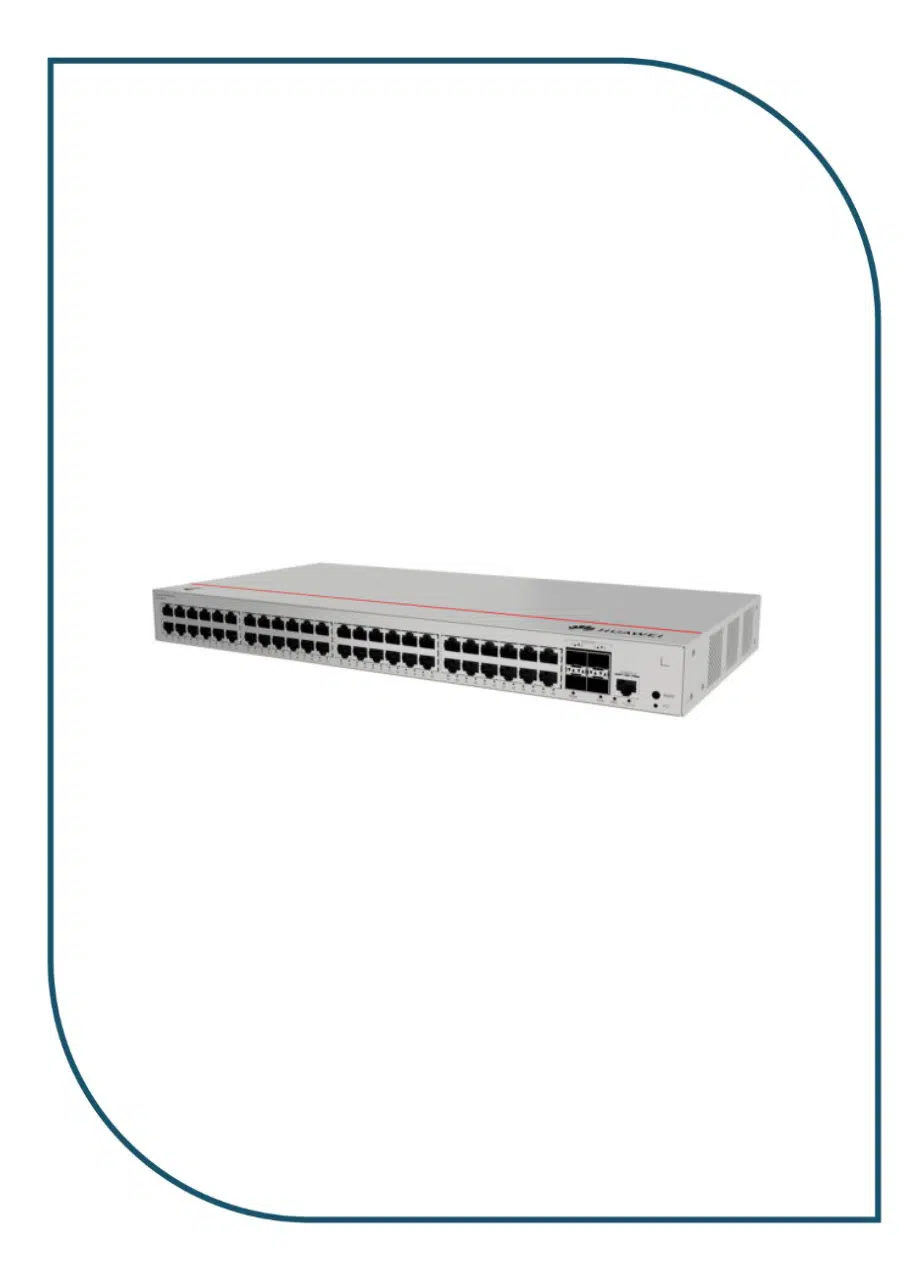

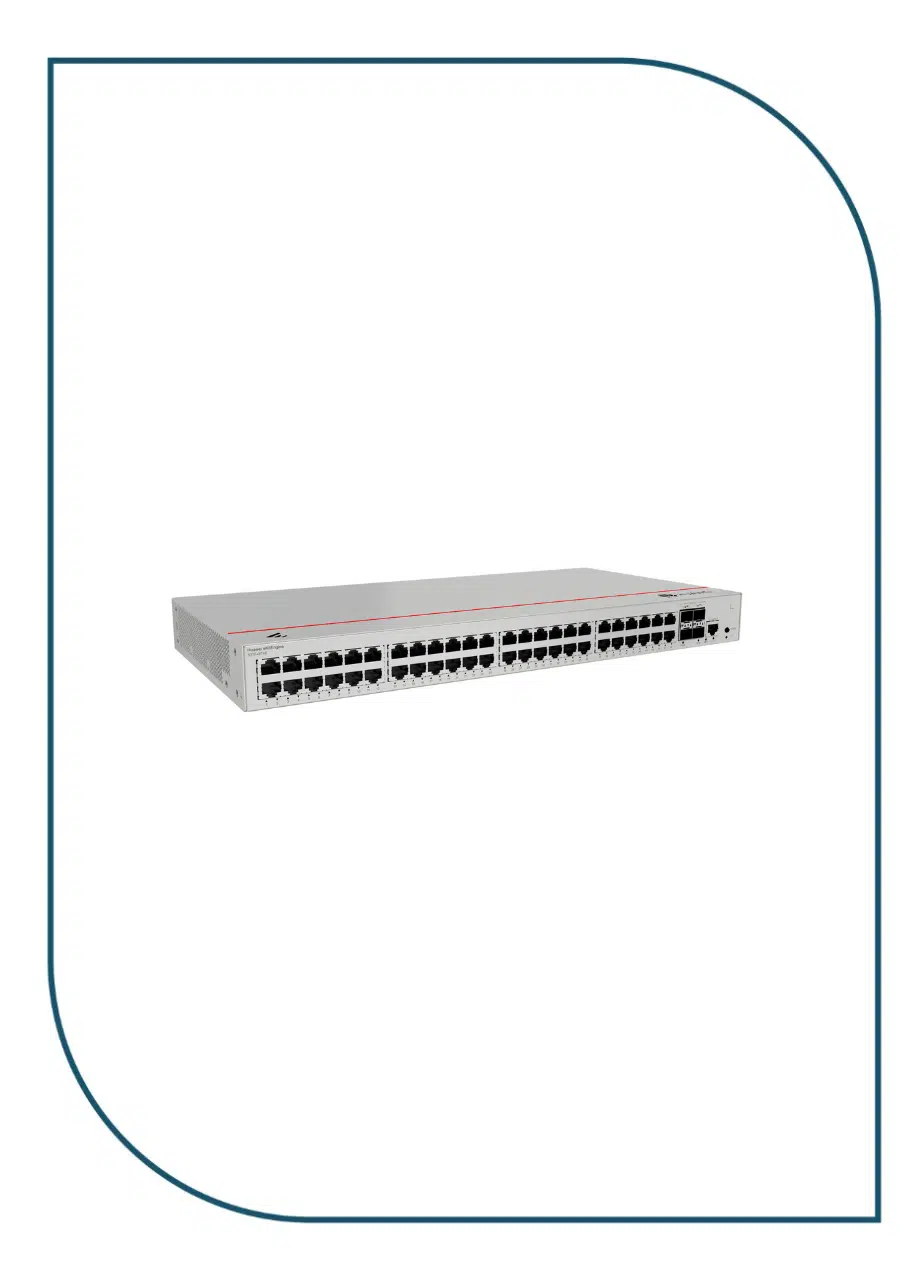

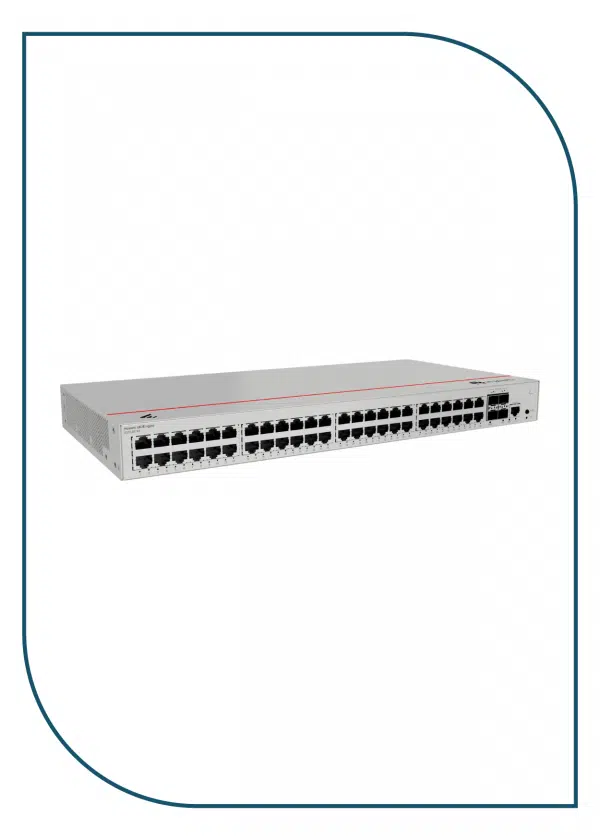

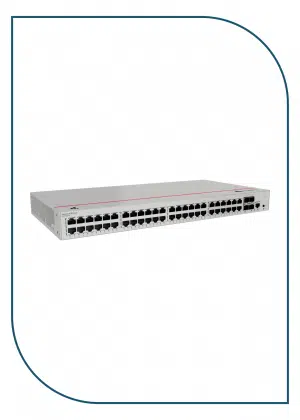

Figure 4-24S310-48T4X appearance
| 1 | Forty-eight 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ ports |
| 3 | One console port | 4 | One MODE button |
| 5 | One RST button
NOTICE: To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. |
6 | Ground screw
NOTE: It is used with a ground cable
|
| 7 | Jack for AC power cable locking strap
NOTE: The AC power cable locking strap is not delivered with the switch.
|
8 | AC socket
NOTE: It is used with an AC power cable |
Ports
Table 4-68Ports on the S310-48T4X
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. | Ethernet cable |
| 10GE SFP+ port | SFP+ | A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. |
|
| Console port | RJ45 | The console port is connected to a console for on-site configuration. | Console cable |
