Description
S310-48P4S
Overview
Table 4-70 Basic information about the S310-48P4S
| Item | Details |
|---|---|
| Description | S310-48P4S (48*10/100/1000BASE-T ports(380W PoE+), 4*GE SFP ports, built-in AC power) |
| Part Number | 98012384 |
| Model | S310-48P4S |
| First supported version | V600R023C00 |
Components

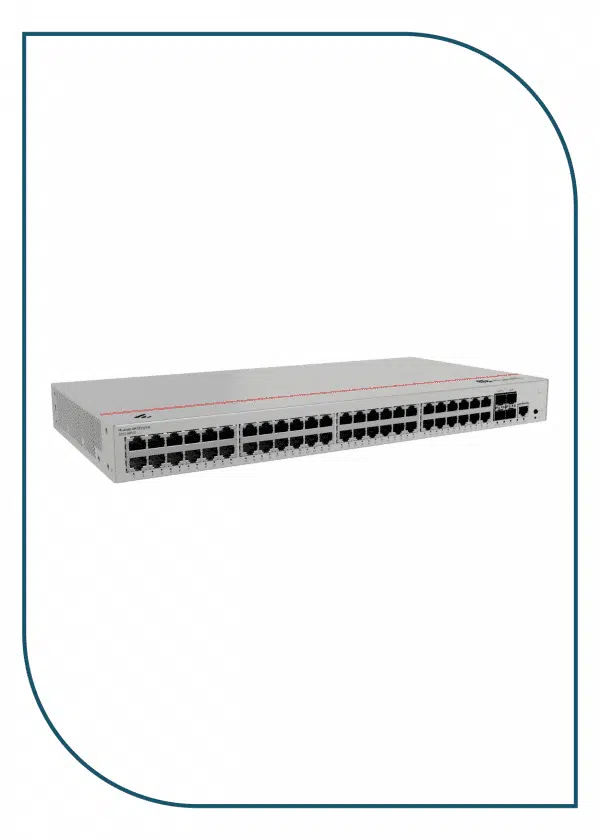

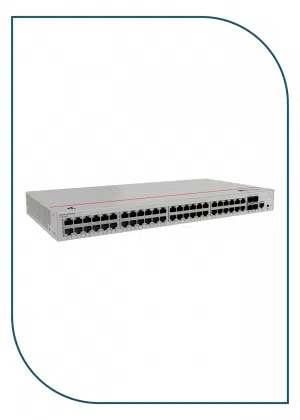

Figure 4-25 S310-48P4S appearance
| 1 | Forty-eight 10/100/1000BASE-T PoE+ ports | 2 | Four 1000BASE-X ports |
| 3 | One console port | 4 | One MODE button |
| 5 | One RST button
NOTICE:
To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. |
6 | Ground screw
NOTE:
It is used with a ground cable.
|
| 7 | Jack for AC power cable locking strap
NOTE:
The AC power cable locking strap is not delivered with the switch.
|
8 | AC socket
NOTE:
It is used with an AC power cable. |
Ports
Table 4-71 Ports on the S310-48P4S
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. | Ethernet cable |
| 1000BASE-X port | SFP | A 1000BASE-X port can send and receive data at 1000 Mbit/s. |
|
| Console port | RJ45 | The console port is connected to a console for on-site configuration. | Console cable |
