Description

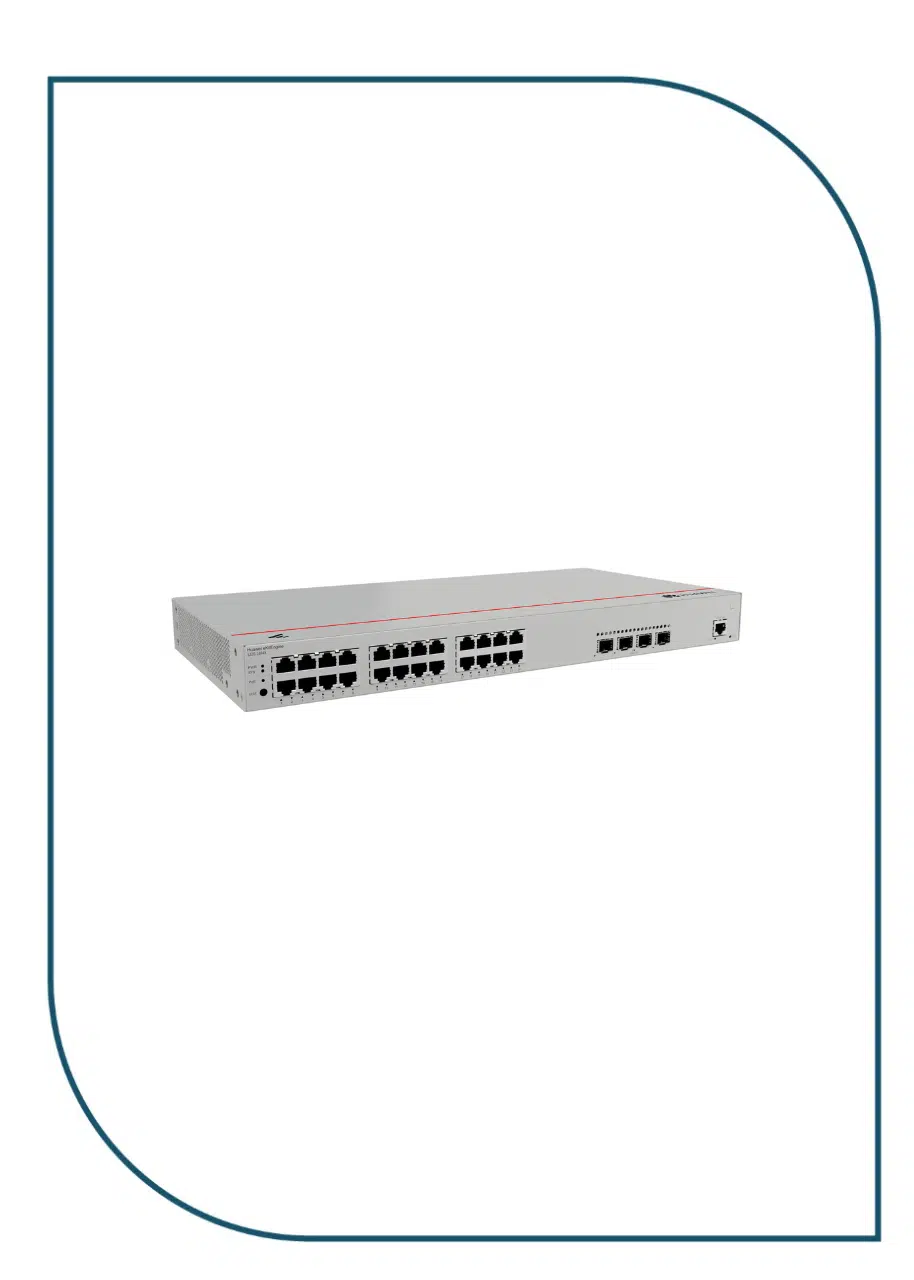

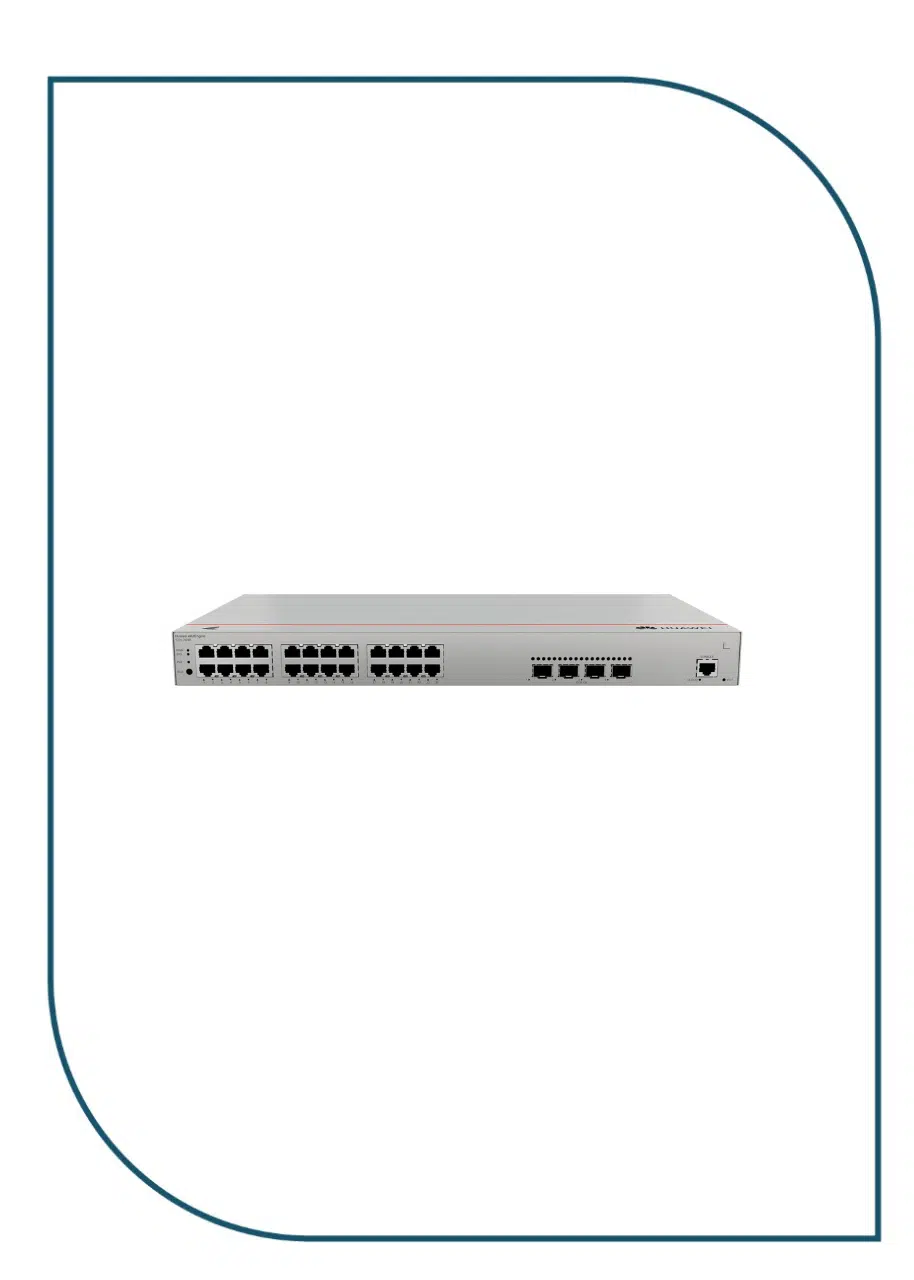

The Huawei eKitEngine S220-24P4X is a Layer 2 Smart Managed Gigabit PoE+ Switch designed for small and medium-sized businesses, enterprise branches, hotels, schools, healthcare facilities, retail stores, and IP surveillance deployments. It features 24 Gigabit PoE+ RJ45 ports and 4 × 10GE SFP+ uplink ports, providing high-speed access connectivity and powerful 10 Gigabit fiber uplinks for enterprise networks.
Equipped with a 400W PoE power budget, the switch can simultaneously power IP cameras, Wi-Fi 6 access points, VoIP phones, access control systems, and other IEEE 802.3af/at-compliant devices through Ethernet cables, reducing installation costs and simplifying network deployment.
The S220-24P4X supports comprehensive Layer 2 networking features including VLAN, QoS, ACL, Link Aggregation (LACP), STP/RSTP/MSTP, ERPS, IGMP Snooping, DHCP Snooping, IPv6, and advanced security functions for stable and secure enterprise networking. It also supports Huawei eKit Cloud Management, allowing administrators to configure, monitor, and maintain the switch remotely through the Huawei eKit App or Web management platform.
Featuring a built-in AC power supply, intelligent dual-fan cooling, and a durable 1U metal chassis, the S220-24P4X is an ideal solution for enterprise access networks requiring reliable PoE performance, high-speed 10G uplinks, and simplified cloud-based management.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S220-24P4X |
| Product Type | Layer 2 Smart Managed PoE+ Switch |
| Ethernet Ports | 24 × 10/100/1000BASE-T RJ45 (PoE+) |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Total PoE Budget | 400 W |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95 Mpps |
| MAC Address Table | 16K Entries |
| VLAN Support | Up to 4,094 VLANs |
| QoS | Supported |
| ACL | Supported |
| Link Aggregation | LACP |
| Spanning Tree | STP, RSTP, MSTP |
| Ring Protection | ERPS |
| Multicast | IGMP Snooping |
| IPv6 | Supported |
| DHCP Features | DHCP Snooping |
| Management | Web GUI, CLI, SNMP, Huawei eKit App, Cloud Management |

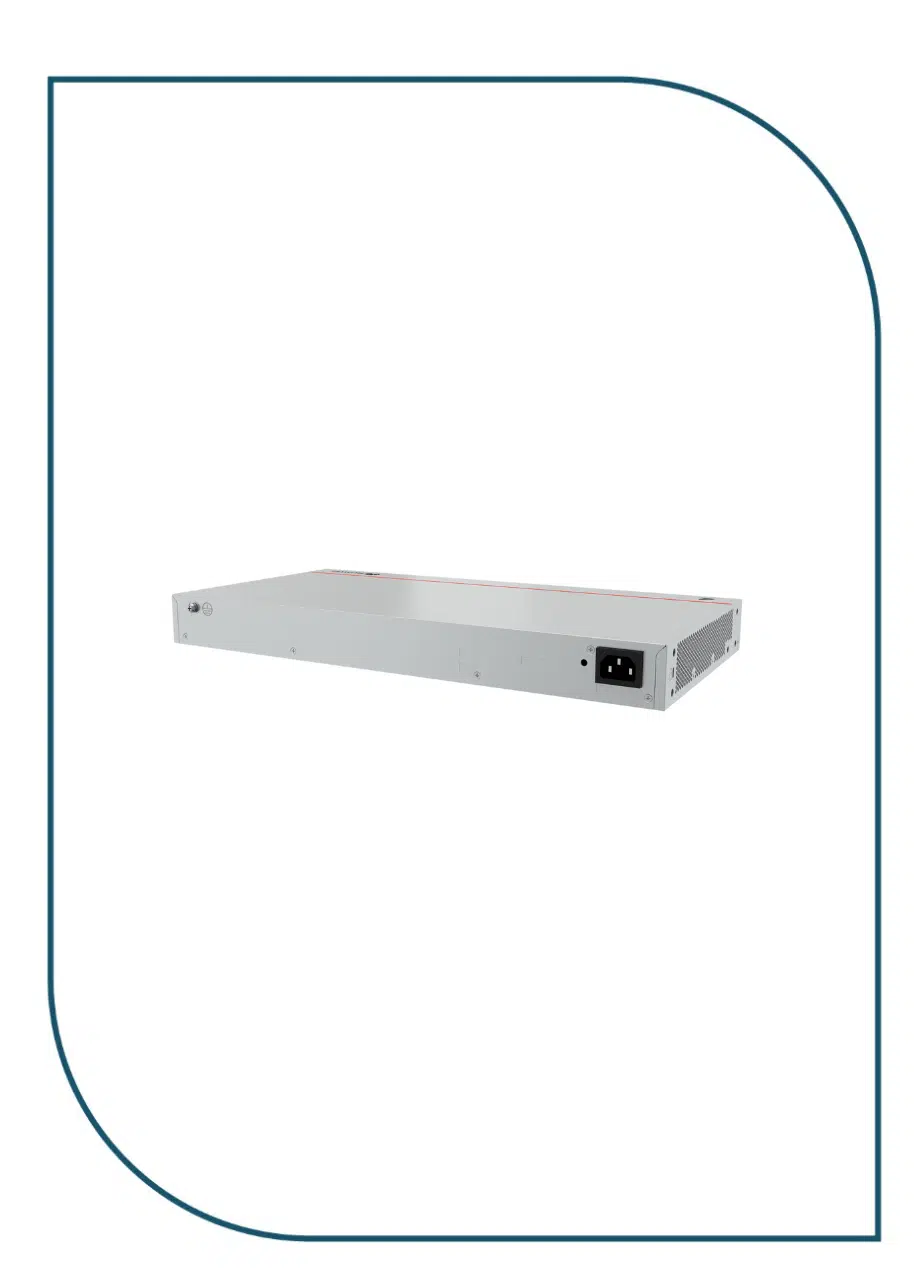

| Power Supply | Built-in AC (90–290V AC, 45–65Hz) |
| Cooling | Intelligent Dual Fan |
| Installation | Rack Mount, Desktop, Wall Mount |
| Chassis Material | Metal |
| Dimensions (H × W × D) | 43.6 × 442 × 220 mm |
| Weight | 2.92 kg |
| Operating Temperature | -5°C to +50°C |
