Description

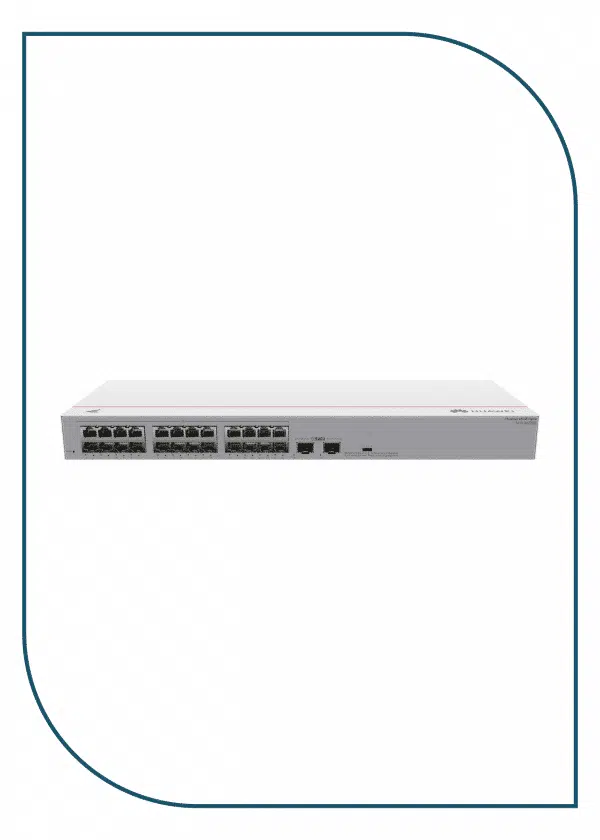

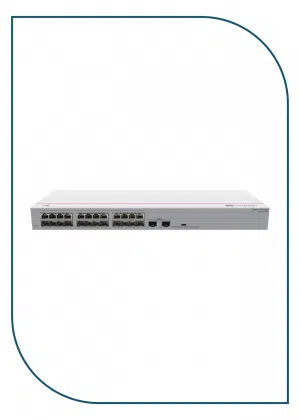

The Huawei eKitEngine S110-24T2SR is a 24-port Gigabit Unmanaged Switch designed to provide simple, reliable, and high-speed wired connectivity for small businesses, offices, retail stores, schools, and home office environments. With 24 Gigabit RJ45 Ethernet ports and 2 Gigabit SFP uplink ports, it offers flexible copper and fiber connectivity for expanding business networks.
As a plug-and-play unmanaged switch, the S110-24T2SR requires no software configuration or complex setup. It automatically detects connected devices and begins forwarding traffic immediately, making deployment fast and effortless. The dedicated Gigabit SFP uplink ports enable long-distance fiber connections to core switches or network infrastructure while maintaining high-speed performance.
The switch features store-and-forward switching, automatic MAC address learning, Auto MDI/MDIX, and IEEE 802.3x flow control, ensuring stable and efficient data transmission. Its fanless, energy-efficient design delivers quiet operation, making it suitable for office workspaces and noise-sensitive environments.
Built with a durable metal chassis and supporting desktop or rack installation, the Huawei S110-24T2SR provides a dependable networking solution for users who need Gigabit performance without the complexity of managed switches.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S110-24T2SR |
| Product Type | Unmanaged Gigabit Ethernet Switch |
| Ethernet Ports | 24 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 2 × 1GE SFP |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | 38.69 Mpps |
| MAC Address Table | 8K Entries |
| Forwarding Mode | Store-and-Forward |
| Flow Control | IEEE 802.3x |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Jumbo Frames | Up to 9 KB |
| Management | Unmanaged (Plug & Play) |
| Power Supply | Built-in AC (100–240V AC, 50/60Hz) |
| Cooling | Fanless |
| Installation | Desktop or Rack Mount |
| Housing | Metal |
| Operating Temperature | 0°C to +40°C |
