Description

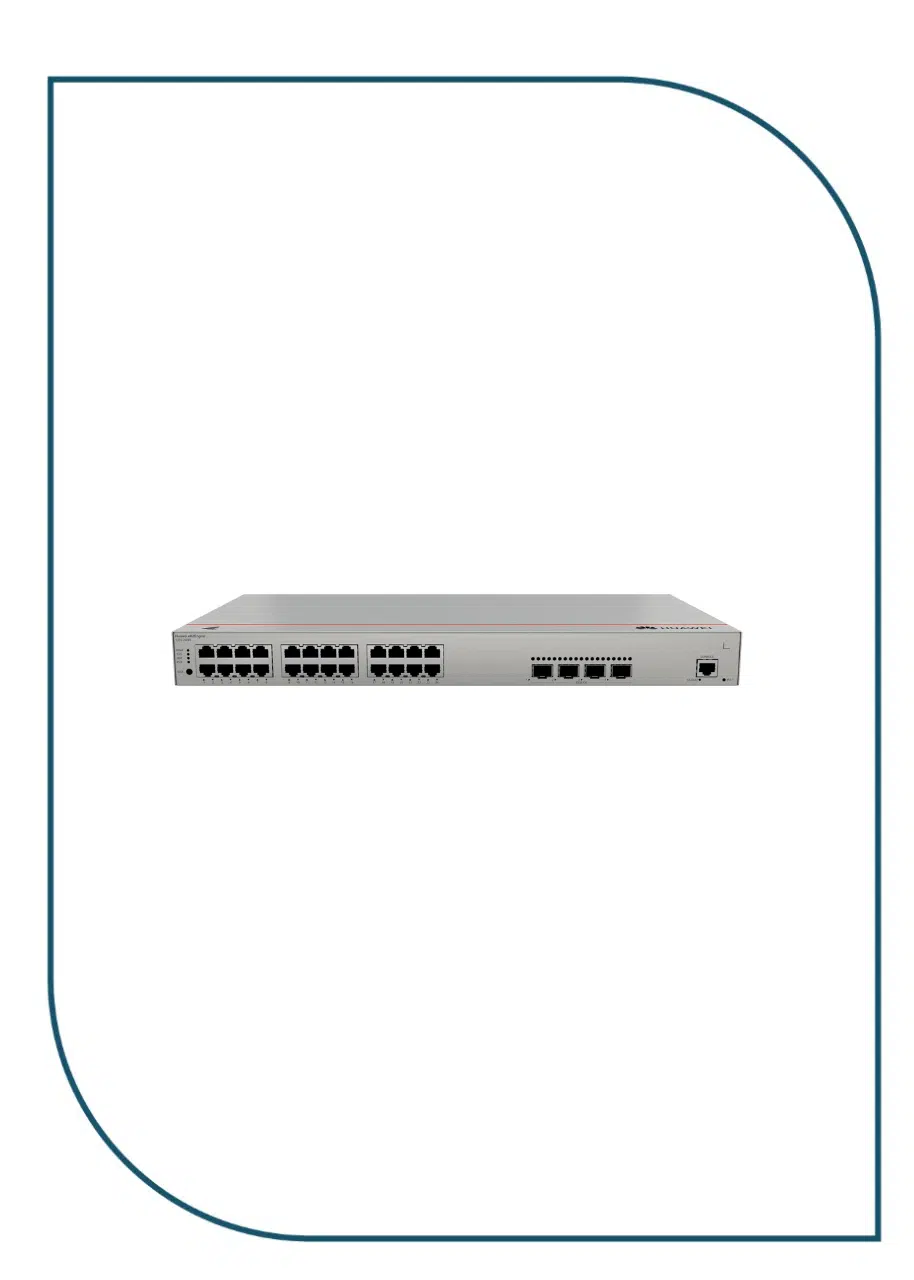

The Huawei eKitEngine S310-24P4X is an enterprise-grade Layer 3 Smart Managed PoE+ Gigabit Switch designed for small and medium-sized businesses, offices, schools, hotels, retail stores, and IP surveillance deployments. It features 24 Gigabit PoE+ RJ45 ports and 4 × 10GE SFP+ uplink ports, delivering high-speed connectivity and flexible fiber uplinks for modern enterprise networks.
Equipped with a 400W PoE power budget, the switch efficiently powers IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at compliant devices through a single Ethernet cable, reducing installation complexity and infrastructure costs.
The S310-24P4X supports comprehensive Layer 2 and Layer 3 networking capabilities, including IPv4 Static Routing, IPv6, VLAN, ACL, QoS, Link Aggregation, STP/RSTP/MSTP, ERPS ring protection, IGMP Snooping, and Huawei iStack virtualization, providing secure, scalable, and highly available network performance.
With Huawei eKit Cloud Management, administrators can configure, monitor, and maintain the switch remotely using the Huawei eKit App or Web management platform. Its built-in AC power supply, intelligent fan cooling, and durable 1U metal chassis make it an excellent choice for enterprise LANs and business-critical networking environments.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S310-24P4X |
| Switch Type | Layer 3 Smart Managed PoE+ Switch |
| Downlink Ports | 24 × 10/100/1000BASE-T RJ45 (PoE+) |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Total PoE Budget | 400 W |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 96 Mpps |
| MAC Address Table | 16K Entries |
| Layer 3 Features | Static Routing, IPv4, IPv6 |
| VLAN | Up to 4K VLANs |
| QoS | Supported |
| ACL | Supported |
| Link Aggregation | LACP |
| Spanning Tree | STP, RSTP, MSTP |
| Ring Protection | ERPS |
| Multicast | IGMP Snooping |
| Stacking | Huawei iStack (Up to 4 Switches) |
| Management | Web GUI, CLI, SNMP, Huawei eKit App, Cloud Management |
| Power Supply | Built-in AC (100–240V AC, 50/60 Hz) |
| Cooling | Intelligent Fan Cooling |
| Mounting | 1U Rack Mount, Desktop |
| Chassis Material | Metal |
| Dimensions | 43.6 × 442 × 220 mm |
| Operating Temperature | -5°C to +50°C |
