Huawei Layer 2 Smart Managed Switch, 8 Port Gigabit, 2 x 10GE SFP+ ports (S220S-8T2X)
4.950,00 EGP4.950,00 EGP× -
-
-
-
-
-

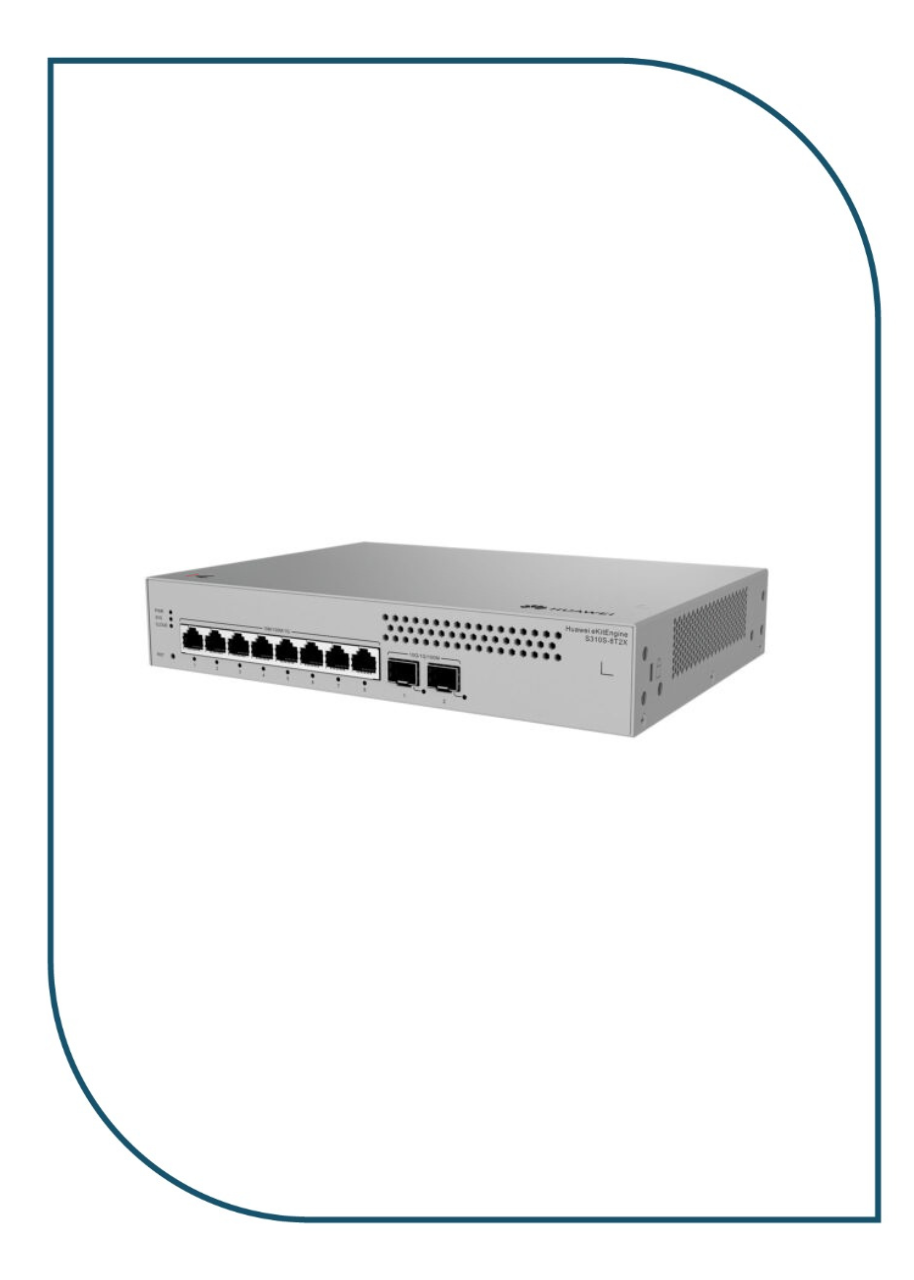

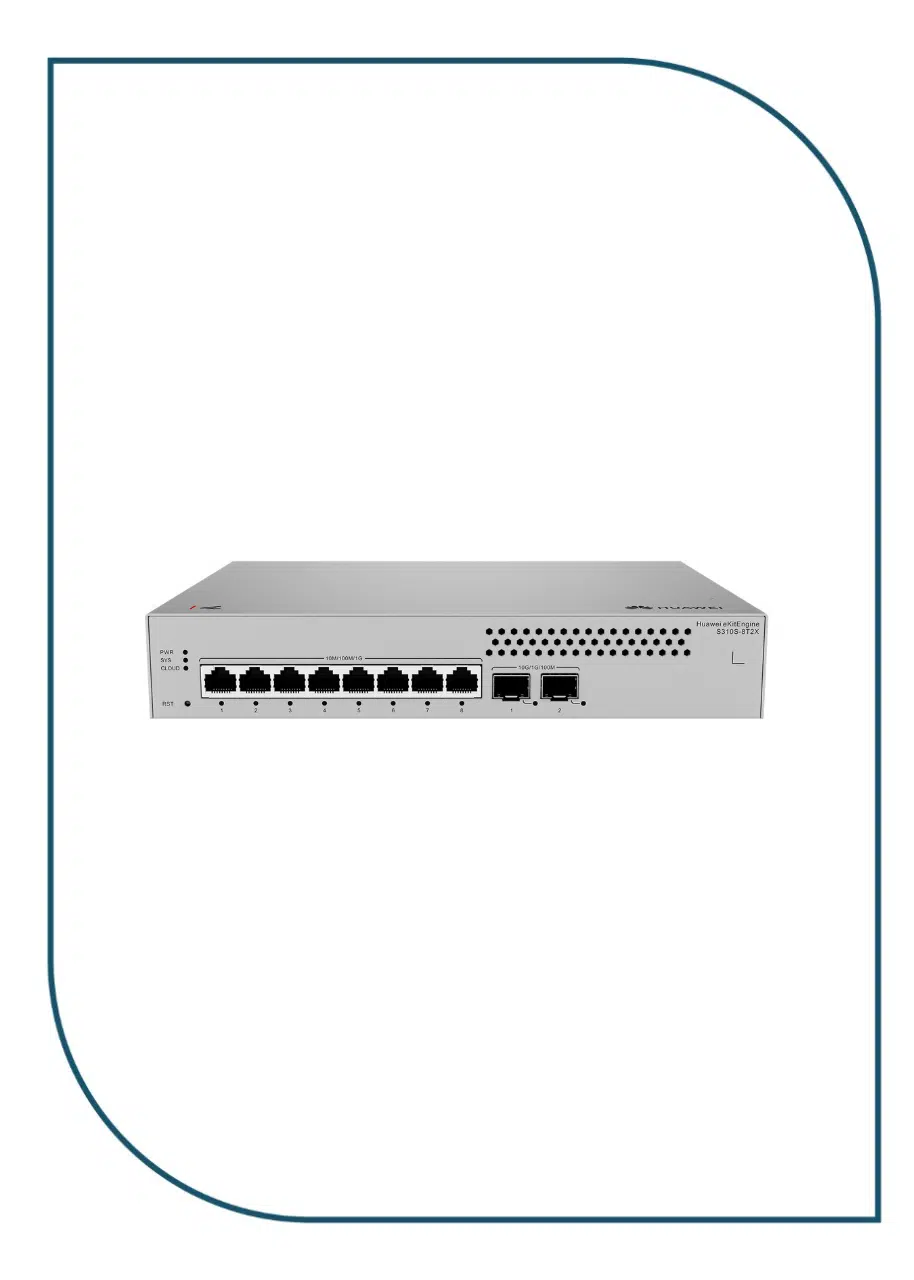

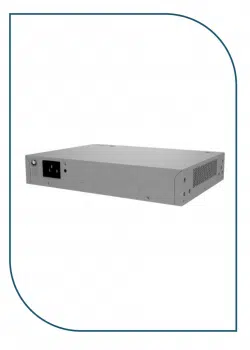

Huawei Layer 2+ Managed Switch, 8 x 10/100/1000BASE-T, 2 x 10GE SFP+ ports (S310S-8T2X)
S310S-8T2X
“8 x 10/100/1000BASE-T ports
2 x 10GE SFP+ ports
Packet forwarding rate: 42 Mpps
Switching capacity: 56 Gbit/s”
6.105,00 EGP
Buy NowDescription
S310S-8T2X
Huawei eKitEngine S310S series switches are fully-managed 10GE switches designed for the SME and SMB market. These switches provide many features, such as These switches feature flexible Ethernet networking, diversified security control, rich management methods, higher performance, and extended service processing capabilities. Therefore, they can be widely used in scenarios such as economic hotels, factories, primary and secondary education, and building security.
- Product Features and Highlights
- Flexible Ethernet Networking
- Diversified Security Control
- PoE Power Supply
- Smart Upgrade
- Cloud Management
- Easy O&M
| Model | S310S-8T2X |
|---|---|
| Switching capacity | 26 Gbps |
| Network ports | 8 x 10/100/1000BASE-T |
| Uplink ports | 2 x 10Gigabit SFP+ Ports |
| PoE Support | No |
| Dimensions | 4.36 x 18 x 25 cm |
| Weight | 2.07 kg |
| Technical Specifications | |
| Chassis material | Metal |
| Height [mm] | 43.6 mm |
| Depth [mm] | 180 mm |
| Wide [mm] | 250 mm |
| Chassis height [U] | 1 |
| Weight with packaging [kg(lb)] | 2.07 kg (4.56 lb) |
| Weight without packaging [kg(lb)] | 1.34 (2.95) |
| Maximum power consumption [W] | 10.94 |
| Typical power consumption [W] | 10.31 |
| Heat dissipation mode | Natural heat dissipation |
| Maximum heat dissipation [BTU/hour] | 37.33 |
| Typical heat dissipation [BTU/hour] | 35.18 |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Maximum input current [A] | 0.8 A |
| Number of power slots | 0 |
| Number of card slots | 0 |
| Memory | DDR4: 512 MB |
| Flash memory | NAND flash: 256 MB |
| Redundant power supply | Not supported |
| Types of fans | None |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Airflow direction | – |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating temperature [°C(°F)] | –5°C to +40°C (41°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| MTBF [year] | 102.91 |
| MTTR [hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 10 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 2 |
| Maximum number of GE ports | 10 |
| Maximum number of FE ports | 10 |
| USB | Not supported |
| Console port | Not supported |
| Eth Management port | Not supported |
| Power supply surge protection | Differential mode: ±6 kV; common mode: ±6 kV |
| RPS input | Not supported |
| PoE | Not supported |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 41.68 Mpps |
| Management Platform | |
| Mounting Options | Desktop, Rack Mount |
| POE | Not Support POE |
| Switch Layer | Layer 2+ |
| Switching Capacity | 56 Gbps |
| Uplink Ports | 2 |
| UpLinks Speed | 10G |
