Description
S530-48S4XE
Overview
Table 4-143 Basic information about the S530-48S4XE
| Item | Details |
|---|---|
| Description | S530-48S4XE(48*GE SFP ports, 4*10GE SFP+ ports, 2*10GE stack ports, with 1*AC power module) |
| Part Number | 98012558 |
| Model | S530-48S4XE |
| First supported version | V600R023C10SPC600 |
| Remarks |
|
S530-48S4XE Components

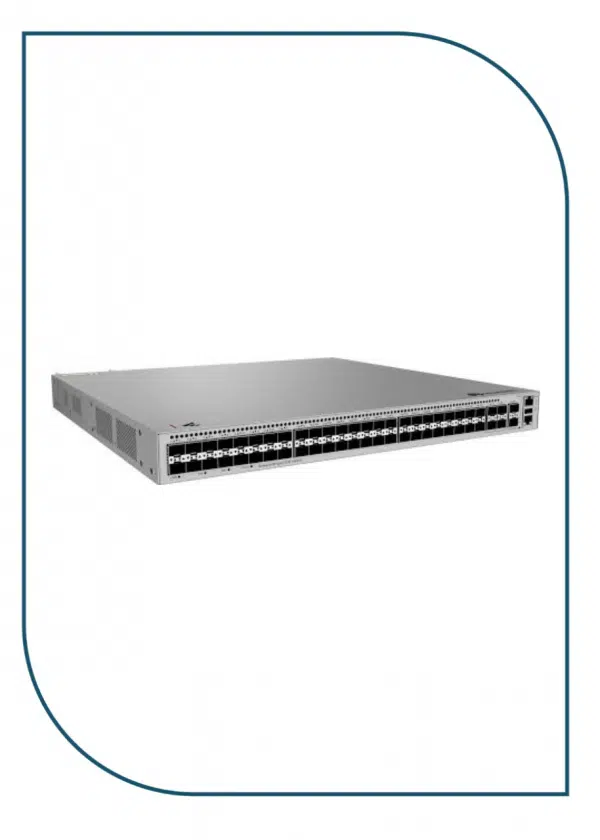

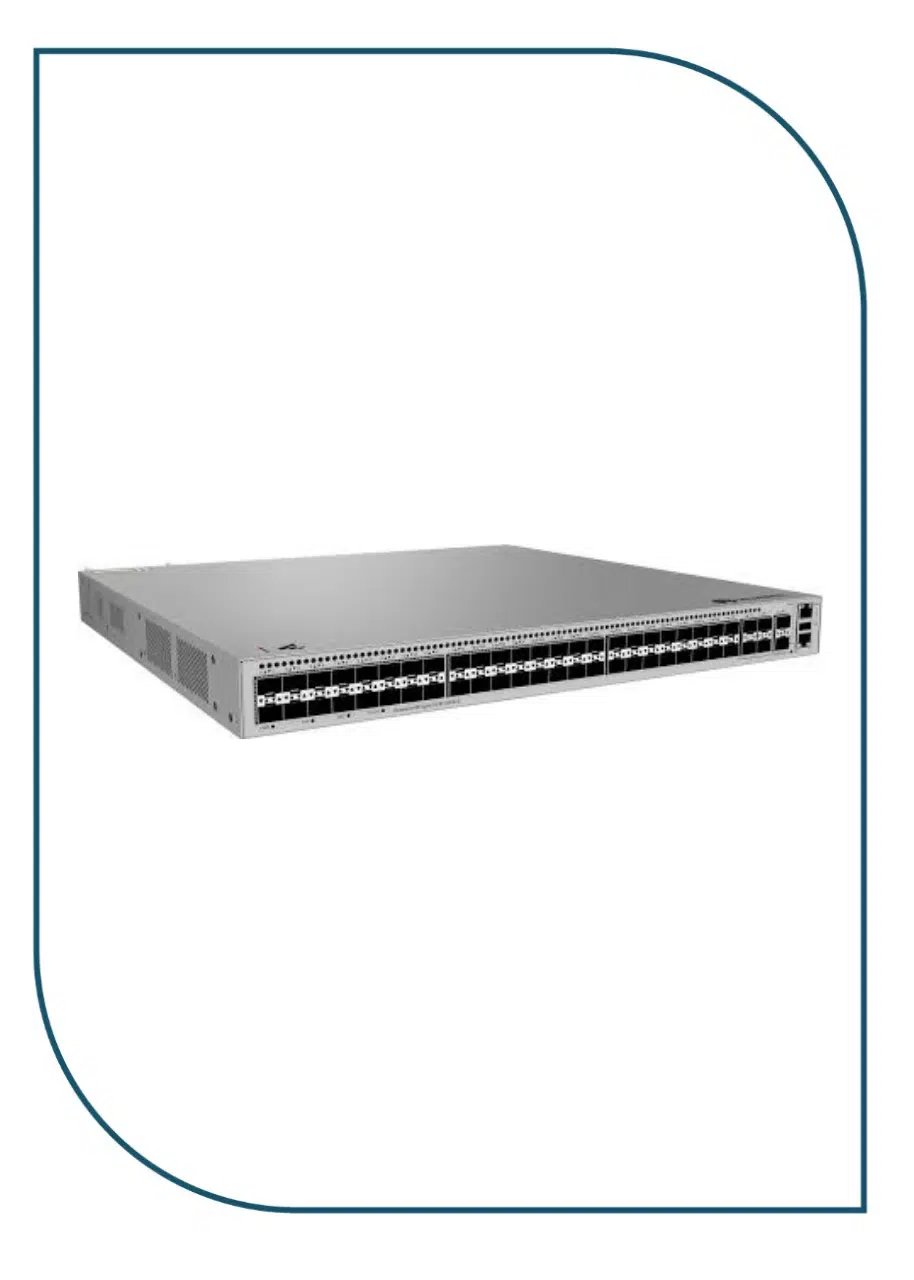

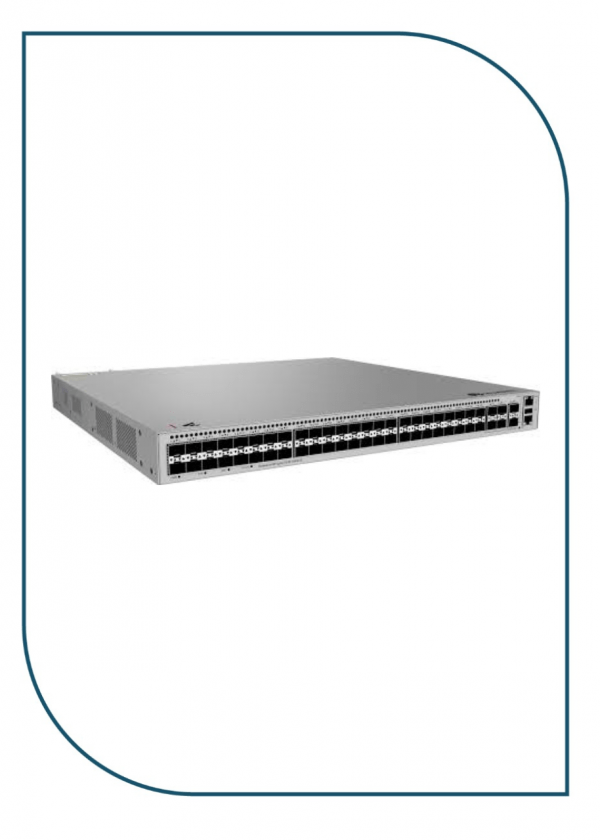

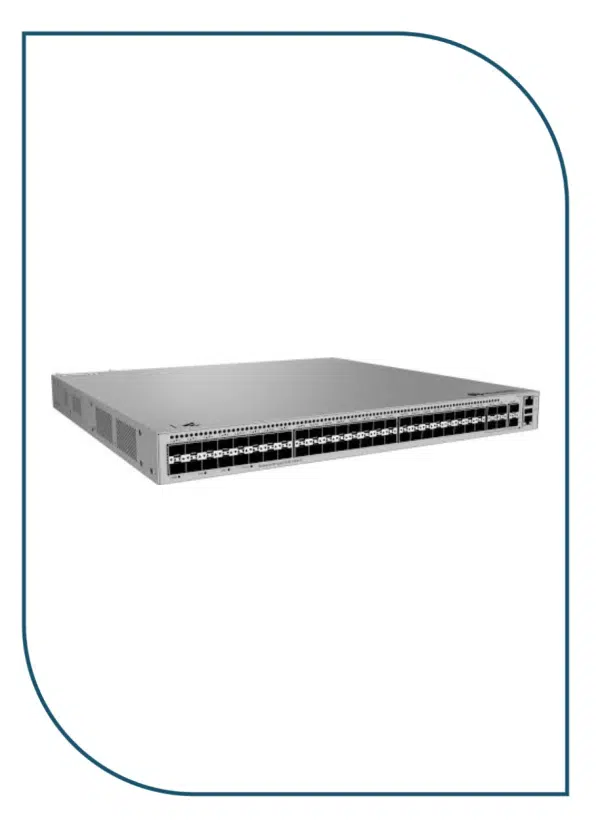

Figure 4-49 S530-48S4XE appearance
| 1 | Forty-eight 100/1000BASE-X ports | 2 | Four 10GE SFP+ ports |
| 3 | Two stack ports
NOTE:
These stack ports are available only in CLI-based O&M scenarios. |
4 | One console port |
| 5 | One USB port | 6 | One ETH management port |
| 7 | One RST button
NOTICE:
To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. |
8 | Ground screw
NOTE:
It is used with a ground cable.
|
| 9 | Power module slot 1
NOTE:
Applicable power modules:
When 1000BASE-X Ethernet optical ports use 25 or more GE optical modules with a distance of 40 km or longer, a power module with a minimum power of 180 W is required. |
10 | Power module slot 2
NOTE:
Applicable power modules:
When 1000BASE-X Ethernet optical ports use 25 or more GE optical modules with a distance of 40 km or longer, a power module with a minimum power of 180 W is required. |
