Description

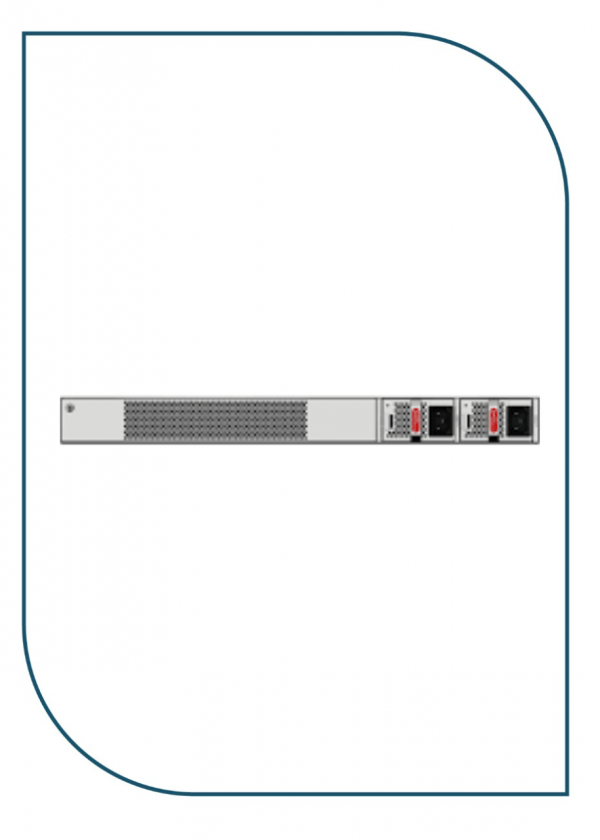

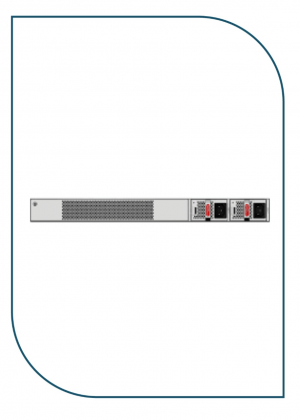

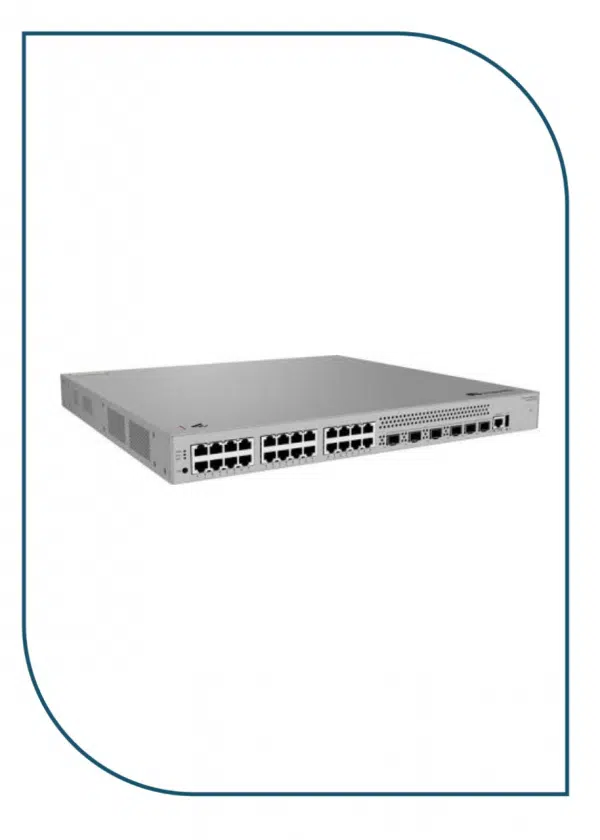

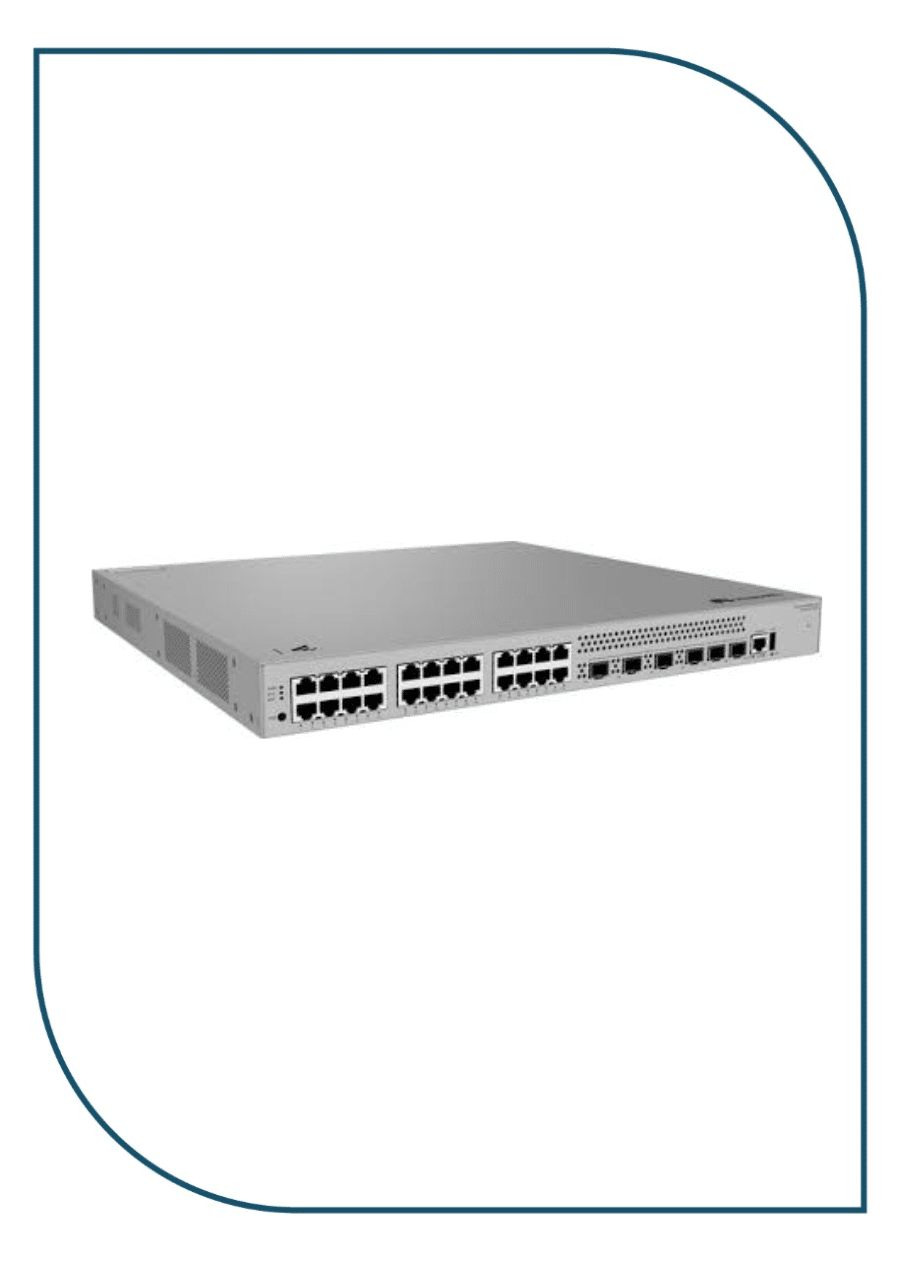

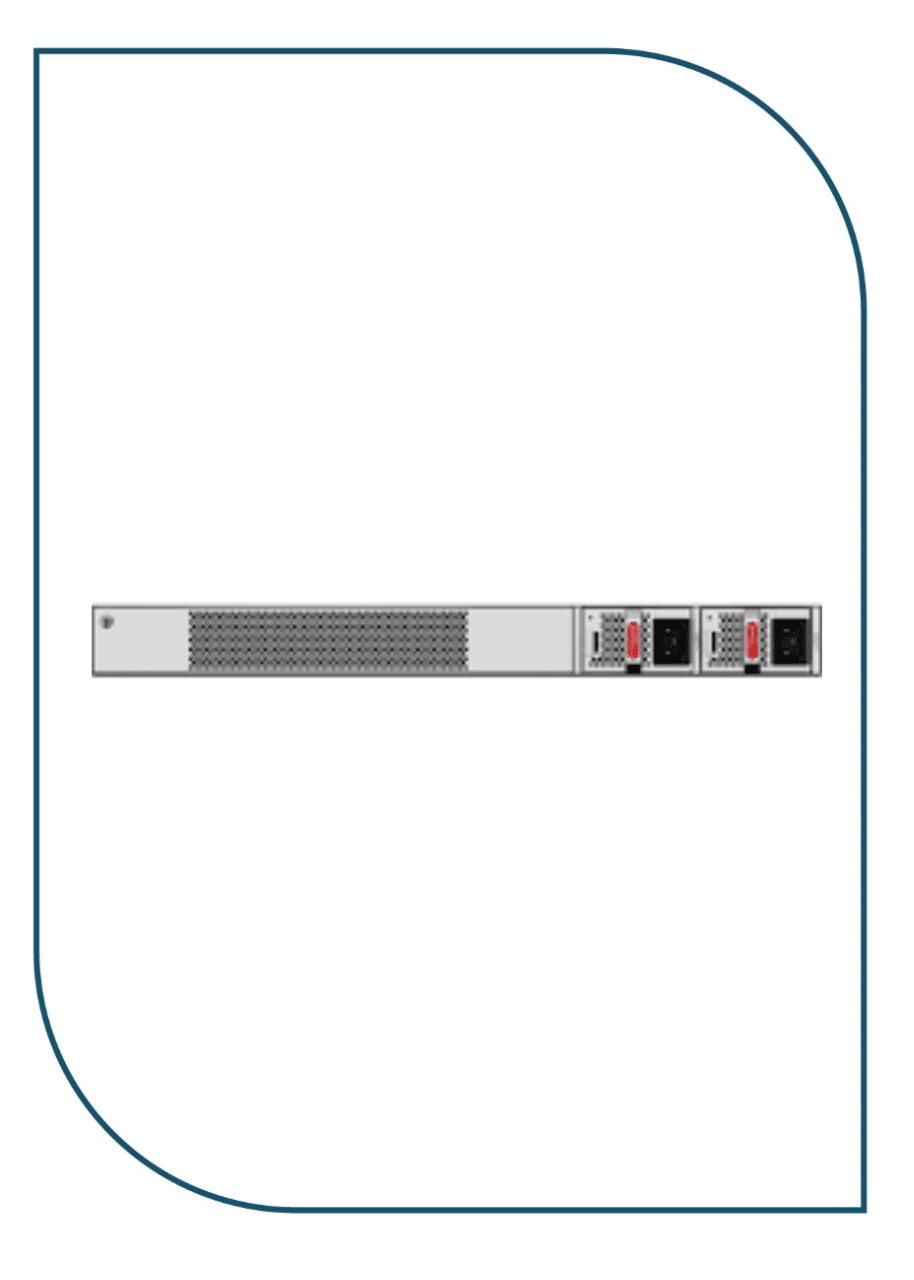

S530-24T4XE
| Model | Huawei eKitEngine S530-24T4XE |
| Switch Type | Layer 3 Managed Switch |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ45 ports |
| Uplink Ports | 4 × 10Gbps SFP+ ports |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 16K |
| VLAN Support | Up to 4K VLANs |
| Routing Capabilities | – Static Routing – Inter-VLAN Routing |
| Security Features | – ACL (Access Control List) – DHCP Snooping – ARP Inspection |
| Loop Prevention | STP / RSTP / MSTP |
| QoS (Quality of Service) | Supported |
| Management Interfaces | – Web UI – CLI (Console, Telnet, SSH) – SNMP |
| Power Supply | AC powered (No PoE support on this model) |
| Mounting | Rack-mountable (1U) |
| Typical Applications | – SMB Access & Aggregation Layer – VLAN Segmentation – Small Branch Networks |
| Energy Saving | Supported |
S530-24T4XE Highlights:
- Ideal for Small and Medium Businesses (SMB).
- Supports advanced L3 features for basic routing.
- High-speed uplinks (10G SFP+), great for connecting to core switches or servers.
- Enterprise-level security and QoS.
