Description

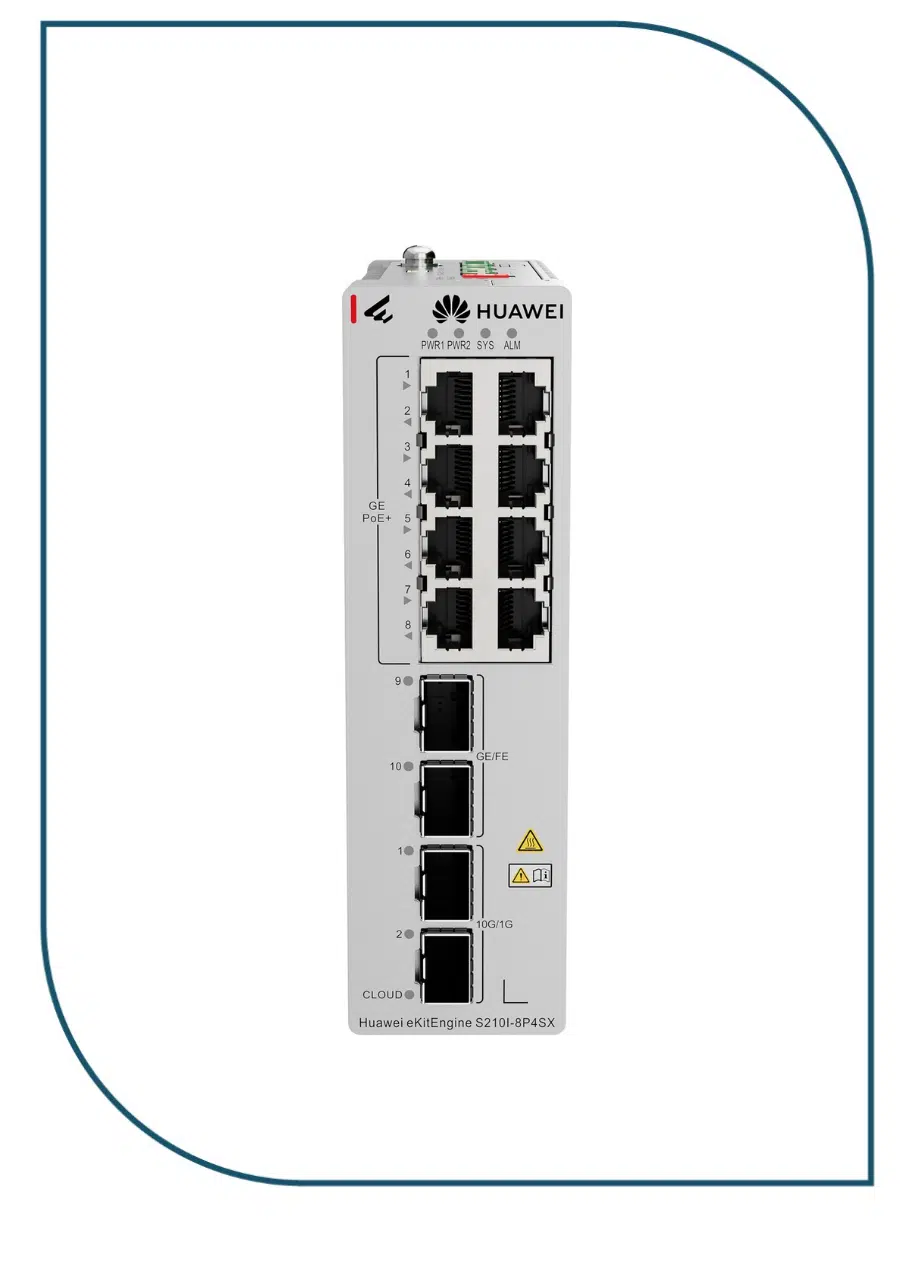

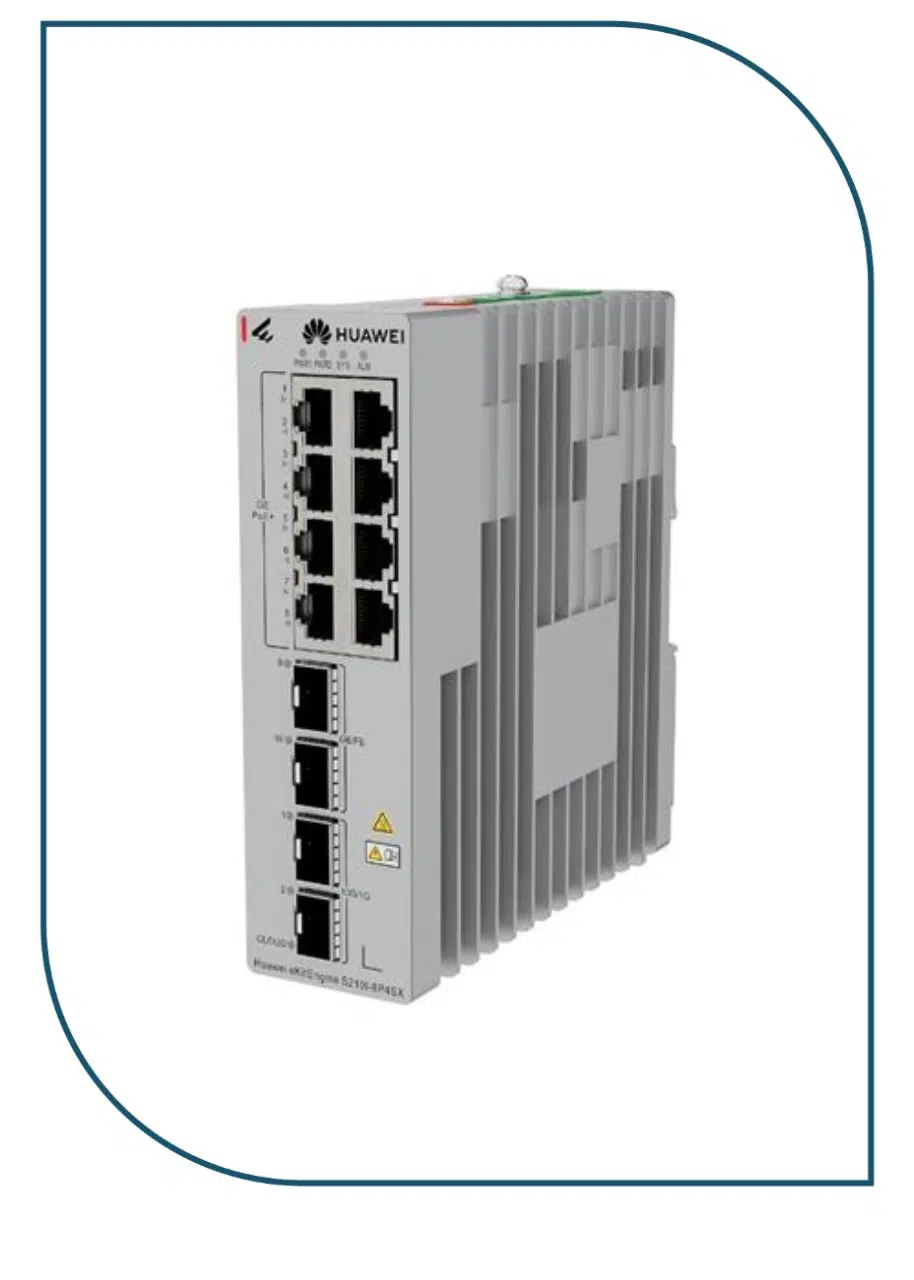

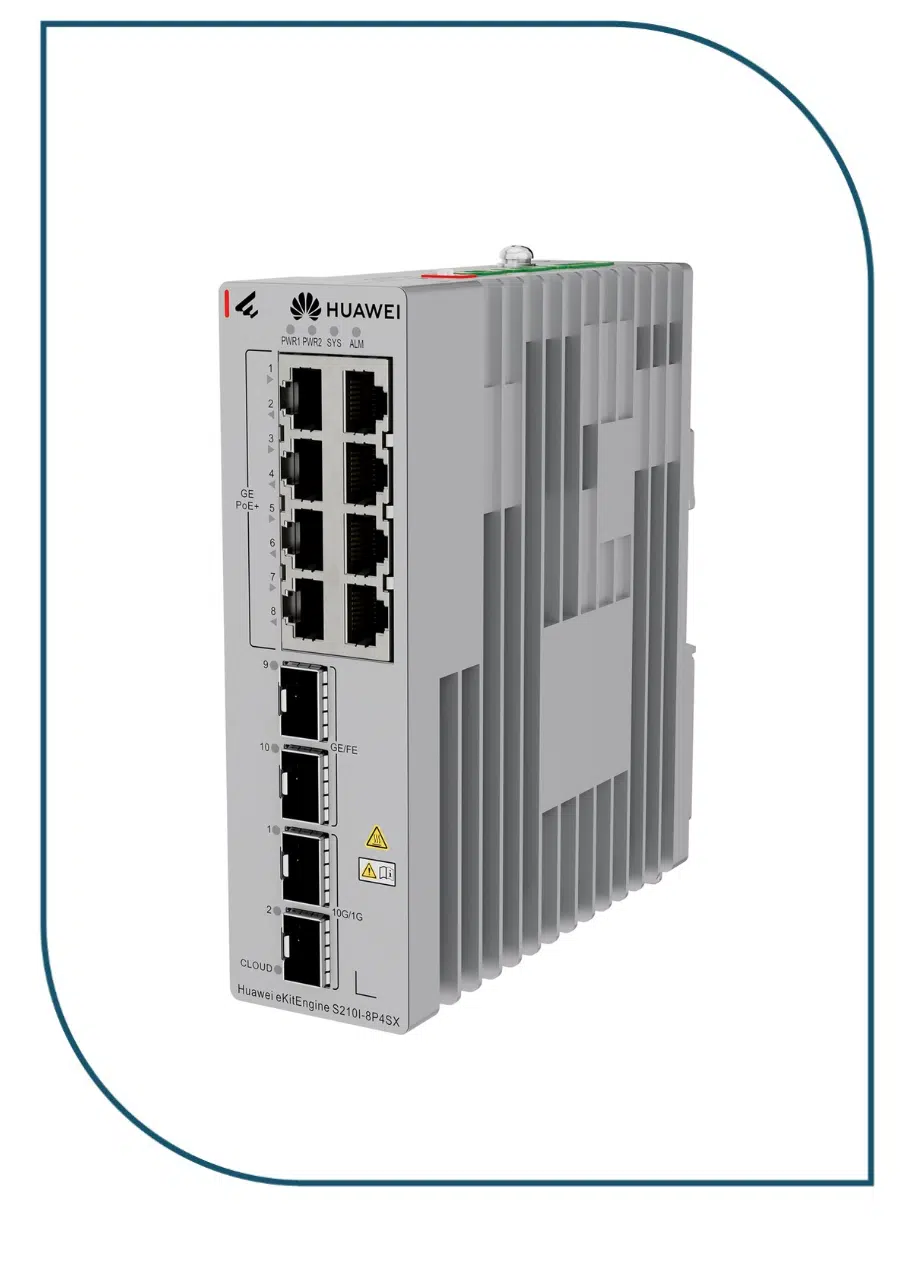

The HUAWEI eKitEngine S210I-8P4SX is an industrial network switch built for reliable connectivity in automation, surveillance, transportation, and smart-infrastructure environments. Designed with ruggedness and operational continuity in mind, this switch can handle extreme temperatures and provides power to connected devices via PoE+ ports.
Ports & Interfaces
-
8× 10/100/1000 Mbps PoE+ RJ45 ports — power devices like IP cameras, access points, sensors with up to ~240 W PoE budget total.
-
2× GE SFP fiber ports — for standard gigabit fiber uplinks.
-
2× 10 GE SFP+ uplink ports — high-speed backbone connections.
-
1× DI/DO interface — integrates with industrial automation systems.
Industrial-Grade Build
-
Fanless / natural heat dissipation for silent, low-failure operation.
-
IP40 protection and surge/risk protections against overvoltage, reverse polarity, and overheating.
-
Wide operating temperature range: roughly –40 °C to +75 °C (varies by installation and airflow).
-
DIN-rail mounting and metal enclosure for industrial racks/cabinets.
Power & PoE Features
-
PoE+ support per 802.3af/at standards with a power budget up to ~240 W for powering PD devices (e.g., cameras, APs).
-
Perpetual PoE ensures uninterrupted power to connected PDs even during reboot or firmware updates.
-
Redundant power support (1+1) with dual DC/AC options increases reliability.
Management & Networking
-
Manageable via local Web GUI or Huawei eKit App / SNC cloud management for remote visibility and configuration.
-
Supports Layer 2 networking features like STP/RSTP, ERPS, link aggregation, QoS, and industrial-protocol priority (e.g., PROFINET, GOOSE).
-
Switching capacity: ~60 Gbps with ~44.6 Mpps throughput.
Ideal Use Cases
-
Industrial automation (PLCs, sensors, robotics)
-
Outdoor surveillance and smart city networks
-
Transportation system control
-
Factory, plant, or hazardous-environment networking
