Description

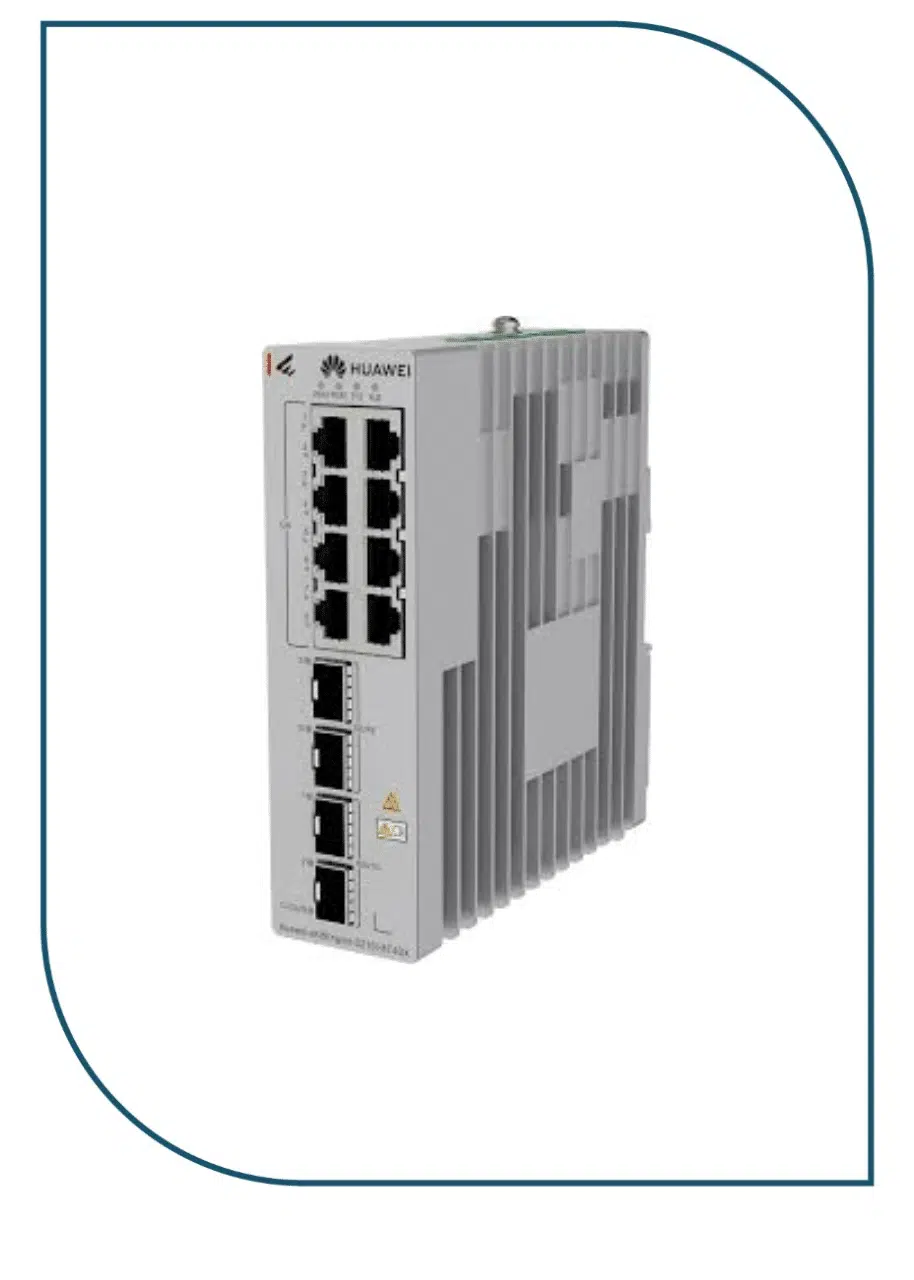

The Huawei eKitEngine S210I-8T4SX is a rugged Layer 2 industrial managed Ethernet switch built for mission-critical industrial networks. Designed for factories, transportation systems, energy facilities, warehouses, and outdoor surveillance, it features a compact DIN-rail mounting design, fanless cooling, and an extended operating temperature range to ensure reliable operation in harsh environments.

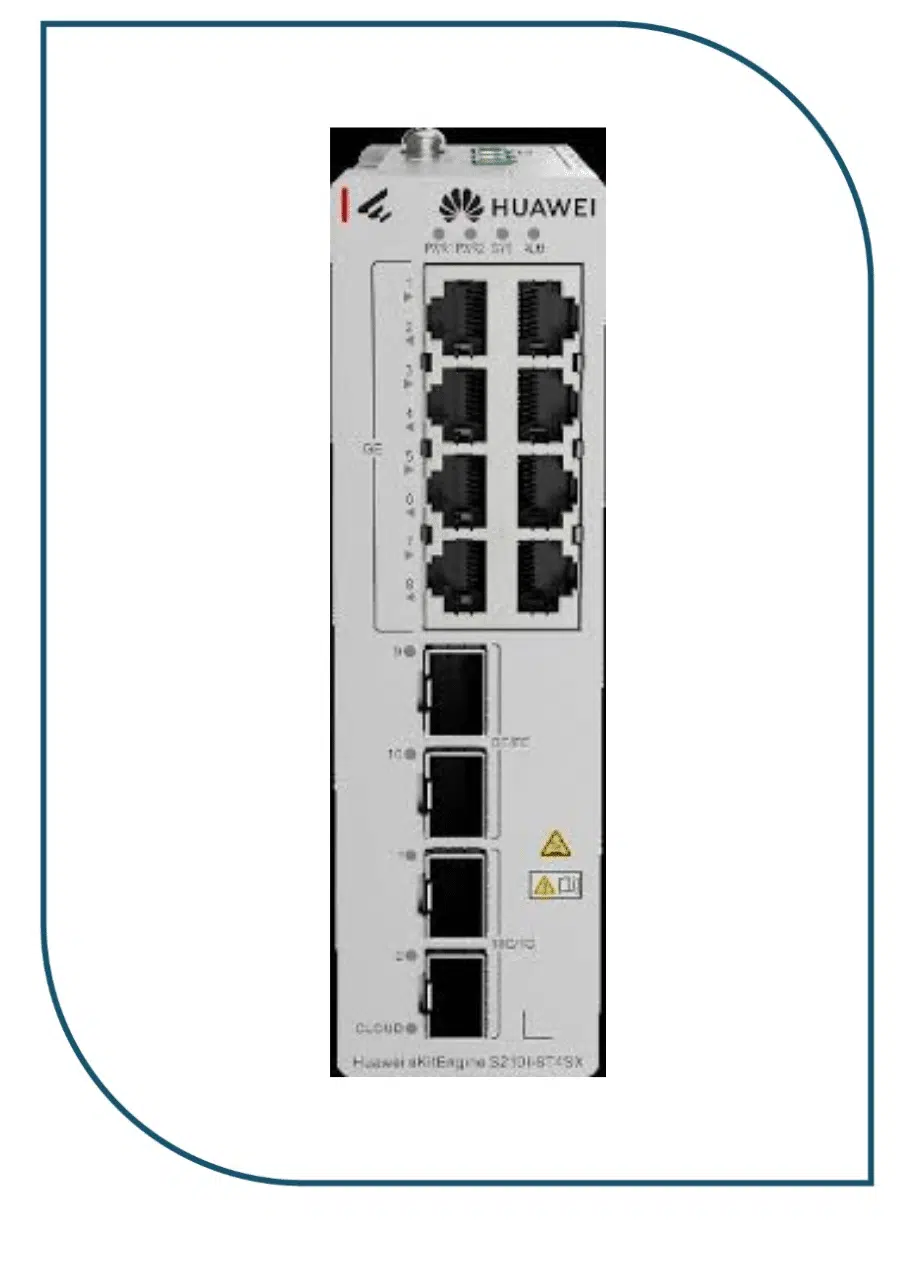

The switch provides 8 Gigabit RJ45 Ethernet ports, 2 Gigabit SFP fiber uplinks, and 2 × 10G SFP+ uplink ports, delivering flexible high-speed connectivity for industrial automation, IP surveillance, and enterprise edge deployments. It also includes dual redundant 9.6–60V DC power inputs and 1 DI/1 DO interface for industrial control integration.

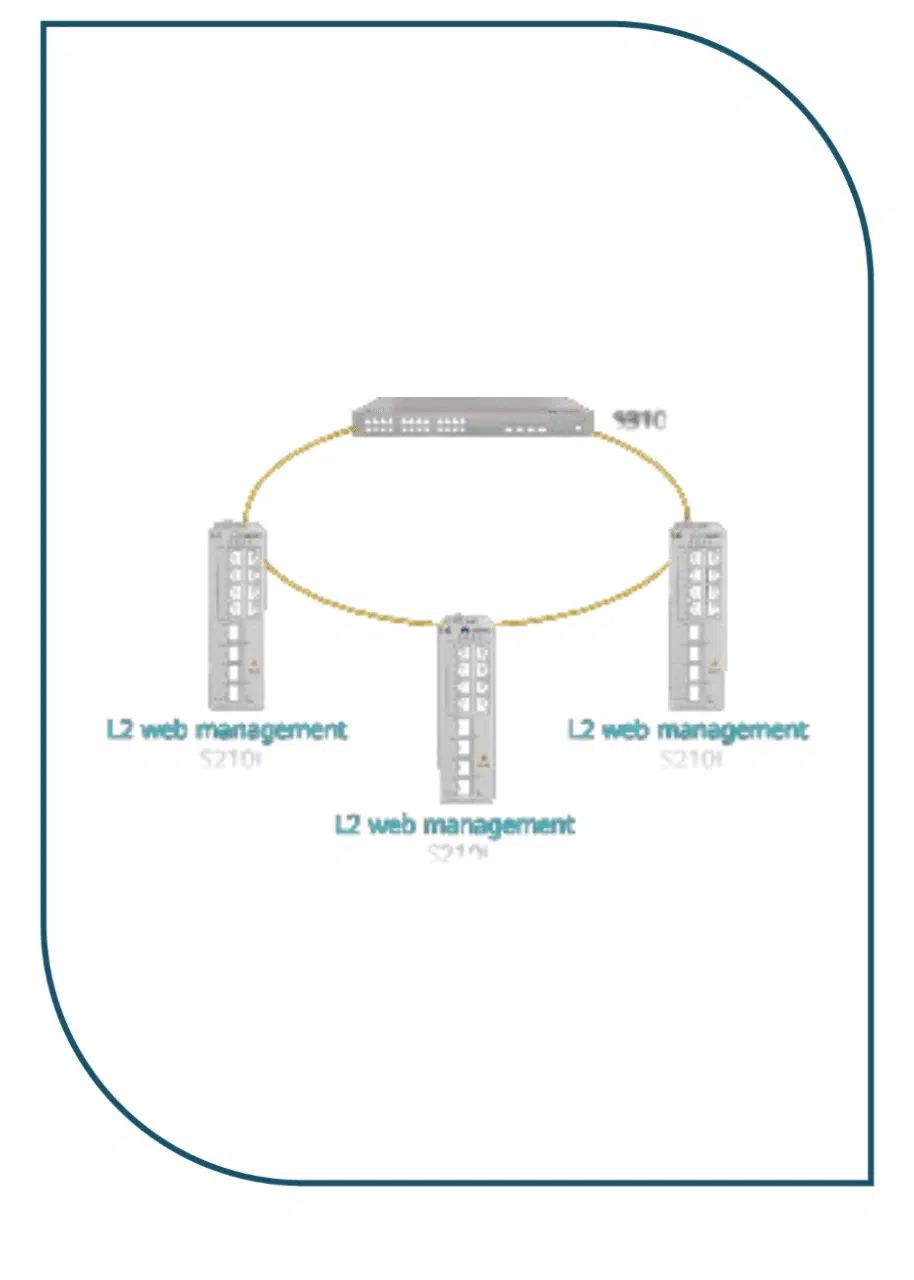

Huawei’s intelligent management platform supports Web GUI, Huawei eKit App, and cloud management, while advanced Layer 2 features such as VLAN, QoS, ACL, STP/RSTP, ERPS, link aggregation, and IGMP Snooping ensure a secure, stable, and scalable industrial Ethernet network.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S210I-8T4SX |
| Switch Type | Industrial Layer 2 Managed Switch |
| RJ45 Ports | 8 × 10/100/1000Base-T Gigabit Ethernet |
| GE SFP Ports | 2 × 1GE SFP |
| 10G Uplink Ports | 2 × 10GE SFP+ |
| PoE | Not Supported |
| Switching Capacity | 60 Gbps |
| Packet Forwarding Rate | 44.6 Mpps |
| MAC Address Table | 16K Entries |
| VLAN | Up to 4K VLANs |
| QoS | Supported |
| ACL | Supported |
| Link Aggregation | Supported |
| STP | STP, RSTP, ERPS |
| Multicast | IGMP Snooping |
| Industrial I/O | 1 × DI, 1 × DO |
| Management | Web GUI, Huawei eKit App, Cloud Management |
| Mounting | DIN Rail |
| Cooling | Fanless (Natural Cooling) |
| Power Input | Dual Redundant DC 9.6–60 V |
| Redundant Power | 1+1 |
| Housing | Industrial Metal |
| Dimensions | 150 × 44 × 133 mm |
| Operating Temperature | -40°C to +75°C (depending on installation conditions) |
| Typical Applications | Industrial Automation, Smart Factory, CCTV, Transportation, Utilities, Outdoor Networks |
