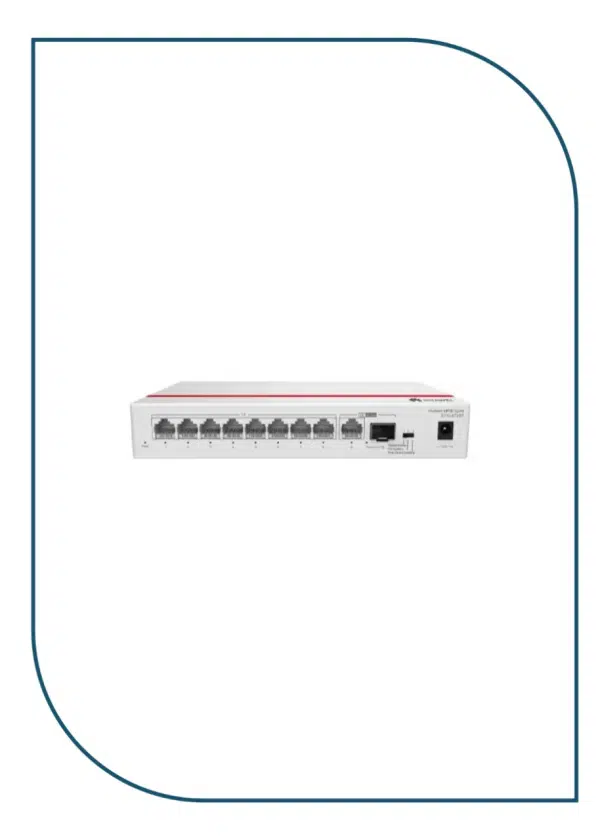

Huawei eKitEngine (S110-8P2ST) 8-Port Unmanaged PoE+ Gigabit Switch
The Huawei eKitEngine S110-8P2ST is an 8-port Gigabit unmanaged PoE+ switch featuring 8 PoE+ Gigabit ports, 1 Gigabit RJ45 uplink, 1 Gigabit SFP uplink, and a 124W PoE budget. With plug-and-play deployment, three hardware operating modes, silent fanless cooling, and flexible fiber connectivity, it is an ideal solution for IP surveillance, wireless access points, VoIP systems, and small business networks.
6.930,00 EGP 5.775,00 EGP
Description
The Huawei eKitEngine S110-8P2ST is an 8-port Gigabit Unmanaged PoE+ Switch designed for small businesses, retail stores, offices, hotels, cafés, and IP surveillance deployments. It features 8 Gigabit PoE+ RJ45 ports, 1 Gigabit RJ45 uplink port, and 1 Gigabit SFP uplink port, providing flexible copper and fiber connectivity for modern business networks. It supports plug-and-play operation with no software configuration required, making deployment quick and simple.
With a 124W PoE power budget, the switch supplies both power and data over Ethernet cables to IP cameras, wireless access points, VoIP phones, and access control devices compliant with IEEE 802.3af/at standards. It can simultaneously power up to 8 devices at 15.4W (802.3af) or 4 devices at 30W (802.3at).
The S110-8P2ST offers three hardware operating modes:
- Standard Mode for normal switching
- Port Isolation Mode to isolate downlink ports for improved security
- Flow Control Disable Mode for low-latency forwarding
It also supports Auto MDI/MDIX, IEEE 802.3x Flow Control, automatic MAC address learning, and store-and-forward switching to ensure stable and efficient Gigabit performance. Its fanless design provides silent operation, while the compact enclosure supports both desktop and wall-mount installation.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S110-8P2ST |
| Product Type | Unmanaged Gigabit PoE+ Switch |
| PoE Ports | 8 × 10/100/1000BASE-T RJ45 (PoE+) |
| Uplink Ports | 1 × 10/100/1000BASE-T RJ45 + 1 × 1GE SFP |
| Total Ethernet Ports | 9 × Gigabit RJ45 |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Budget | 124 W |
| Maximum Power Consumption | 155 W (124 W PoE Load) |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K Entries |
| Forwarding Mode | Store-and-Forward |
| Working Modes | Standard, Port Isolation, Flow Control Disable |
| Flow Control | IEEE 802.3x |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Management | Unmanaged (Plug & Play) |
| Power Supply | External 56V DC Power Adapter (100–240V AC Input) |
| Cooling | Fanless (Natural Cooling) |
| Installation | Desktop, Wall Mount |
| Housing | PC + ABS |
| Dimensions (H × W × D) | 35 × 210 × 130 mm |
| Weight | 1.11 kg |
| Operating Temperature | 0°C to +40°C |
| Ingress Protection | IP20 |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 14.88 Mpps |
| Management Platform | |
| Mounting Options | Desktop |
| POE | Support POE |
| POE Budget | |
| Switching Capacity | 20 Gbps |
| Uplink Ports | 1 |
| UpLinks Speed | 1G |
