Description

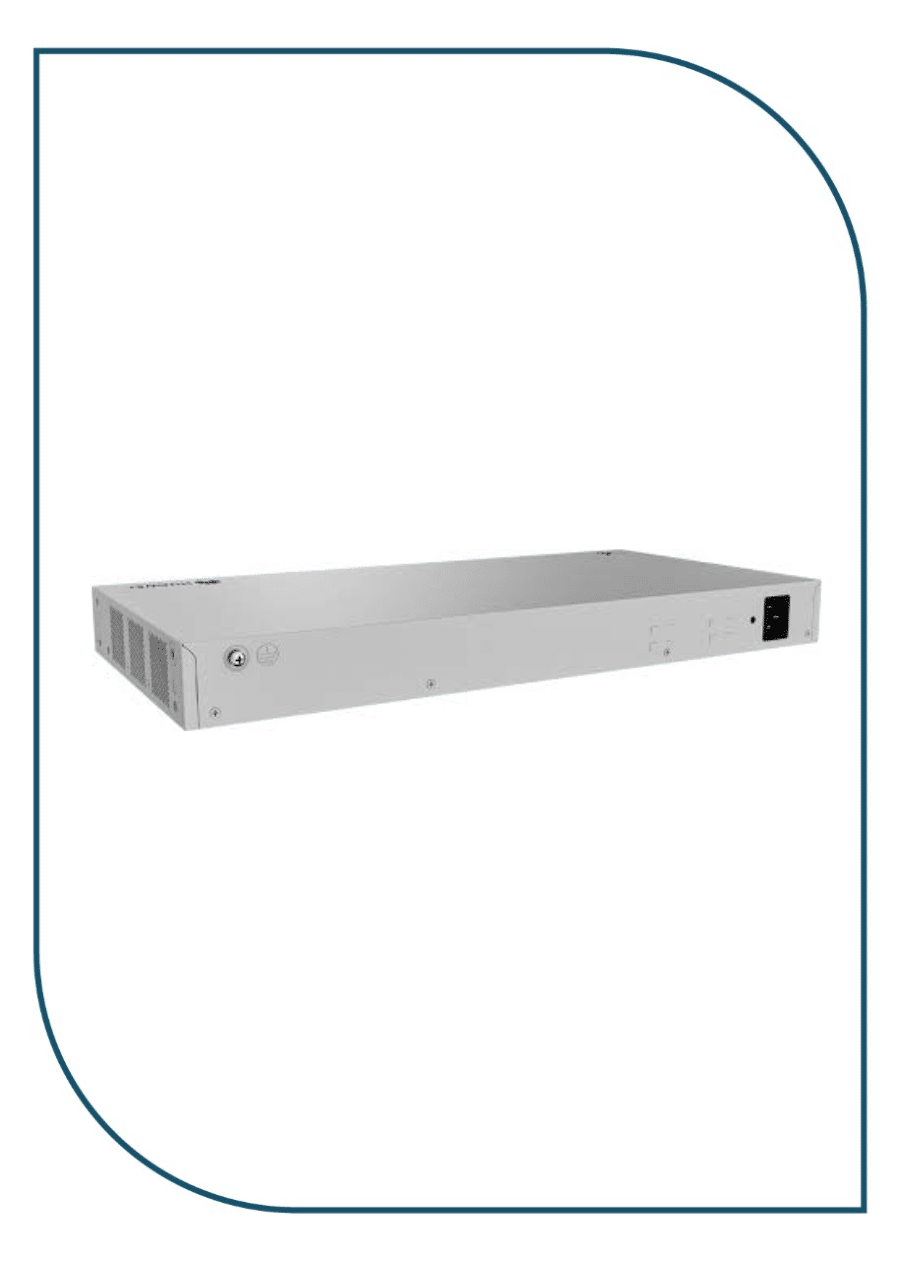

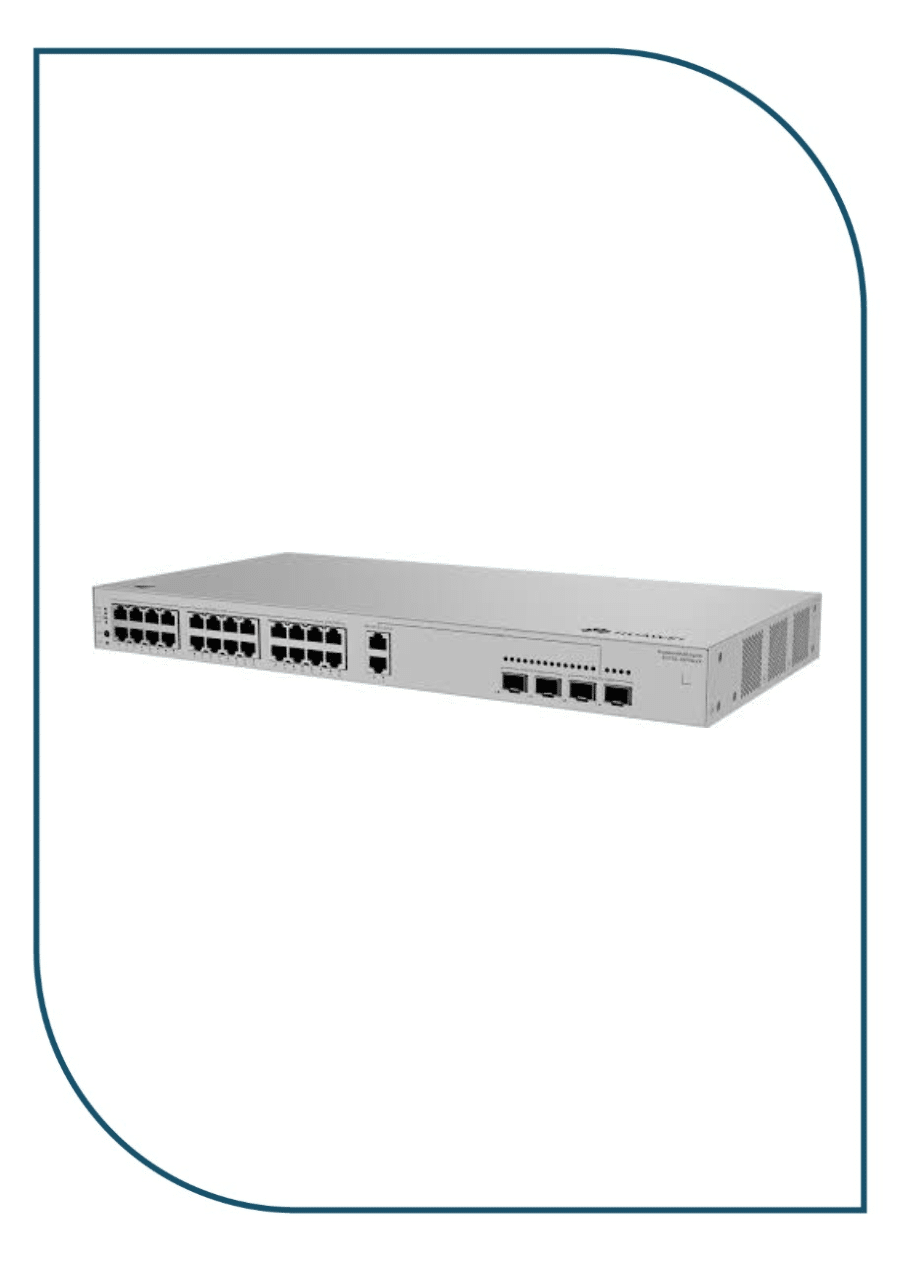

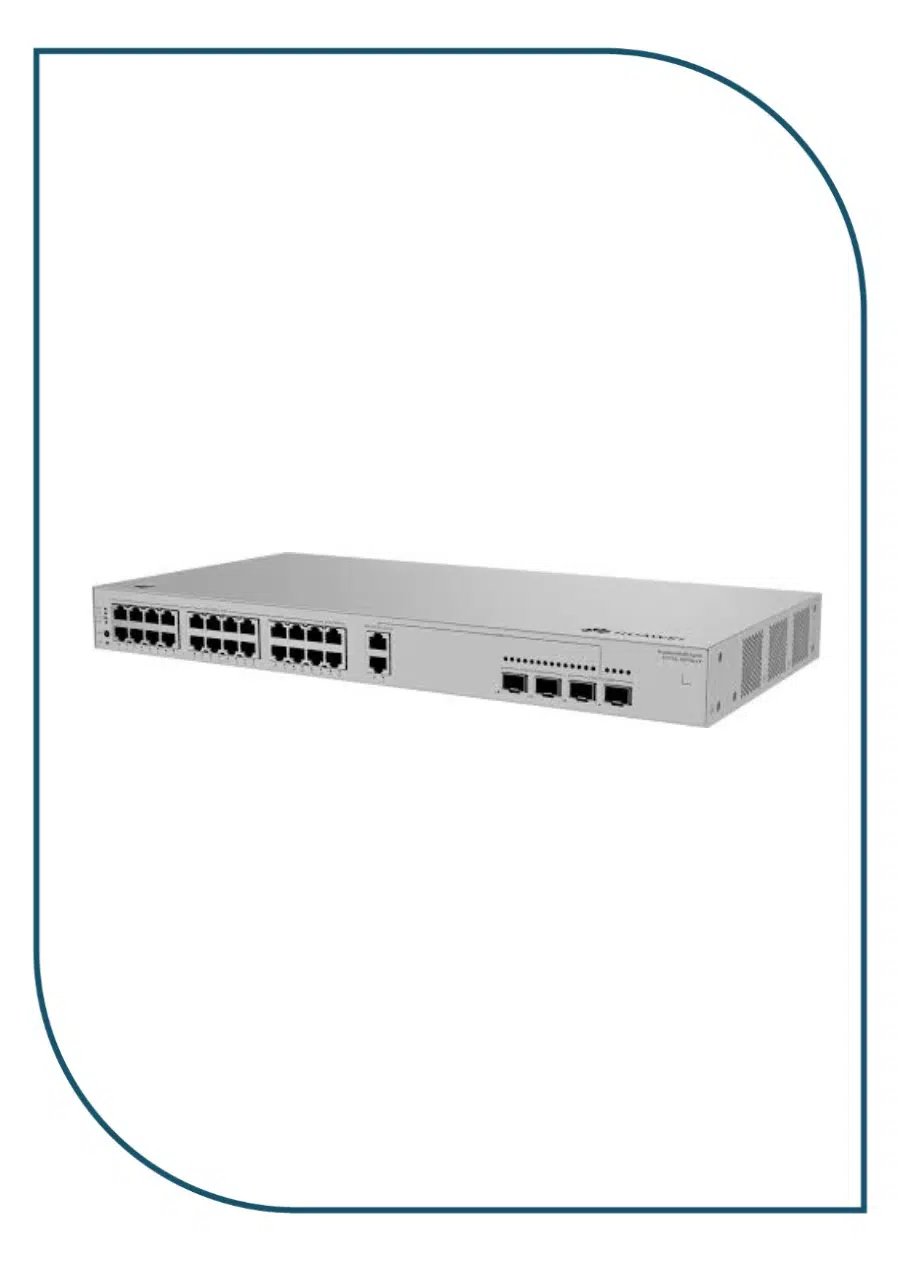

S310S-26PN4JX
| Dimensions without packaging (H x W x D) | 43.6 mm × 442 mm × 220 mm (1.72 in. × 17.40 in. × 8.66 in.) |
| Maximum dimensions | 43.6 mm × 442 mm × 227 mm (1.72 in. × 17.40 in. × 8.94 in.) |
| Dimensions with packaging (H x W x D) | 90.0 mm × 550.0 mm × 360.0 mm (3.54 in. × 21.65 in. × 14.17 in.) |
| Chassis height [U] | 1 |
| Chassis material | Metal |
| Weight without packaging | 2.81 kg (6.2 lb) |
| Weight with packaging | 3.72 kg (8.2 lb) |
| Typical power consumption | 34.14 W |
| Typical heat dissipation | 116.48 BTU/hour |
| Maximum power consumption | Without PoE: 39.40 W Full PoE load: 484.27 W (PoE: 400 W) |
| Maximum heat dissipation | Without PoE: 134.42 BTU/hour Full PoE load: 1652.38 BTU/hour |
| Static power consumption | 19.56 W |
| MTBF (Mean Time Between Failures) | 48.67 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) | 52.8 dB(A) |
| Noise at normal temperature (acoustic pressure) | 40.1 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fan modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature | –5°C to +45°C (23°F to 113°F) at 0 to 1800 m (0 to 5905.44 ft.) |
| Temperature variation rate restriction | Above 1800 m (5906 ft.) up to 5000 m (16404 ft.), decrease max operating temp by 1°C per 220 m |
| Startup temperature restriction | Device cannot start when temperature is below 0°C (32°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude | 0–5000 m (0–16404 ft.) |
| Storage altitude | 0–5000 m (0–16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage | – AC: 100 V AC to 240 V AC, 50/60 Hz – High-voltage DC: 240 V DC |
| Input voltage range | – AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz – High-voltage DC: 190 V DC to 290 V DC |
| Maximum input current | 6 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 256 MB |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Power supply surge protection | Differential mode: ±6 kV Common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling with intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certifications | EMC certification Safety certification Manufacturing certification |
