Description

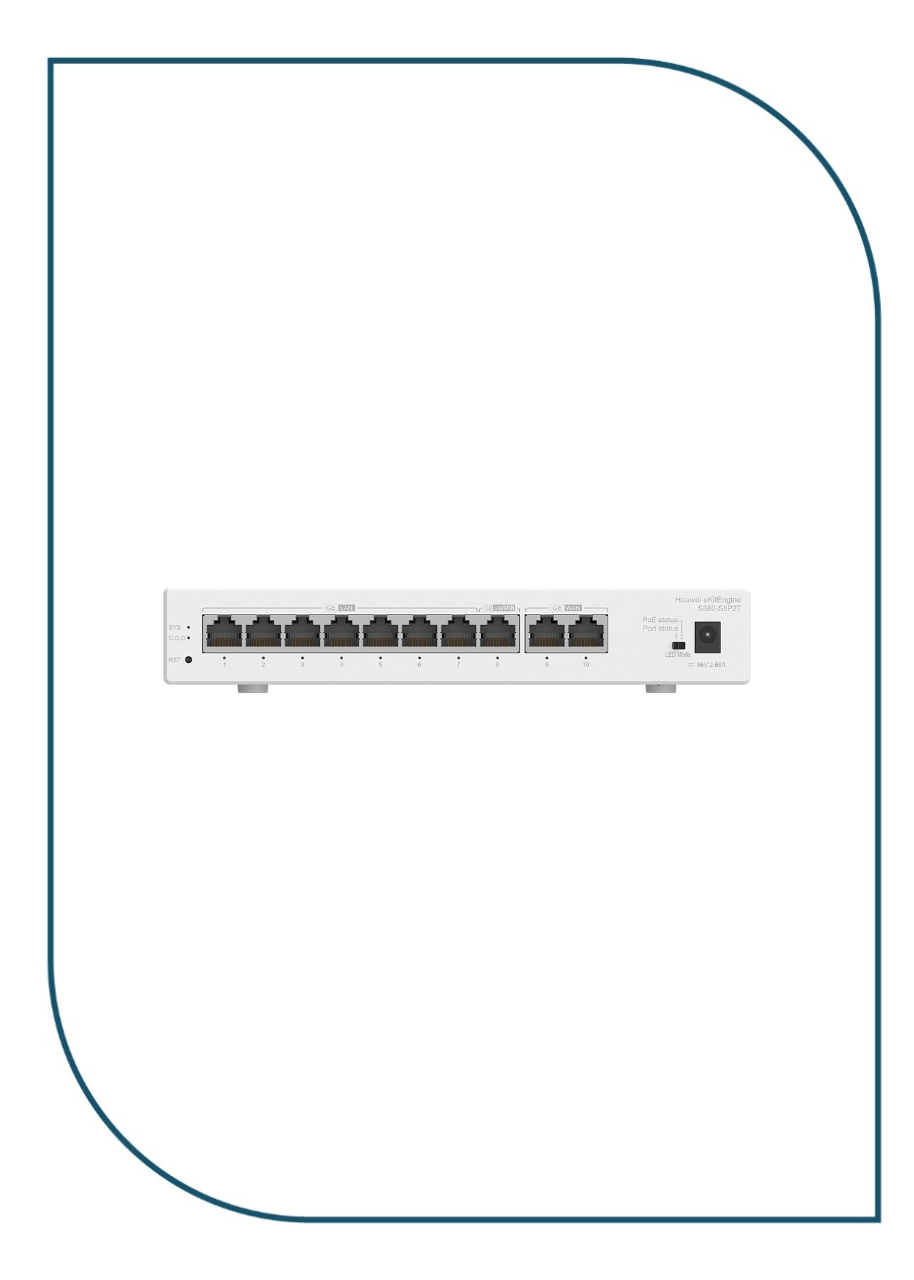

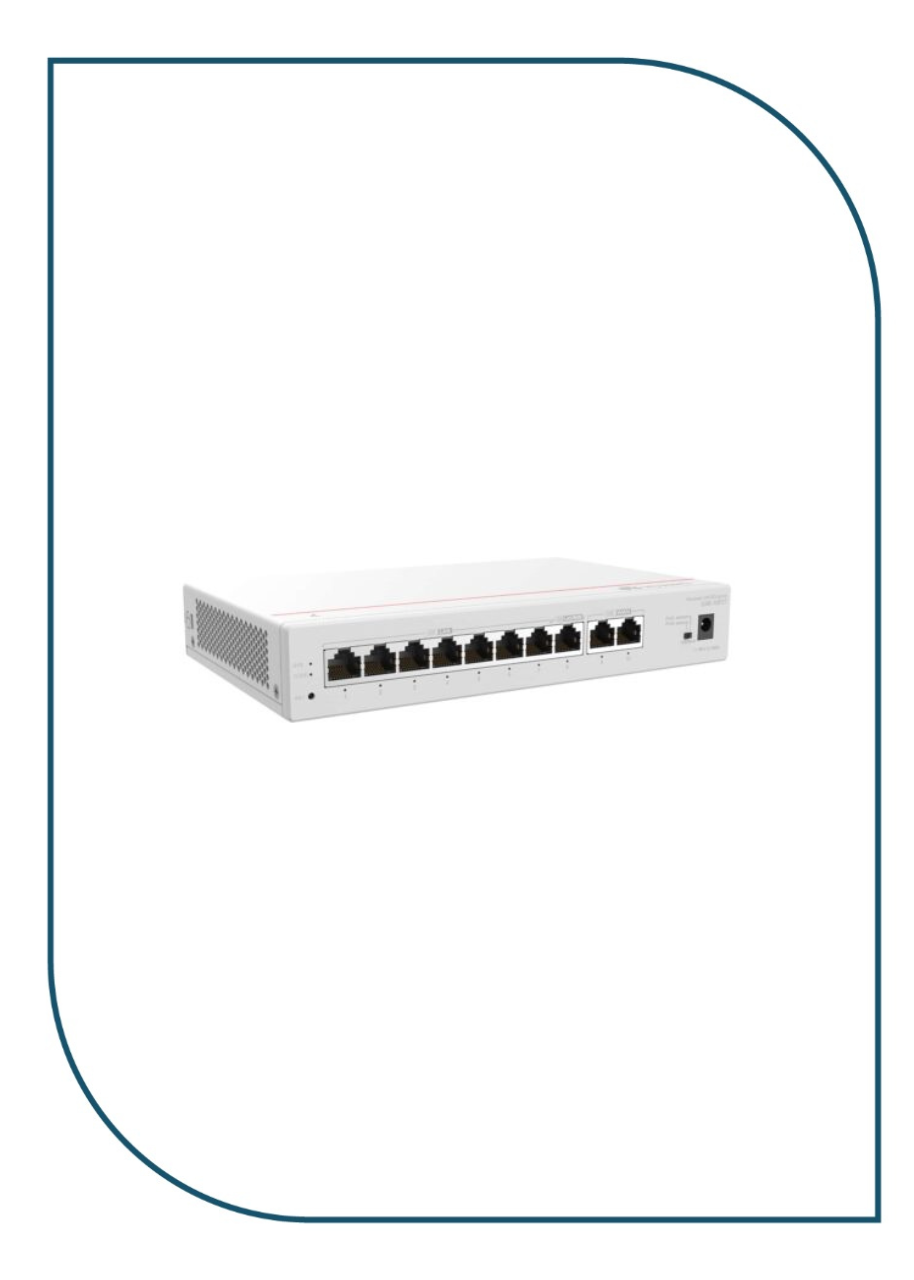

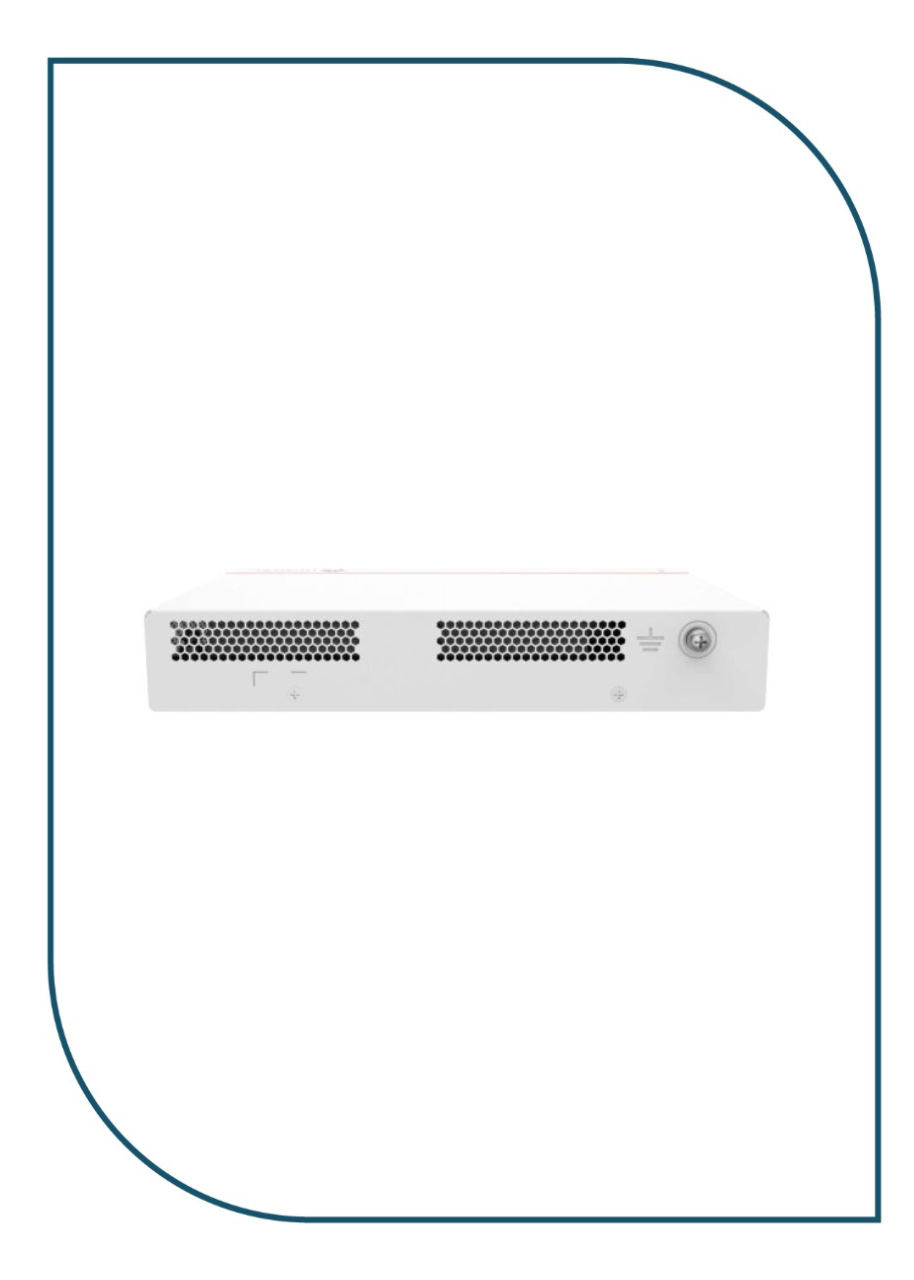

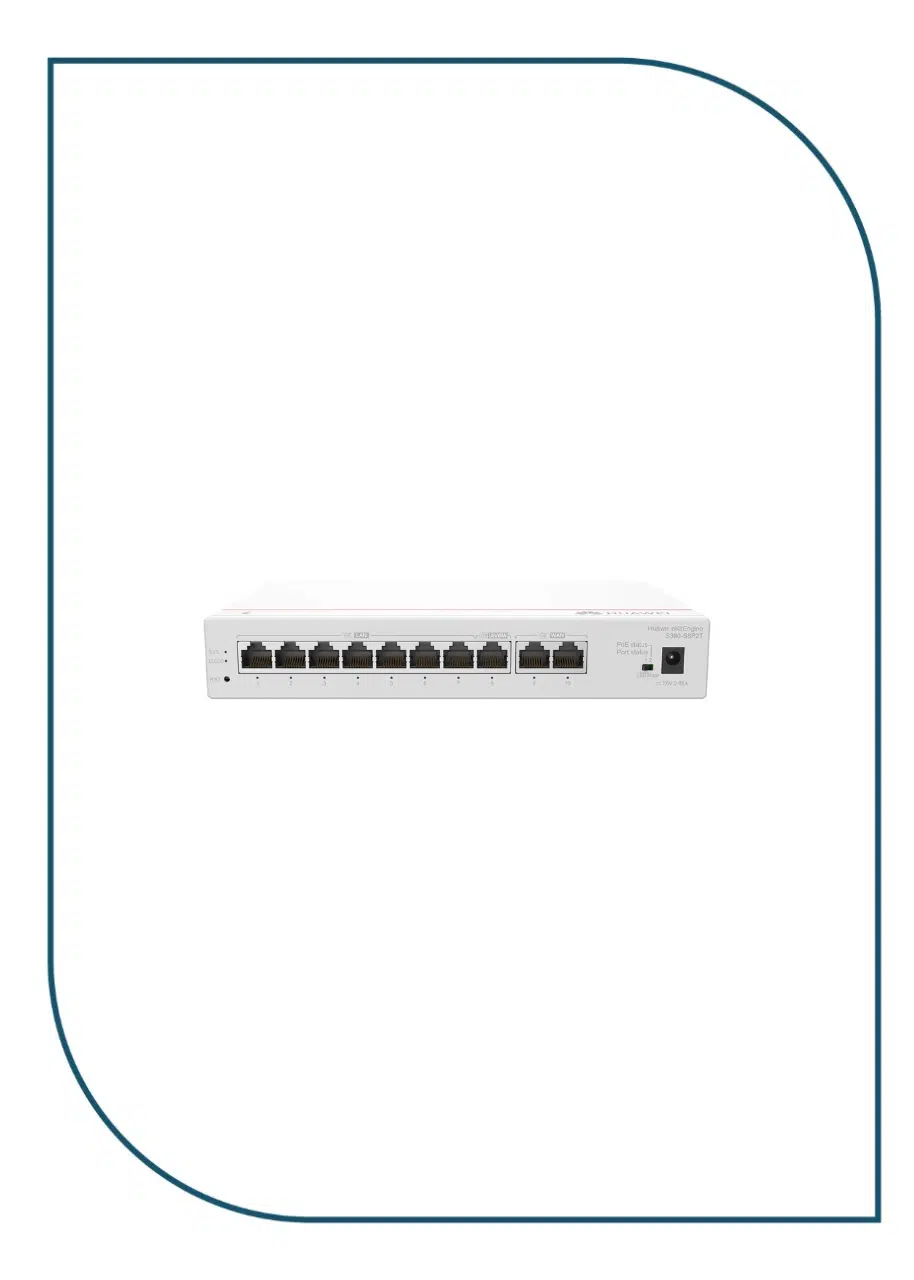

S380-S8P2T
Huawei eKitEngine S380 series Multi-Service Gateway include various models, such as those with 4 downlink GE electrical ports, 8 downlink GE electrical ports (PoE/non-PoE ports), or GE uplink ports. S380-S8P2T features like easy installation and deployment, as well as flexible Ethernet networking, the products can be widely used for indoor coverage in SME markets such as SOHO enterprise office, economic hotels, factories, primary and secondary education, and building security.
- Powerful : 50% larger connection capacity
- Fast: 2x faster forwarding
- Stable: PoE on all ports, compatible with 100+ types of non-standard terminals
Power Supply System
The device uses the power adapter delivered with the device to supply power to the device and the connected PD. The power adapter can provide 124 W PoE power, which ensures full PoE power on 8 ports in compliance with 802.3af or on 4 ports in compliance with 802.3at.
Heat Dissipation System
The device has no fans and uses natural heat dissipation.
| Technical Specifications (S380-S8P2T) | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.) |
| Chassis height [U] | 0.8 |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.5 (3.31) |
| Weight with packaging [kg(lb)] | 1.8 |
| Typical power consumption [W] | 12.4 |
| Typical heat dissipation [BTU/hour] | 42.3 |
| Maximum power consumption [W] | 145.8 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | 497.5 |
| Static power consumption [W] | 7.53 |
| MTBF [years] | 65.36 |
| MTTR [hours] | 2 |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| WAN ports | 2 x GE WAN |
| LAN ports | 8 x GE LAN (124 W PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz |
| Power adapter output: 56 V DC | |
| Input voltage range [V] | Power adapter input: 90–290 V AC; 47–63 Hz |
| Maximum input current [A] | 2.68 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
