Description

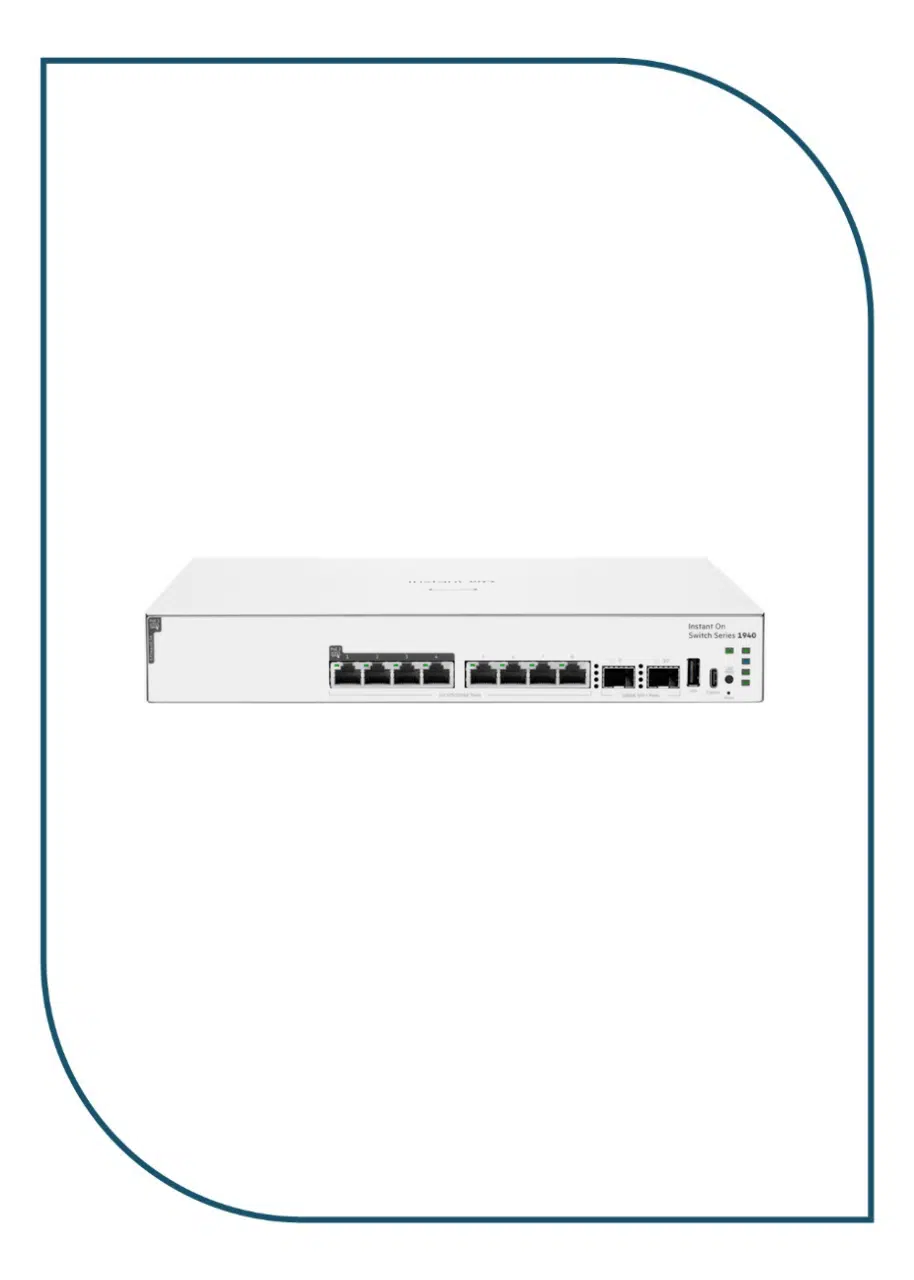

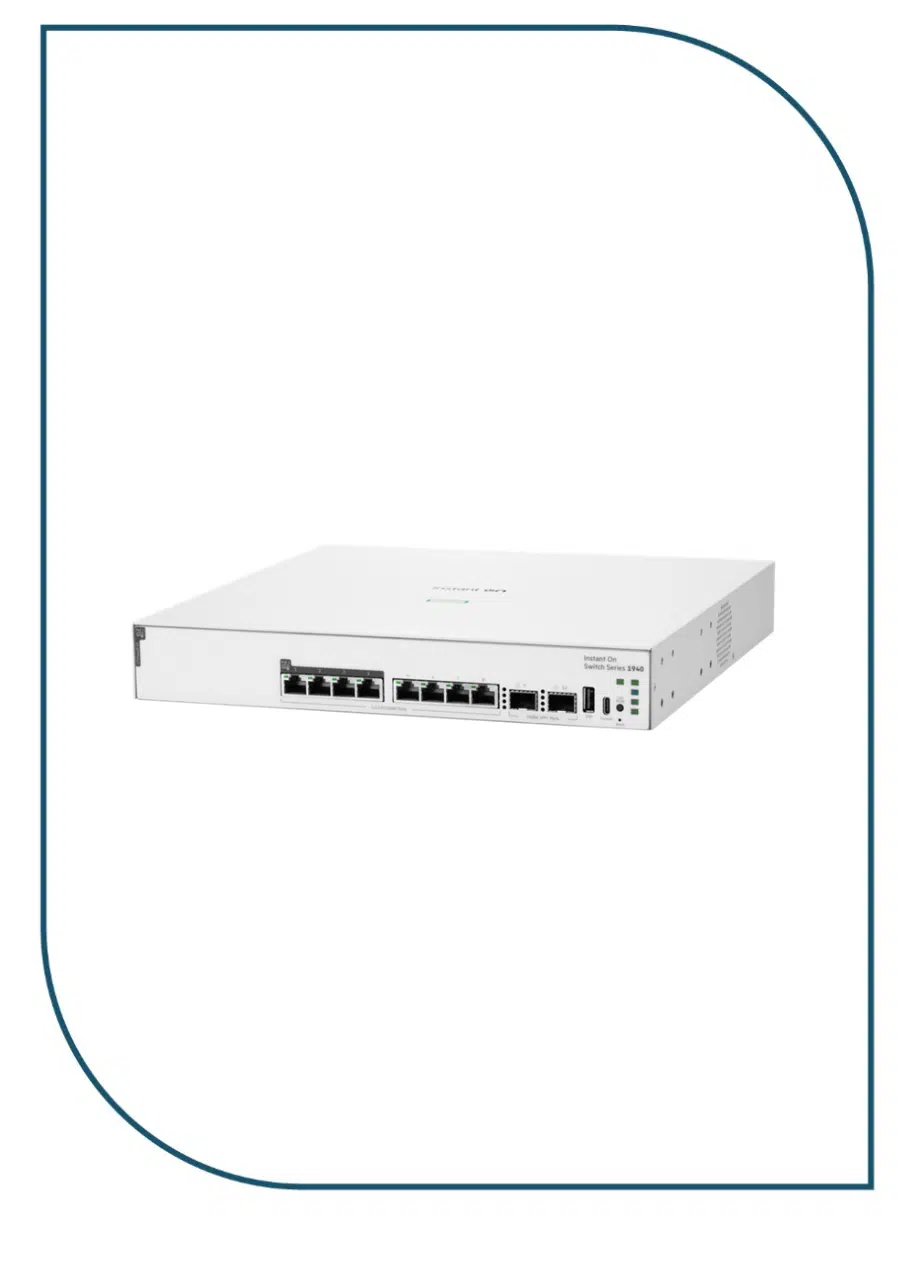

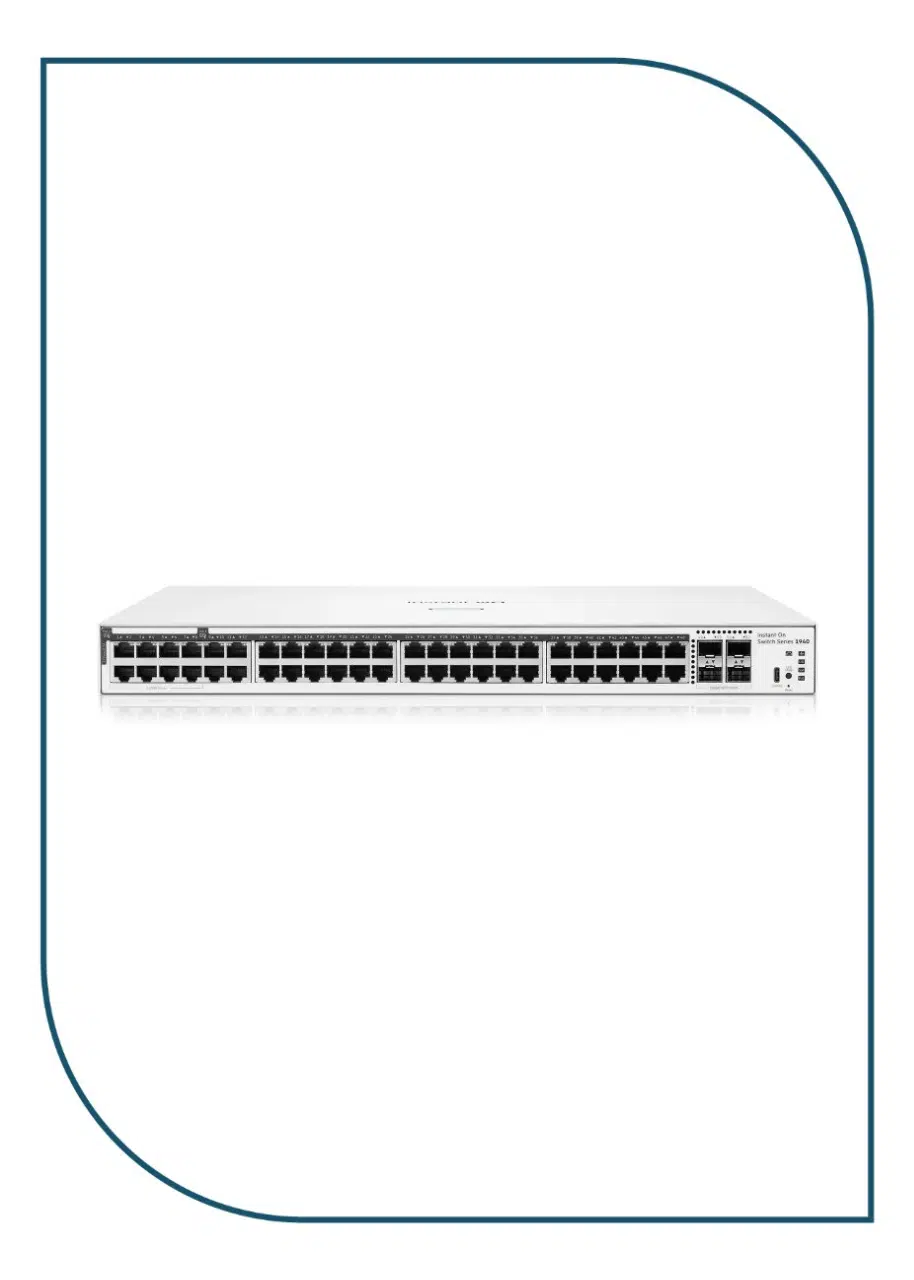

The HPE Networking Instant On Switch 1940 S4A35A is a high-capacity managed PoE switch designed for small and medium-sized businesses that require high-density Gigabit connectivity, faster 2.5GbE ports, and high-speed network uplinks.
The switch provides 40 × Gigabit Ethernet ports and 8 × 2.5GbE ports. The 40 Gigabit ports support Class 4 PoE, while the 8 × 2.5GbE ports support Class 6 PoE, making the switch particularly suitable for powering modern high-performance Wi-Fi access points, IP cameras, VoIP phones, and other PoE devices. The complete switch has a substantial 600W PoE power budget.
For network uplinks and aggregation, the S4A35A includes 4 dedicated SFP+ ports, supporting high-speed fiber connections of up to 10GbE. This configuration is especially useful where multiple 2.5GbE access points need faster uplinks to the network core or servers.
The S4A35A is part of the HPE Networking Instant On 1940 family, introduced as a newer SMB switching platform with enhanced 2.5GbE and PoE capabilities.
Specifications
| Specification | Details |
|---|---|
| Brand | HPE Networking |
| Series | Instant On 1940 |
| Model | S4A35A |
| Product Type | Managed PoE Switch |
| Gigabit Ports | 40 × 1GbE |
| 2.5GbE Ports | 8 × 2.5GbE |
| Total RJ45 Ports | 48 |
| Gigabit PoE | Class 4 PoE |
| 2.5GbE PoE | Class 6 PoE |
| Total PoE Budget | 600W |
| SFP+ Uplink Ports | 4 × SFP+ |
| SFP+ Speed | Up to 10GbE |
| Management | Managed / Smart Managed |
| Target Market | Small & Medium Businesses |
| Typical Applications | Wi-Fi APs, IP Cameras, VoIP Phones, IoT Devices |
| High-Speed Access | 2.5GbE |
| Fiber Uplinks | SFP+ |
| Part Number | S4A35A |
