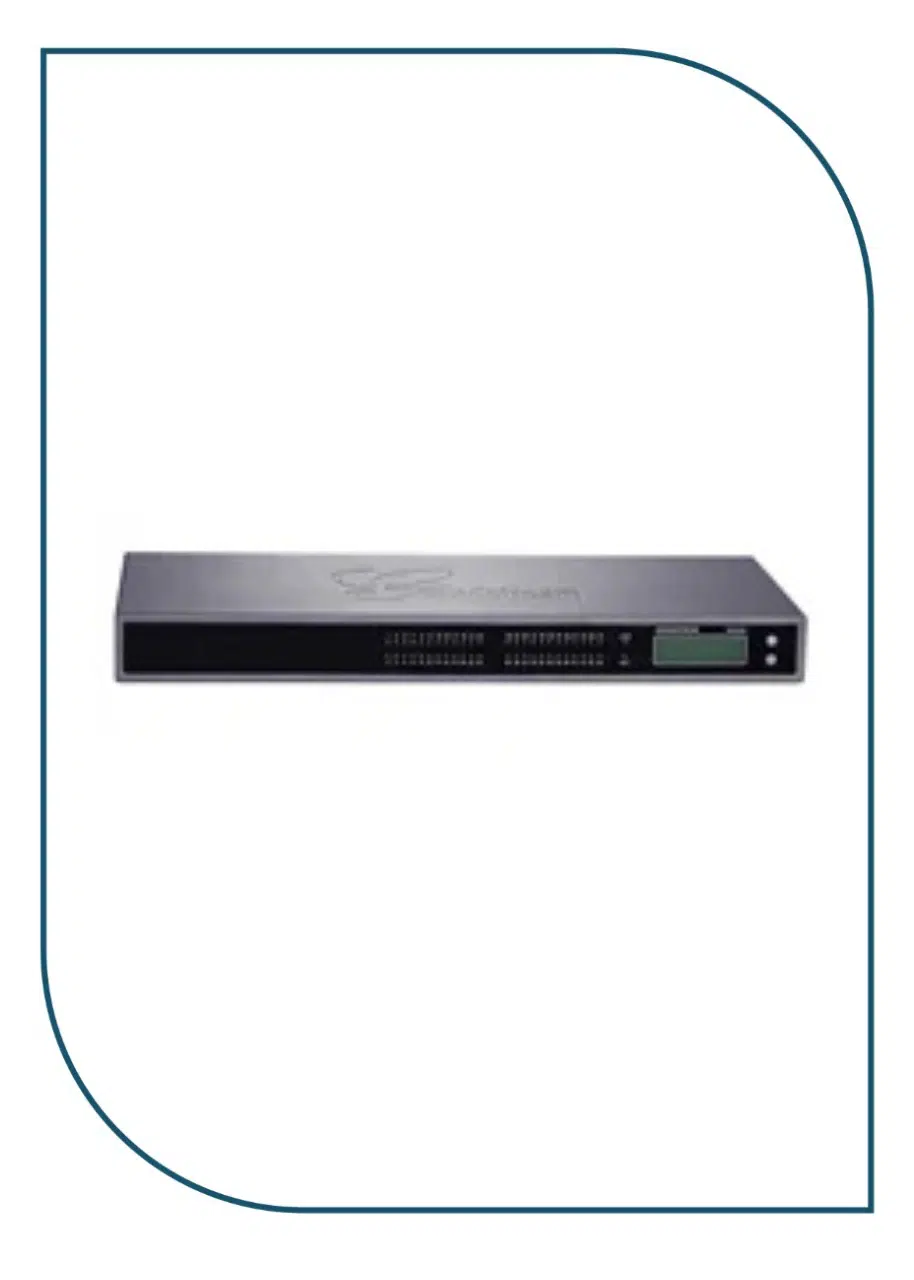

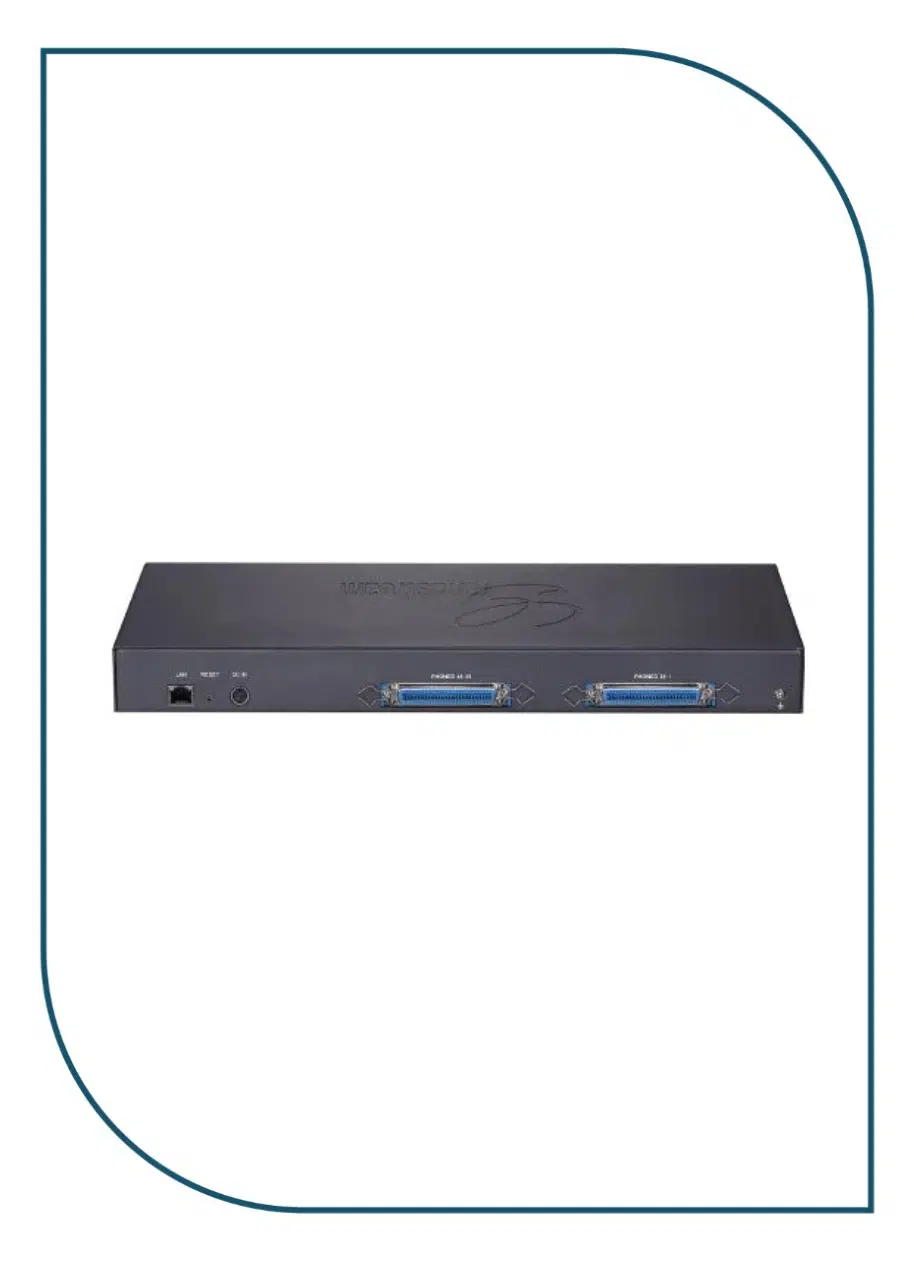

Grandstream GXW4248 V2 Analog FXS IP Gateway- 48 Port

Description

The Grandstream GXW4248 V2 is a next generation analog VoIP gateway featuring high-density and performance. The gateway is fully compliant with SIP standard and interoperable with various VoIP systems, analog PBX and phones on the market. The GXW4248 V2 features multiple FXS analog telephone ports, superb voice quality, rich telephony functionalities, easy provisioning, flexible dialing plans, advanced security protection, and strong performance in handling high volume voice calls.

Grandstream GXW4248 V2 FXS Analog VoIP Gateway Key Features

• 48 FXS ports
• 1 Gigabit network port
• 132×48 backlit graphic display with support for multiples languages
• 4 SIP server profiles per system, independent SIP account per port
• Supports 16KHz wide-band voice sampling rate and wide-band codecs such as Opus and G.722
• Carrier-grade security features including secure boot, unique certificate and random default password per device, dual firmware images
• Supports simultaneous 3-way voice conferencing per port
• Supports GDMS (cloud) provisioning/monitoring

The GXW4248 V2 offers both small and medium businesses a cost-effective hybrid IP and analog telephone system that allows users to enjoy the benefits of VoIP communications while still preserving investment on existing analog phones, Fax machines and legacy PBX systems.

Grandstream GXW4248 – Technical Specifications

Telephone Interfaces

• GXW4216/4224/4232: 16/24/32 x RJ11 & 1/1/2 50-pin Telco connectors
• GXW4248: 2 50-pin Telco connectors

Network Interfaces

• 1 x 10M/100M/1000Mbps auto-sensing RJ45 port

LED indicators

• LAN Link, LAN Activity, Connection Per Telephone Port

LCD display

• Backlit 128×32 graphic LCD display with support for multiple languages

Voice-over-Packet Capabilities

• Window based carrier grade line echo cancellation, dynamic jitter buffer, modern detection & auto-switch to G.711

Voice Compression

• G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC

Fax over IP

• T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
• Pass-through, Fax data pump V.17, V.21, V.27ter, V.29 for T.38 fax relay

Telephony Feature

• Caller ID display or block, call waiting, blind or attended call transfer, call forward, do not disturb, 3-way conference, last call return, paging, message waiting indicator LED (NEON LED) support and stutter tone, auto dial

QoS

• DiffServ, TOS, 802.1P/Q VLAN tagging

Network Protocols

• TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP
