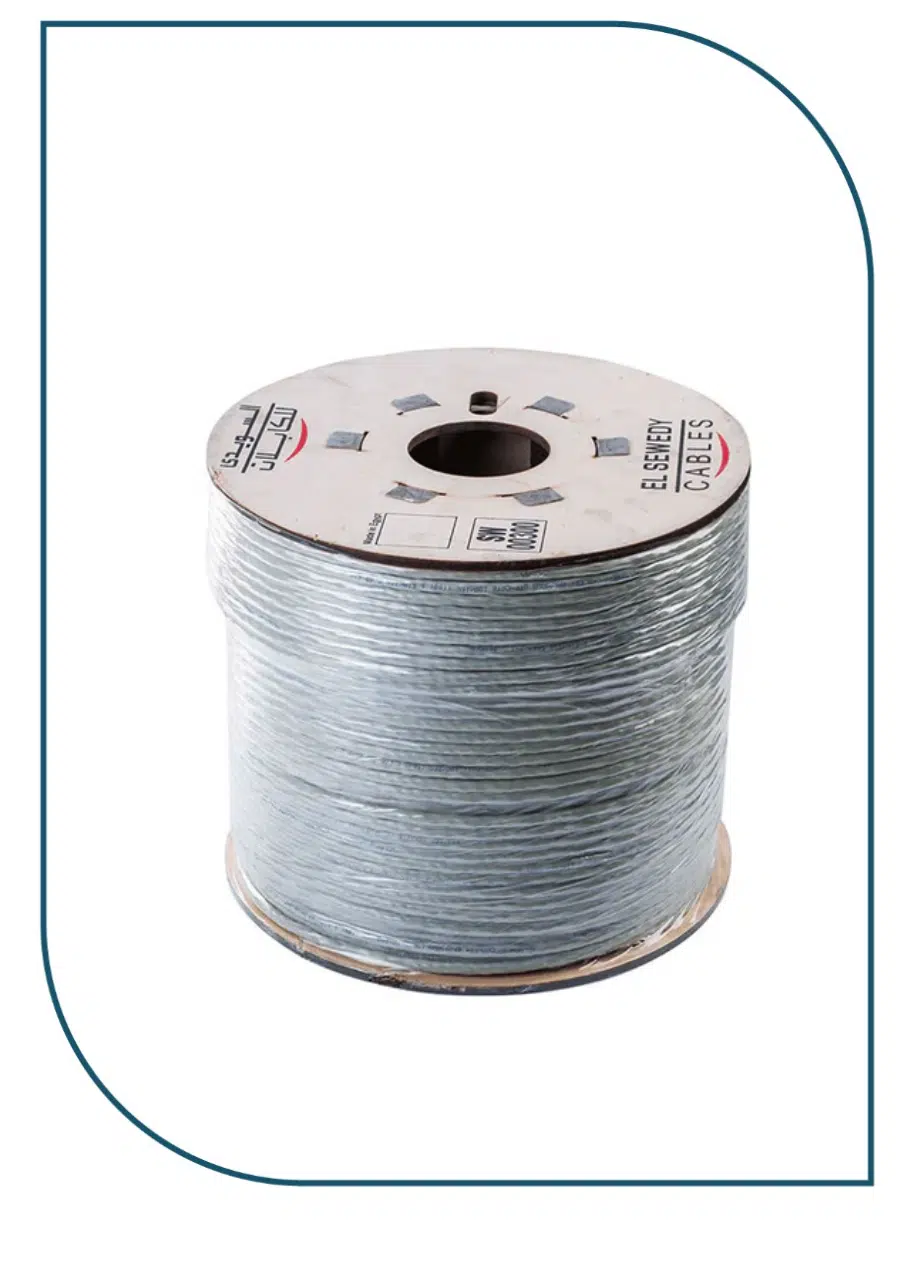

Elsewedy Cat6 U/UTP LSZH (250 MHz) 23AWG White, 305m SW12121221

Part Number
SW121 21221

Description
Cat6 U/UTP LSZH (250 MHz) 23AWG White, 305m

Cabling application:

• Structured Cable for Campus, Riser & Horizontal Installation, in conditions of heightened electromagnetic impacts.

• Operated on frequencies up to 250 MHz.

• Compatible with all Known Connection systems according to EN 50173.

• Typical applications include PBX, V.11, X.21, ISDN, Ethernet (10Base-T), ATM-25/52/155 Mbit/s, 100VG-AnyLAN, Fast Ethernet (100BASE-TX), Token Ring 16/100 Mbit/s, 1000BASE-T, PoE, PoE+, PoE++

Applicable standards:

• Cable & Cabling Standards: ISO/IEC 11801-1, EN 50173-1, EN 50288-6-1, ANSI/TIA/EIA-568.2-D and IEC 61156-5

• Fire Propagation Test: IEC60332-1; EN50265-2-1Class B

• Zero Halogen, no corrosive gases (for LSZH cable): IEC 60754-2

• Smoke density (for LSZH cable): IEC 61034-2

  Elsewedy Cat6
