Description

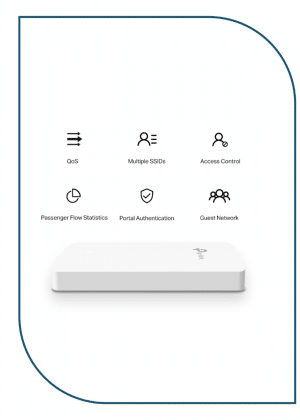

EAP615-Wall
| HARDWARE FEATURES | |
|---|---|
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| Power Consumption | • EU: 10W (802.3at PoE, PoE Out off) • US: 11.5W (802.3at PoE, PoE Out off) |
| Dimensions ( W x D x H ) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 50㎡(600 ft²)△ |
| Wireless Client Capacity | 100+△ |
| Concurrent Clients | 120+△ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) Seamless Roaming† • Beamforming MU-MIMO • Rate Limit • Load Balance Airtime Fairness • Band Steering • Reboot Schedule Wireless Schedule • RADIUS Accounting MAC Authentication Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication† Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) • FCC: |
MANAGEMENT |
|
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller Omada Hardware Controller (OC300) •Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
