Description

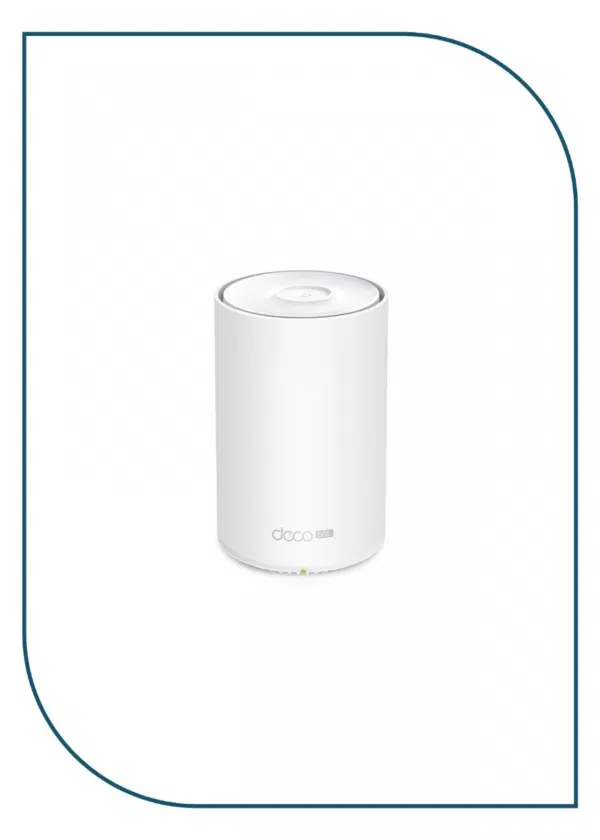

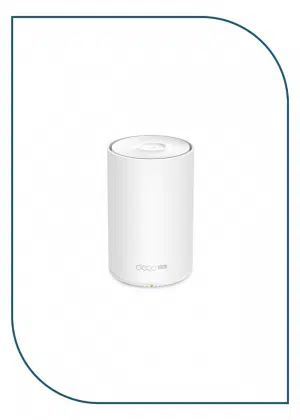

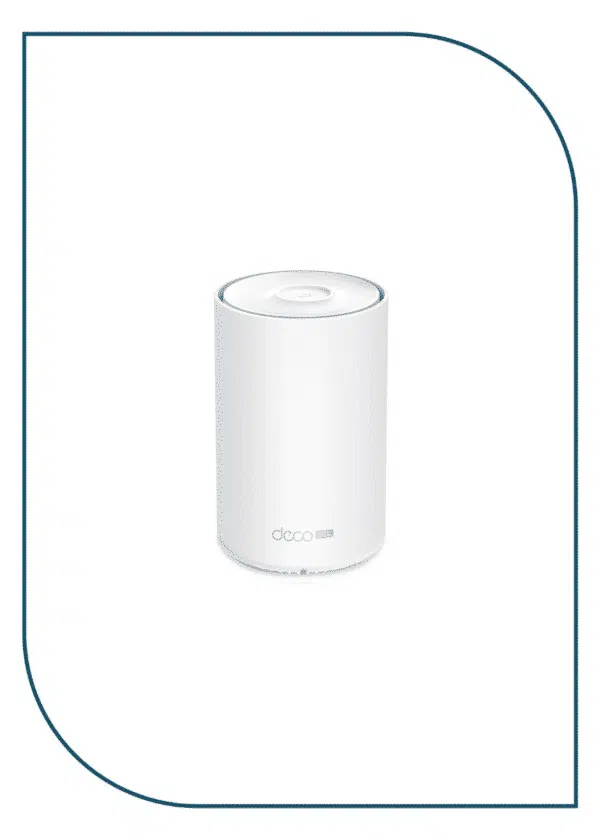

Deco X20-DSL
| SECURITY | |
|---|---|
| Network Security | SPI Firewall
Access ControlHomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal
WPA2-Personal WPA3-Personal |
| HARDWARE FEATURES | |
|---|---|
| VDSL2 Standards | ITU G.993.2, Up to 35b profile (POTS)
ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) |
| ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800
5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | High
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices |
| Working Modes | DSL (only on Deco X20-DSL)
Router Access Point |
| HARDWARE | |
|---|---|
| Ethernet Ports | 4× Gigabit Ports Per Deco X20-DSL Unit
2× Gigabit Ports Per Deco X20 Unit Supports WAN/LAN auto-sensing |
| Buttons | RESET Button |
| Ports and Connections | 1 DSL Port
Compatibility VDSL2 / ADSL2+ / ADSL2 / ADSL |
| SOFTWARE | |
|---|---|
| Protocols | IPv4
IPv6 |
| Service Kits | HomeShield |
| WAN Types | Dynamic IP
Static IP PPPoE L2TP PPTP *available on all unitsPPPoA IPoA DS-Lite *available on Deco X20-DSL |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade
TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding
UPnP |
| IPTV | IGMP Proxy
IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation
DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE:
≤20 dBm (2.4GHz) ≤23 dBm (5GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | Deco X20-DSL:
4.13 × 4.13 × 6.57 in (105 × 105 × 167mm) Deco X20: 4.33 × 4.33 × 4.99 in (110 × 110 × 114 mm) |
| Package Contents | 1-pack
1 Deco X20-DSL Unit 1 RJ45 Ethernet Cable 2 RJ11 DSL Cables 1 External DSL Splitter 1 Power Adapter 1 Quick Installation Guide2-pack 1 Deco X20-DSL Unit + 1 Deco X20 unit 1 RJ45 Ethernet Cable 2 RJ11 DSL Cables 1 External DSL Splitter 2 Power Adapters 1 Quick Installation Guide3-pack 1 Deco X20-DSL Unit + 2 Deco X20 units 1 RJ45 Ethernet Cable 2 RJ11 DSL Cables 1 External DSL Splitter 3 Power Adapters 1 Quick Installation Guide |
| OTHERS | |
|---|---|
| Certification | Deco X20-DSL:
CE, EAC, RoHS, RCM Deco X20: CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH |
