Description

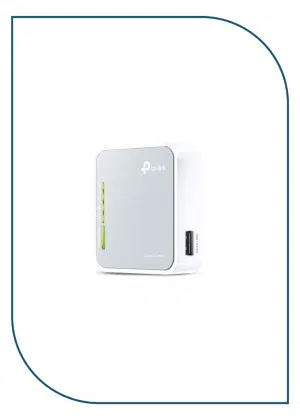

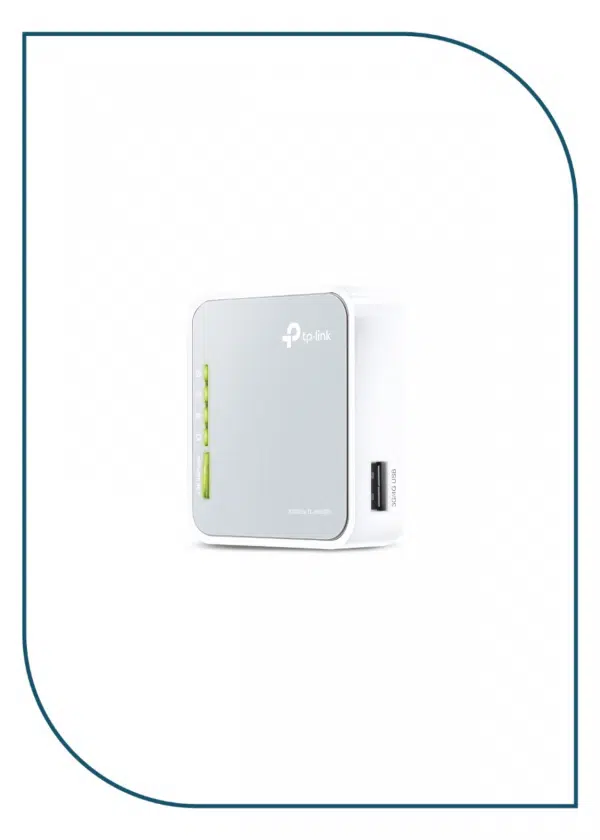

TL-MR3020
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a micro USB Port for power supply. |
| Button | Reset Button, Mode Switch |
| Dimensions ( W x D x H ) | 2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm) |
| Antenna Type | Internal Antenna |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Transmit Power | <20dBm |
| Wireless Modes | 3G Router, Travel Router (AP), WISP Client Router |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Security | Firewall, MAC filtering, Denial of Service (DoS) |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, UPnP |
| Access Control | Parental Control, Host List, Access Schedule, Rule Management |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-MR3020 router, QIG, USB Cable, Ethernet Cable |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating temperature:-10℃~60℃
Storage Temperature: -40℃~80℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
