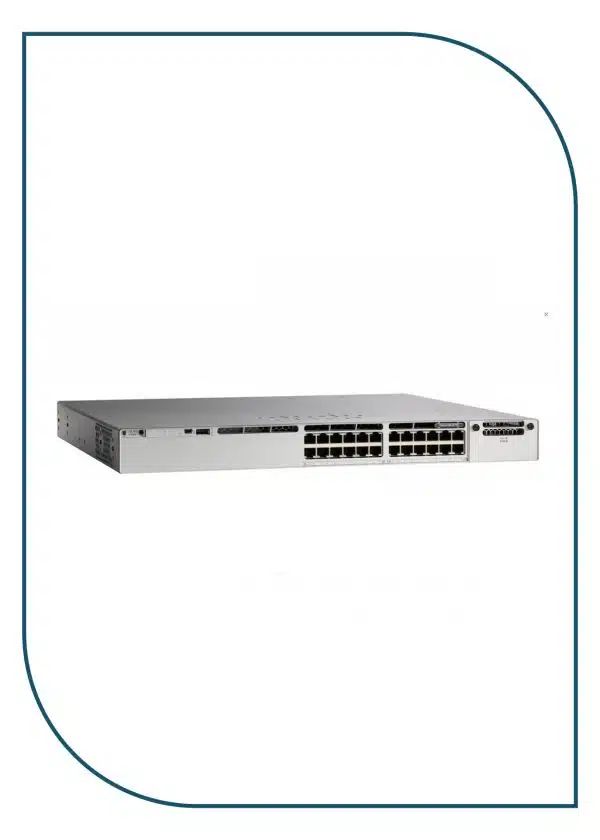

Cisco Catalyst 9300L 24-Port Gigabit Switch, 4x1G Fixed Uplinks, (C9300L-24T-4G-E)
The Cisco Catalyst C9300L‑24T‑4G‑E is a Layer 3 stackable enterprise access switch with 24 × 1 GbE copper data ports and 4 × 1 GbE fixed SFP uplinks. It runs the Network Essentials software image, making it a cost‑effective yet powerful solution for enterprise campus and branch access deployments.
Description
C9300L-24T-4G-E
The Cisco Catalyst C9300L-24T-4G-E is a Layer 3 stackable enterprise access switch with 24 × 1 GbE copper data ports and 4 × 1 GbE fixed SFP uplinks. It runs the Network Essentials software image, making it a cost‑effective yet powerful solution for enterprise campus and branch access deployments.
General & Hardware Specs
| Specification | Details |
|---|---|
| Model | Cisco Catalyst C9300L‑24T‑4G‑E |
| Series | Cisco Catalyst 9300L Series(core access) |
| Switch Type | Managed Layer 2/Layer 3 |
| Software License | Network Essentials (advanced routing not included) |
| Ports (Data) | 24 × 10/100/1000 Mbps RJ‑45 Ethernet |
| Uplink Ports | 4 × 1 GbE SFP fixed uplinks |
| Power Supply | 350 W AC PSU (fixed) included |
| PoE Support | No PoE (data‑only model) |
| Form Factor | 1 RU rack‑mountable |
| Stacking | Cisco StackWise‑320 (up to 8 switches) |
| Stacking Bandwidth | 320 Gbps |
| Management Ports | 1 × Console, 2 × USB |
| Operating Temp. | 0 °C to 45 °C typical |
Performance & Capacity
| Performance Metric | Value |
|---|---|
| Switching Capacity | 56 Gbps (standalone) |
| Forwarding Rate | 41.66 Mpps (packets/sec) |
| Stacked Switching Capacity | Up to 376 Gbps |
| Stacked Forwarding Rate | Up to 279.76 Mpps |
| MAC Address Table | 32,000 entries |
| VLAN Support | Up to 4,094 VLANs |
| SVI Support | Up to 1,000 SVIs |
| Jumbo Frames | Up to 9,198 bytes |
| Packet Buffer | 16 MB |
| QoS/ACL Scale Entries | 5,120 each |
| Flexible NetFlow (FNF) | 64,000 flows |
| IPv4 Routes | 32,000 |
| IPv6 Routes | 16,000 |
| Multicast Routing Scale | 8,000 |
Additional information
| Access Ports | 24 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 41.68 Mpps |
| Management Platform | Cisco DNA Center, Command line interface (CLI), Local Web GUI |
| Mounting Options | Rack Mount |
| POE | Not Support POE |
| Switch Layer | Layer 3 |
| Switching Capacity | 56 Gbps |
| Uplink Ports | 4 |
| UpLinks Speed | 1G |
