Description

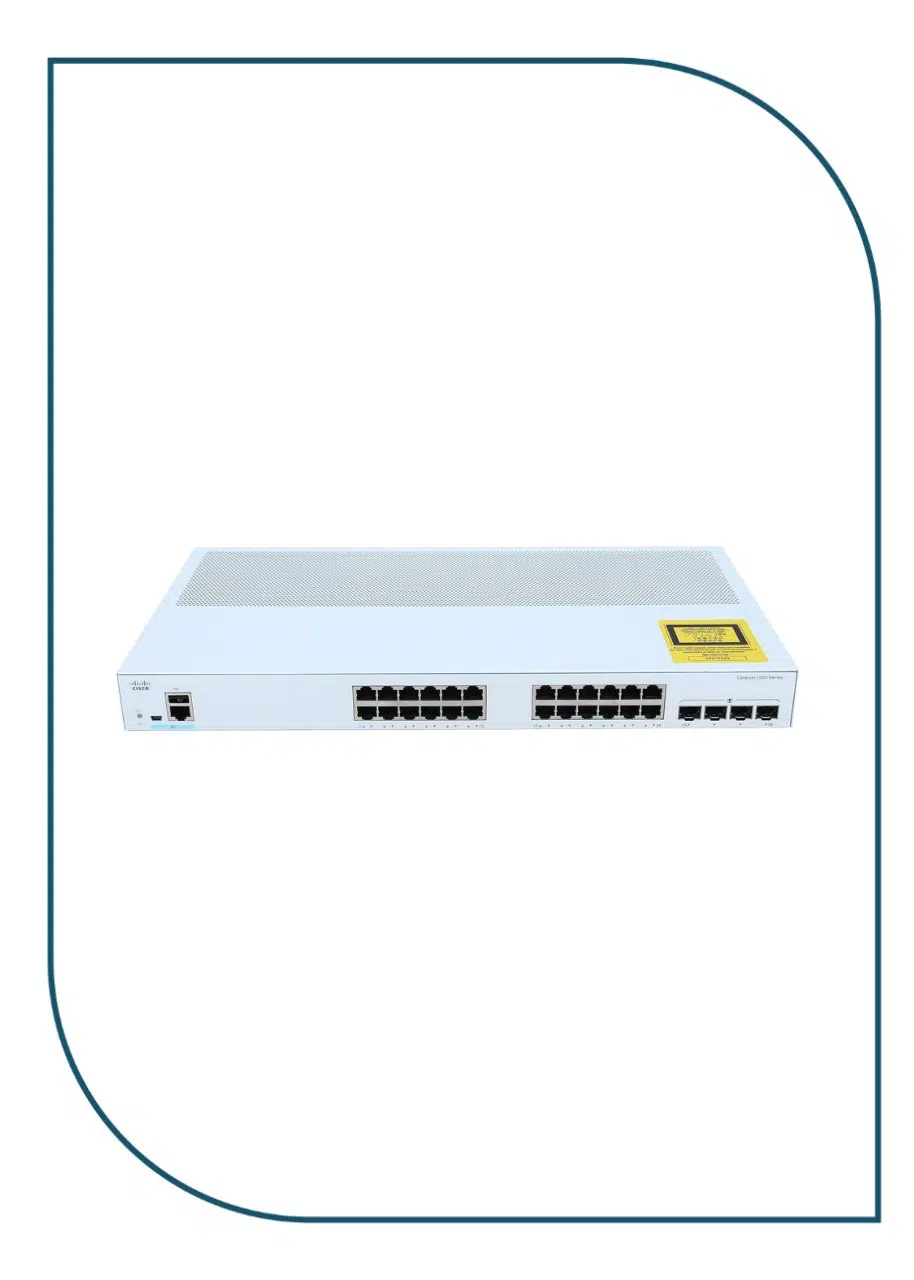

The Cisco Catalyst C1000-24T-4G-L is a reliable 24-port Gigabit Layer 2 managed switch designed for small businesses, branch offices, retail environments, and enterprise access networks. Equipped with 24 Gigabit RJ45 ports and 4 dedicated 1G SFP uplink ports, it delivers dependable wired connectivity while providing flexible fiber uplink options for backbone connections.
With a 56 Gbps switching capacity and 41.67 Mpps forwarding rate, the switch ensures smooth traffic flow for business-critical applications. Advanced networking features including VLANs, QoS, ACLs, IEEE 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, and IPv4/IPv6 static routing help improve network performance, security, and management.
The fanless design provides silent operation, making it ideal for offices, classrooms, meeting rooms, and retail stores. Built-in Web UI, CLI, SNMP, and Cisco Network Plug and Play simplify deployment and ongoing management, while the compact 1U rack-mount form factor fits seamlessly into standard network cabinets. The C1000-24T-4G-L is an excellent choice for organizations seeking enterprise-grade Cisco reliability at the network access layer.
| Specification | Details |
|---|---|
| Model | C1000-24T-4G-L |
| Brand | Cisco |
| Product Series | Catalyst 1000 Series |
| Product Type | Layer 2 Managed Gigabit Ethernet Switch |
| Total Ports | 24 × 10/100/1000 Gigabit RJ45 |
| Uplink Ports | 4 × 1G SFP |
| PoE Support | No |
| Switching Capacity | 56 Gbps |
| Forwarding Bandwidth | 28 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 16,000 Entries |
| VLAN Support | Up to 256 Active VLANs |
| Jumbo Frame Support | Up to 10,240 Bytes |
| Layer Features | Layer 2 with Static Routing |
| Routing | IPv4/IPv6 Static Routing |
| Security Features | 802.1X, Port Security, ACLs, DHCP Snooping, Dynamic ARP Inspection |
| QoS | Layer 2–4 QoS |
| Management | Web UI, CLI, SNMP, Cisco Network Plug and Play |
| Console Ports | RJ45 Console, USB Mini-B Console |
| USB Port | USB Type-A |
| Memory | 512 MB DRAM |
| Flash Memory | 256 MB |
| Cooling | Fanless |
| Mounting | 1U Rack Mount |
| Dimensions | 44.4 × 24.0 × 4.4 cm |
| Weight | Approx. 2.63 kg |
| Power Supply | Internal AC Power Supply |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.1Q, 802.1p, 802.1X |
