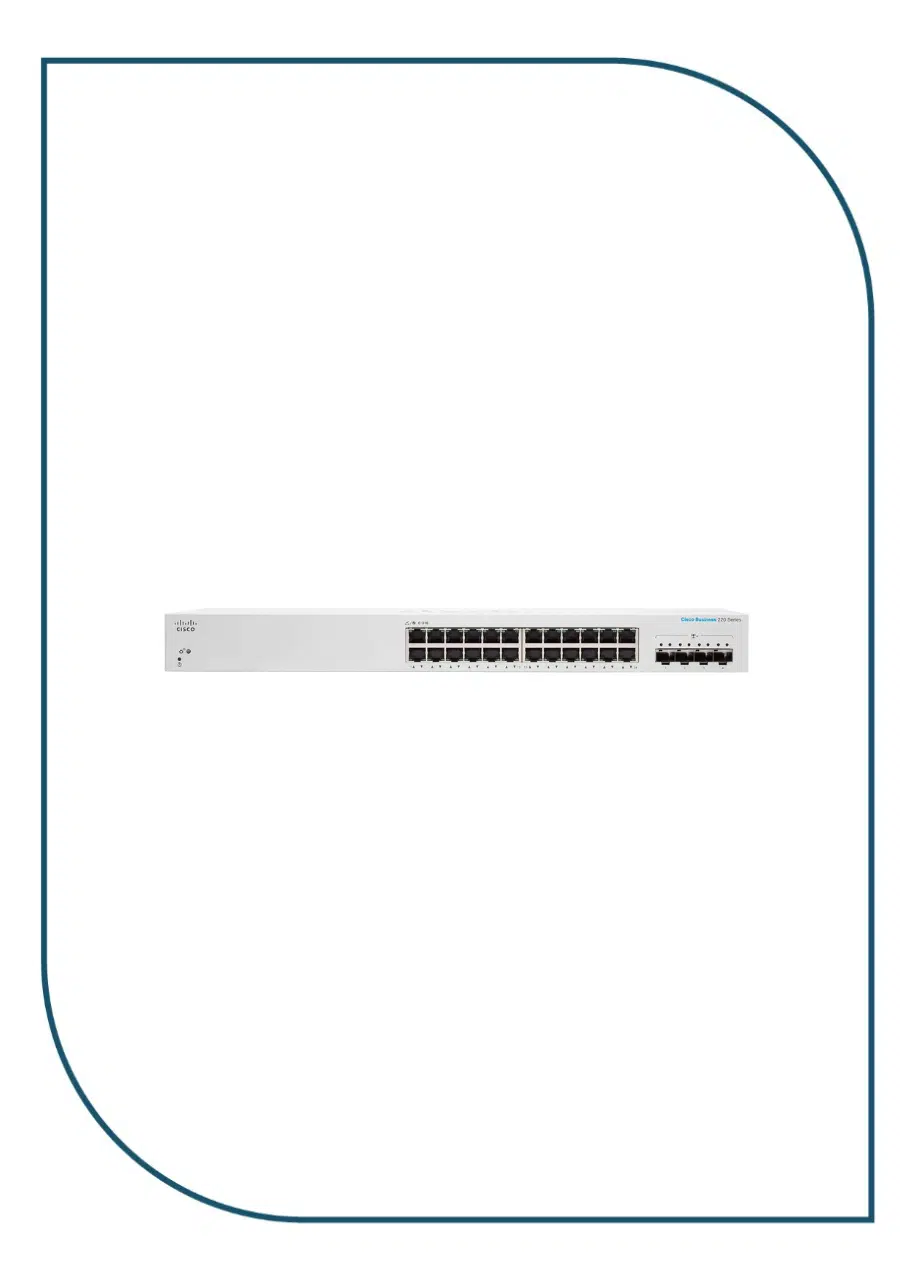

Cisco (CBS220-24T-4G-EU) CBS220 Smart 24-port GE, 4x1G SFP+
The Cisco CBS220-24T-4G-EU is a smart managed Gigabit switch featuring 24 Gigabit Ethernet ports and 4×1G SFP uplinks. Designed for SMB and enterprise networks, it delivers reliable Layer 2 switching, advanced security, VLAN support, and stable high-speed connectivity for offices, surveillance systems, and business infrastructures.
Description
The Cisco CBS220-24T-4G-EU provides enterprise-class networking performance with intelligent management features for growing business environments. Equipped with 24 Gigabit Ethernet ports and 4 dedicated 1G SFP uplink ports, this switch offers scalable connectivity and reliable network performance for modern IT infrastructures.
As part of the Cisco Business 220 Series, the switch supports advanced Layer 2 networking capabilities including VLAN segmentation, QoS traffic prioritization, IPv6 compatibility, link aggregation, and enhanced security features such as ACL and 802.1X authentication. These features help businesses optimize network traffic and maintain secure and stable operations.
The CBS220-24T-4G-EU is ideal for offices, schools, retail environments, hospitality deployments, surveillance systems, and enterprise networks requiring dependable Gigabit connectivity with fiber uplinks. Its rackmount form factor, fanless operation, and intuitive web-based management simplify deployment and administration.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-24T-4G-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 24 × Gigabit Ethernet RJ-45 |
| Uplink Ports | 4 × 1G SFP |
| PoE Support | No |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9216 Bytes |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Management | Web GUI, SNMP |
| Cooling | Fanless |
| Mounting Type | Rack Mountable |
| Power Supply | Internal |
| Application | SMB Networks, Enterprise Offices, CCTV, Wireless Networks |
| Brand | Cisco |
Key Features
- 24 Gigabit Ethernet ports
- 4 dedicated 1G SFP uplinks
- Smart managed Layer 2 switch
- VLAN and QoS support
- Advanced business security features
- IPv6-ready infrastructure
- Fanless silent operation
- Rackmount professional design
- Reliable Cisco networking performance
- Ideal for office and surveillance networks
Additional information
| Access Ports | 24 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 41.68 Mpps |
| Management Platform | Cisco Business Dashboard, Cisco Business Mobile App, Command line interface (CLI), Local Web GUI |
| Mounting Options | Rack Mount |
| POE | Not Support POE |
| Switch Layer | Layer 2 |
| Switching Capacity | 56 Gbps |
| Uplink Ports | 4 |
| UpLinks Speed | 1G |
