Description

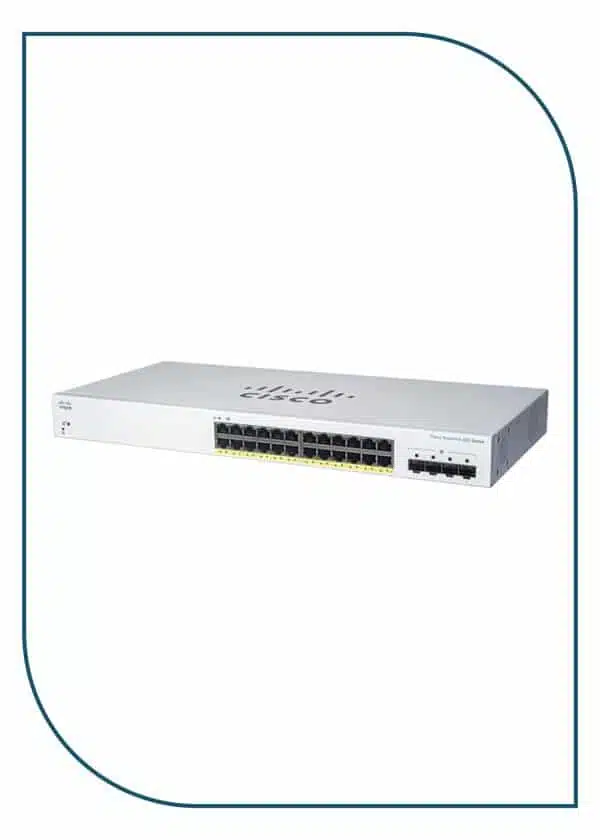

CBS220-24FP-4G-EU
The Cisco CBS220-24FP-4G-EU is part of the Cisco Business 220 Series, providing enterprise-grade networking capabilities with simplified management and exceptional reliability for growing businesses. Equipped with 24 Gigabit Ethernet Full PoE+ ports and 4 Gigabit SFP uplink ports, it offers flexible connectivity for wired and fiber network infrastructures.
With a powerful 382W PoE budget, the switch can simultaneously power multiple IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices directly through Ethernet cables, reducing installation costs and simplifying deployment.
The CBS220-24FP-4G-EU supports advanced Layer 2 features including VLANs, QoS traffic prioritization, link aggregation, IPv6 support, access control lists (ACLs), and enhanced security mechanisms to ensure reliable and secure network operations.
Its intuitive web-based management interface allows easy configuration and monitoring, making it ideal for offices, schools, hotels, retail environments, surveillance systems, and enterprise networks requiring dependable PoE connectivity and fiber uplinks.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-24FP-4G-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 24 × 10/100/1000 Gigabit Ethernet PoE+ |
| Uplink Ports | 4 × 1G SFP |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | 382W |
| Total Ports | 28 |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X Authentication |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Dimensions | 440 × 257 × 44 mm |
| Application | VoIP, CCTV, Wireless Access Points, SMB Networks |
| Brand | Cisco |
Key Features
- 24 Gigabit Full PoE+ ports
- 4 Gigabit SFP fiber uplinks
- 382W PoE power budget
- Smart managed Layer 2 switching
- Advanced VLAN and QoS support
- IPv6-ready infrastructure
- Enterprise-grade security features
- Rackmount professional design
- Ideal for CCTV and VoIP deployments
- Reliable Cisco Business networking performance
