SKU: JL814A Categories: , , Tags: , Brand:

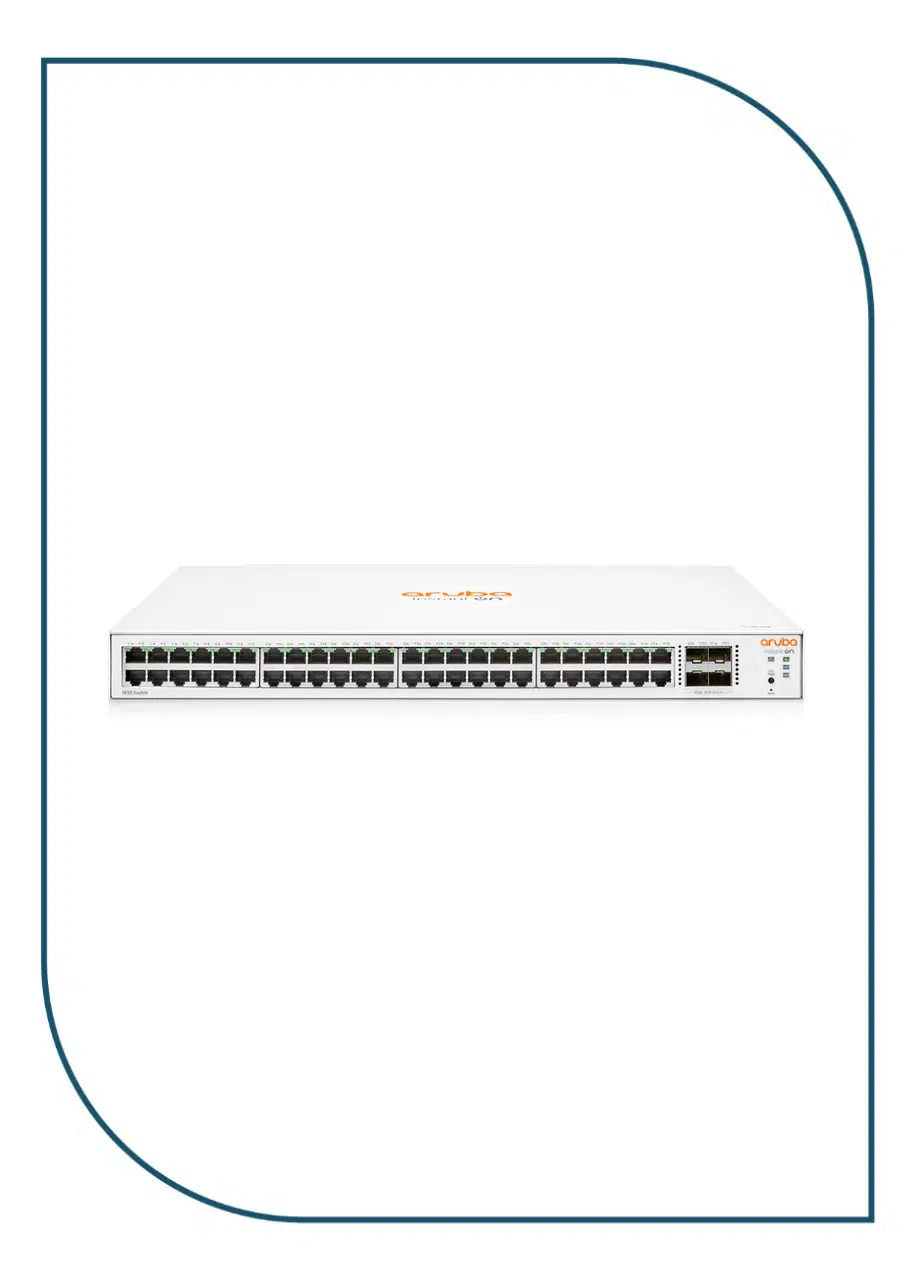

JL814A Aruba Instant On 1830 48G 4SFP Switch


For quotations Mail us on


• 48 RJ-45 autosensing 10/100/1000 ports
4 SFP 1000 Mbps ports (min=0 \ max=4 SFP Transceivers)
1U – Height

Share it:
Product Differentiator (long)
Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses?looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports.
Power Consumption Description
Maximum: 100-127V: 40.2W 200-220V: 40W, Idle: 100-127V: 17.7W 200-220V: 17.7W
Input Voltage
100 – 240 VAC
External I/O Ports
48 RJ-45 10/100/1000 ports, 4 SFP 1GbE ports
Switching Capacity
104 Gbps
77.37 Mpps
Memory and Processor
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash, packet buffer: 1.5 MB
PoE Capability
Management Features
Aruba Instant On Cloud, Web browser, SNMP Manager
Warranty Standard Statement
Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.
Weight (imperial)
7.80 lb
Weight (metric)
3.54 kg
Product Dimensions (imperial)
9.96 x 17.44 x 1.73 in
Product Dimensions (metric)
25.30 x 44.30 x 4.39 cm
