Description

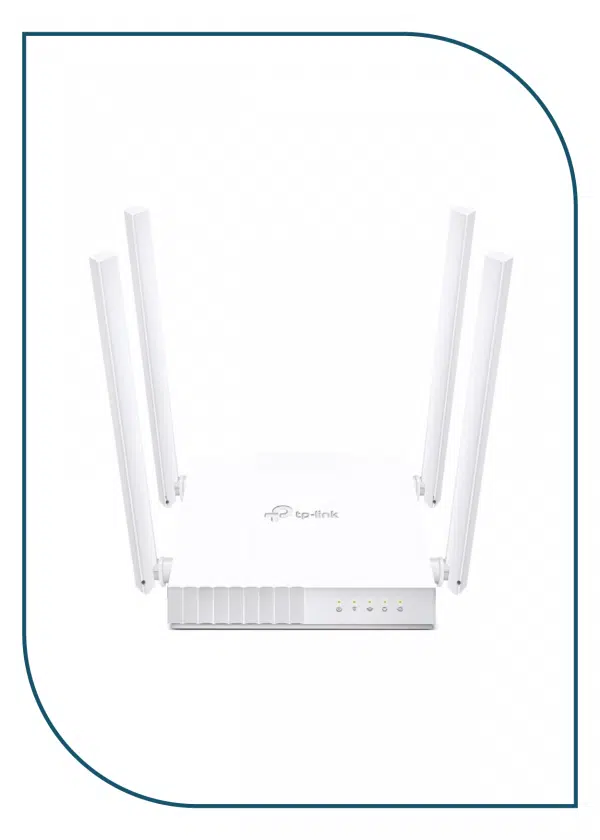

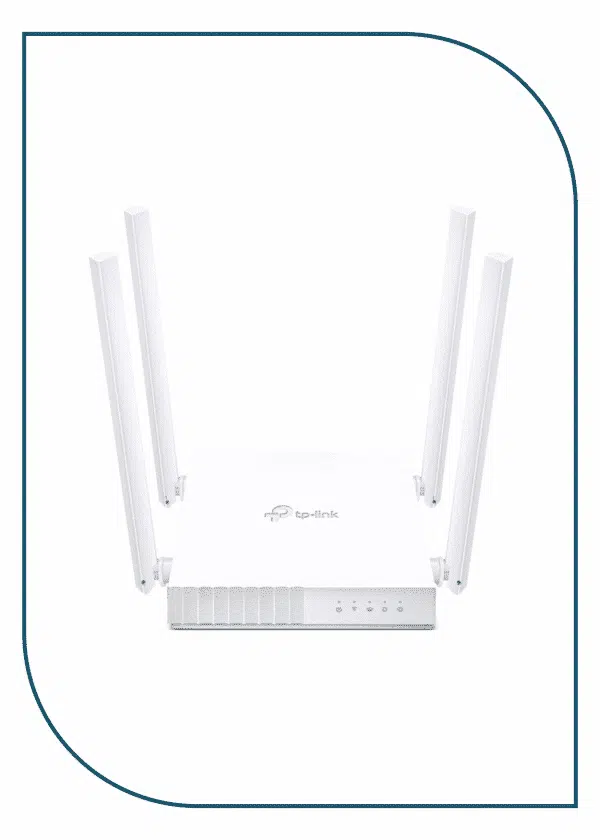

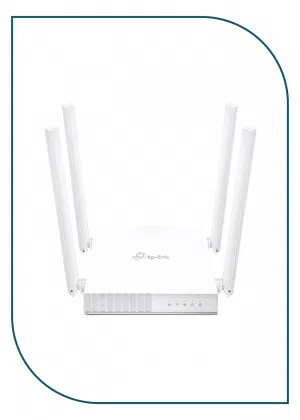

Archer C24
- Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests while securing the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor
| Network Security | SPI Firewall
Access Control IP & MAC Binding Application Layer Gateway |
|---|---|
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP
WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC750
5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses
4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | Medium
Dual-Band Allocate devices to different bands for optimal performance |
| Working Modes | Router Mode
Access Point Mode Range Extender Mode |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4
IPv6 |
| Parental Controls | URL Filtering
Time Controls |
| WAN Types | Dynamic IP
Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding
Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy
IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation
DHCP Client List Server |
| DDNS | NO-IP
DynDNS |
| Management | Tether App
Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE:
<20dBm(2.4GHz) <23dBm(5GHz) |
| WiFi Reception Sensitivity | 5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm; 11n HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm) |
