Home›UPS›APC (SRV15KRILRK) Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit
SRV15KRILRK
SRV15KRILRK
SRV15KRILRK
SRV15KRILRK
SRV15KRILRK

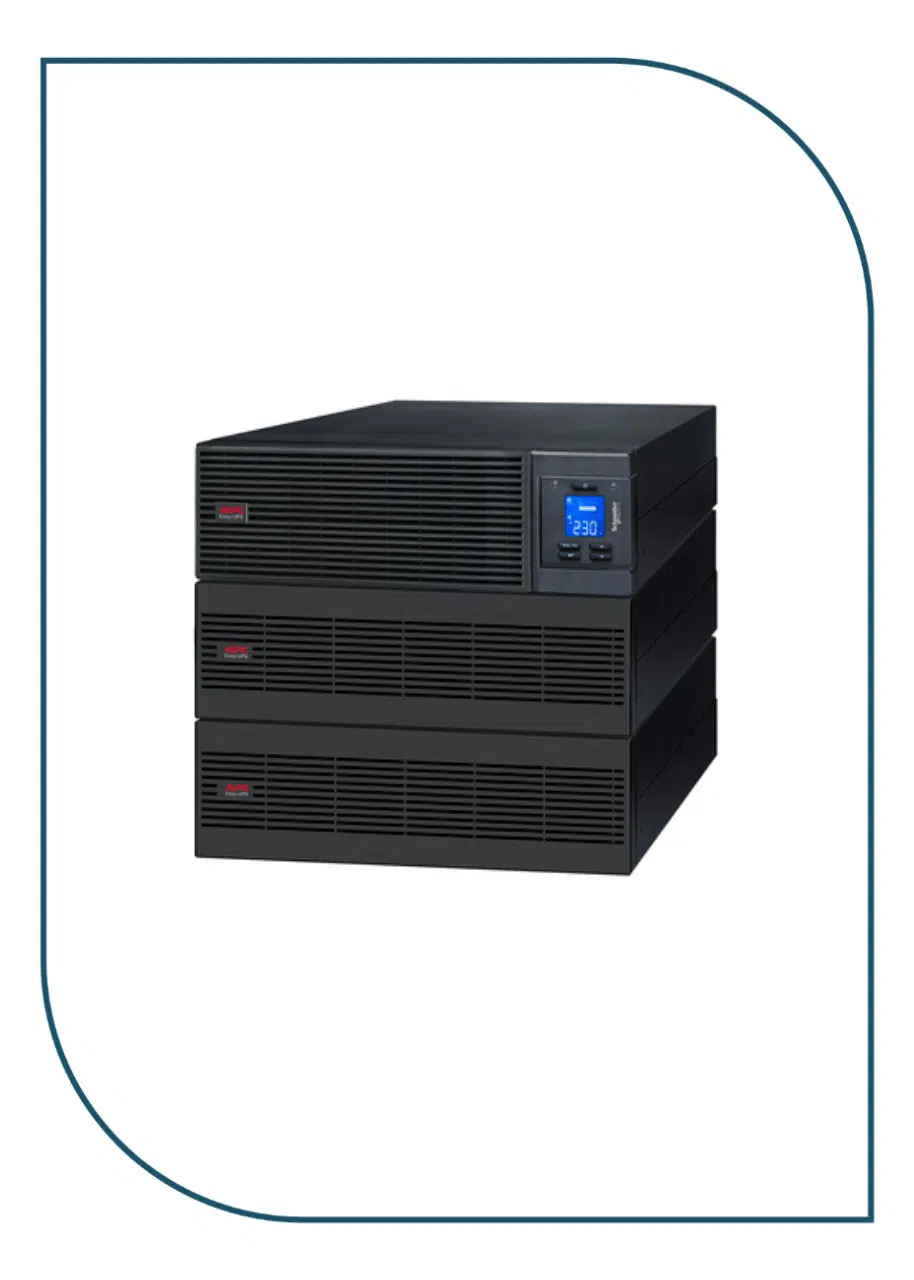

APC (SRV15KRILRK) Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit

SRV15KRILRK This 15kVA double-conversion on-line 9U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

Ask for Price and stock

Wishlist
Compare
Availability: Available on backorder
SKU:SRV15KRILRK
Categories:
Brands:
Brand:

Description

SRV15KRILRK

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA double-conversion on-line 9U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

Specifications

Overview
Lead time Usually Ships within 4 Weeks
Main
Run time for load

W

information_stroke
Min-max: 1500-15000 W
4min 37s
Max. Capacity Used
information_stroke

100 %
Main Input Voltage 230 V AC

415 V AC
Product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V

230 V

415 V
Main Output Voltage 230 V
Other Output Voltage 220 V

240 V
Rated power in W 15000 W
rated power in VA 15000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit 9U
Provided equipment 1 USB cable

1 RS-232 configuration cable

3 rack mounting brackets

3 stabilization/wall mounting feet

6 jumper bar

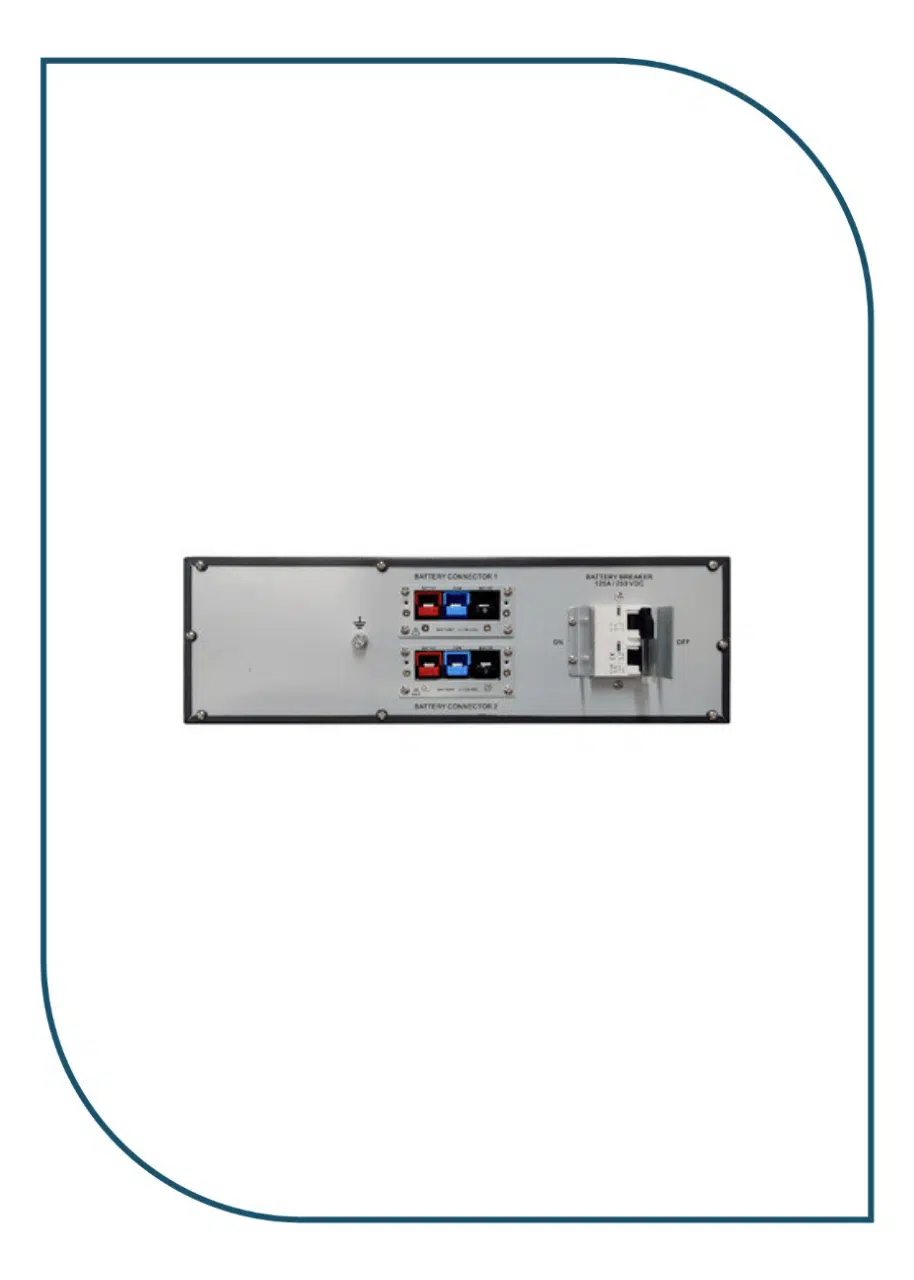

2 external battery pack

1 battery cable

user manual
Range of product Easy UPS On-Line
Batteries & Runtime
Run Time

View Runtime Graph
Efficiency

View Efficiency Graph
Battery type Lead-acid battery
Battery voltage +/- 120 V
Extended runtime 1
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 6 h
Battery charger power 2340 W rated
General
Redundant No
Physical
Colour Black (RAL 7010)
Height 39.3 cm
Width 43.8 cm
Depth 69.0 cm
Net weight 157 kg
Mounting location Front
Mounting preference No preference
Mounting mode Rack-mounted
USB compatible Yes
Mounting position Horizontal
Input
Input voltage limits 110…300 V half load

176…300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)

1 hard wire 5-wire (3P + N + E)
Network frequency 40…70 Hz auto sensing
Output
Maximum configurable power in VA 15000 VA
Maximum configurable power in W 15000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 2 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 95 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Conformance
Product certifications CE

UKCA
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -20…60 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 65 dBA
Heat dissipation 2503 Btu/h
IP degree of protection IP20
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off Yes
control panel Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate 600 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1000 mm
Package 1 Width 900 mm
Package 1 Length 600 mm
Package 1 Weight 196 kg
Contractual warranty
Warranty 2 years repair or replace
Show More

Additional information

Battery Management

Display Type

Input / Output Voltage

Management Platform

,

Mounting Options

Rack Mount
Power Capacity (VA/W)

Output Connections (Sockets)

Transfer Time (ms)

Typical Runtime (FULL-LOAD)

UPS Topology
