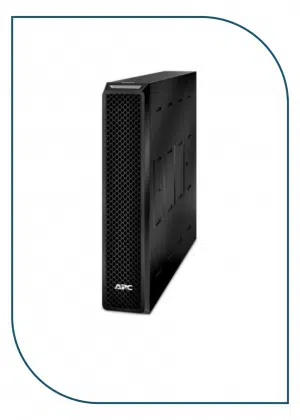

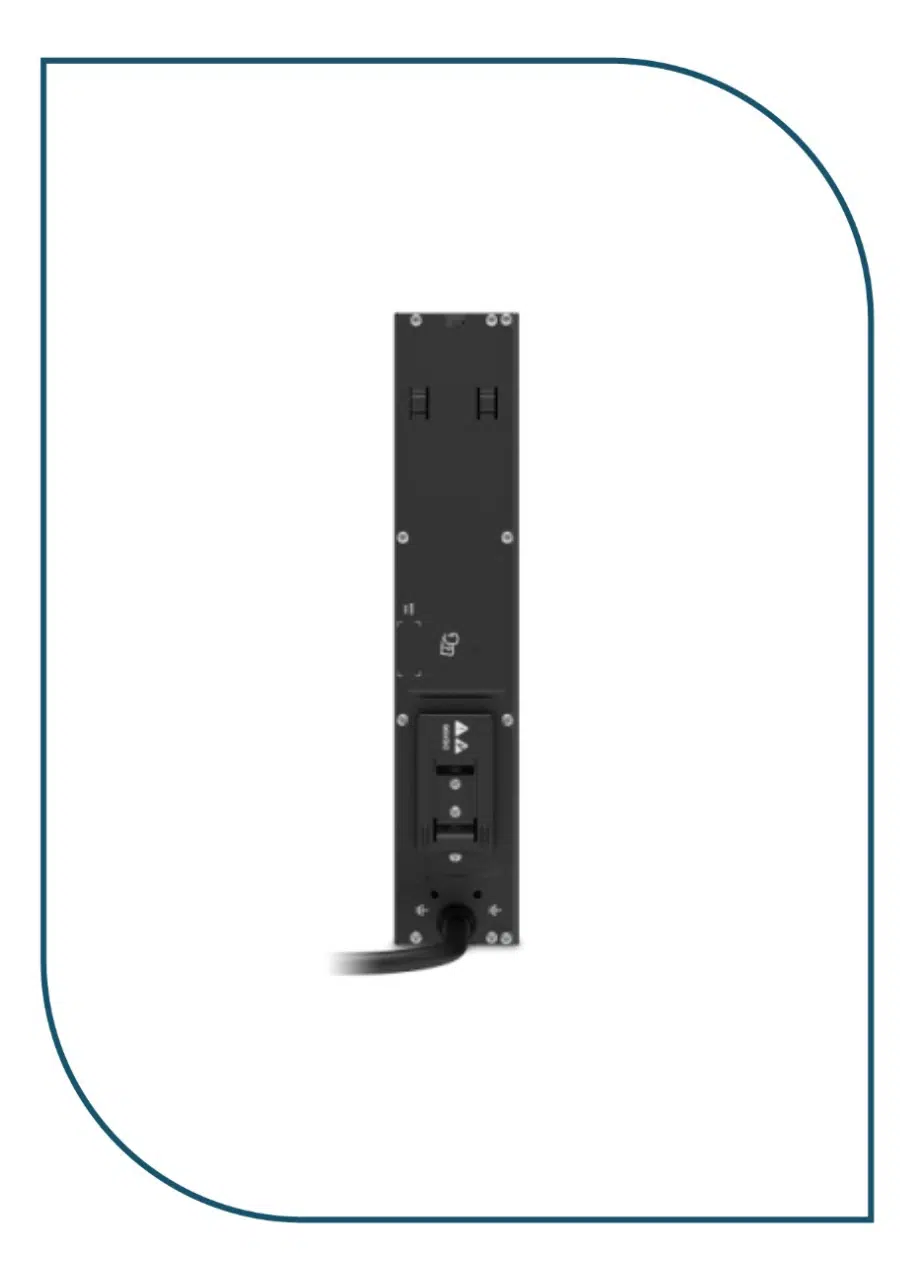

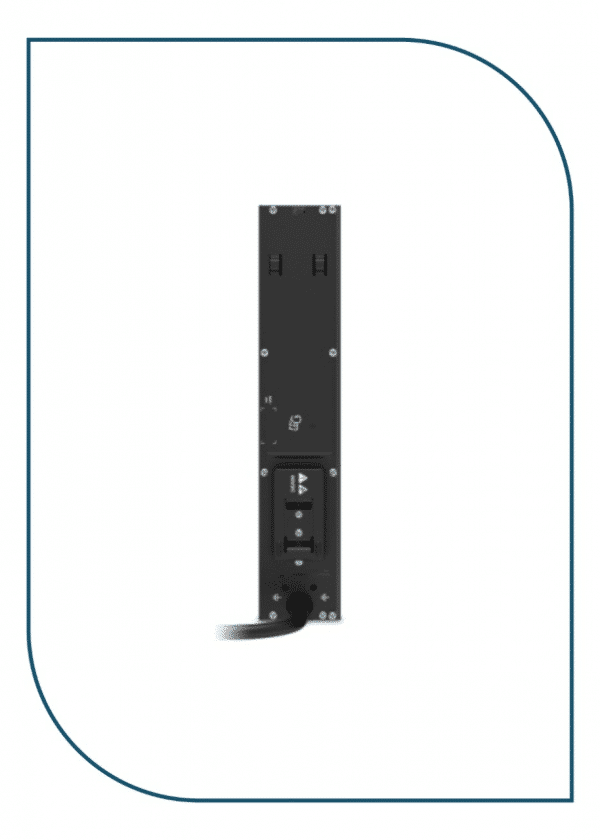

This APC Smart-UPS battery pack connected with SRT On-Line UPS, provides extended runtime to SRT mission critical applications. This 96V SRT extendable runtime battery pack is compatible with 3kVA SRT Smart-UPS extended runtime models. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. It is a lead-acid battery with a 2-year warranty. Its dimensions are 594mm (depth) x 432mm (height) x 85mm (width) and weighs 40.6kg. Ideal for Smart-UPS on-line mission critical applications.
Specifications
Overview
Lead time |
Usually in Stock |
Main
Product or Component Type |
Battery |
Battery Type |
Lead-Acid battery |
Provided Equipment |
Documentation CD
User Manual
Warranty card |
Batteries & Runtime
Battery Slots Empty |
0 |
Included Battery Modules |
0 |
Battery Voltage |
96V |
RBC Quantity |
2 |
Replacement battery |
APCRBC152
|
Physical
Color |
Black |
Height |
17.008 in (43.2 cm) |
Width |
3.3 in (8.5 cm) |
Depth |
23.4 in (59.4 cm) |
Net Weight |
89.5 lb(US) (40.6 kg) |
Mounting Mode |
Rack-mounted with kit |
Environmental
Ambient Air Temperature for Operation |
32.0000000000…104.0000000000 °F (0…40 °C) |
Operating altitude |
0…10000 ft |
Relative Humidity |
0…95 % non-condensing |
Ambient Air Temperature for Storage |
5.0000000000…113.0000000000 °F (-15…45 °C) |
Storage altitude |
0…50000 ft (0.0000000000…15240.0000000000 m) |
Storage Relative Humidity |
0…95 % non-condensing |
Ordering and shipping details
GTIN |
731304317722 |
Country of origin |
PH |
Packing Units
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
9.4 in (23.9 cm) |
Package 1 Width |
32.7 in (83.1 cm) |
Package 1 Length |
23.6 in (59.9 cm) |
Package 1 Weight |
98.1 lb(US) (44.5 kg) |
Contractual warranty
Warranty |
2 years repair or replace |
