Description

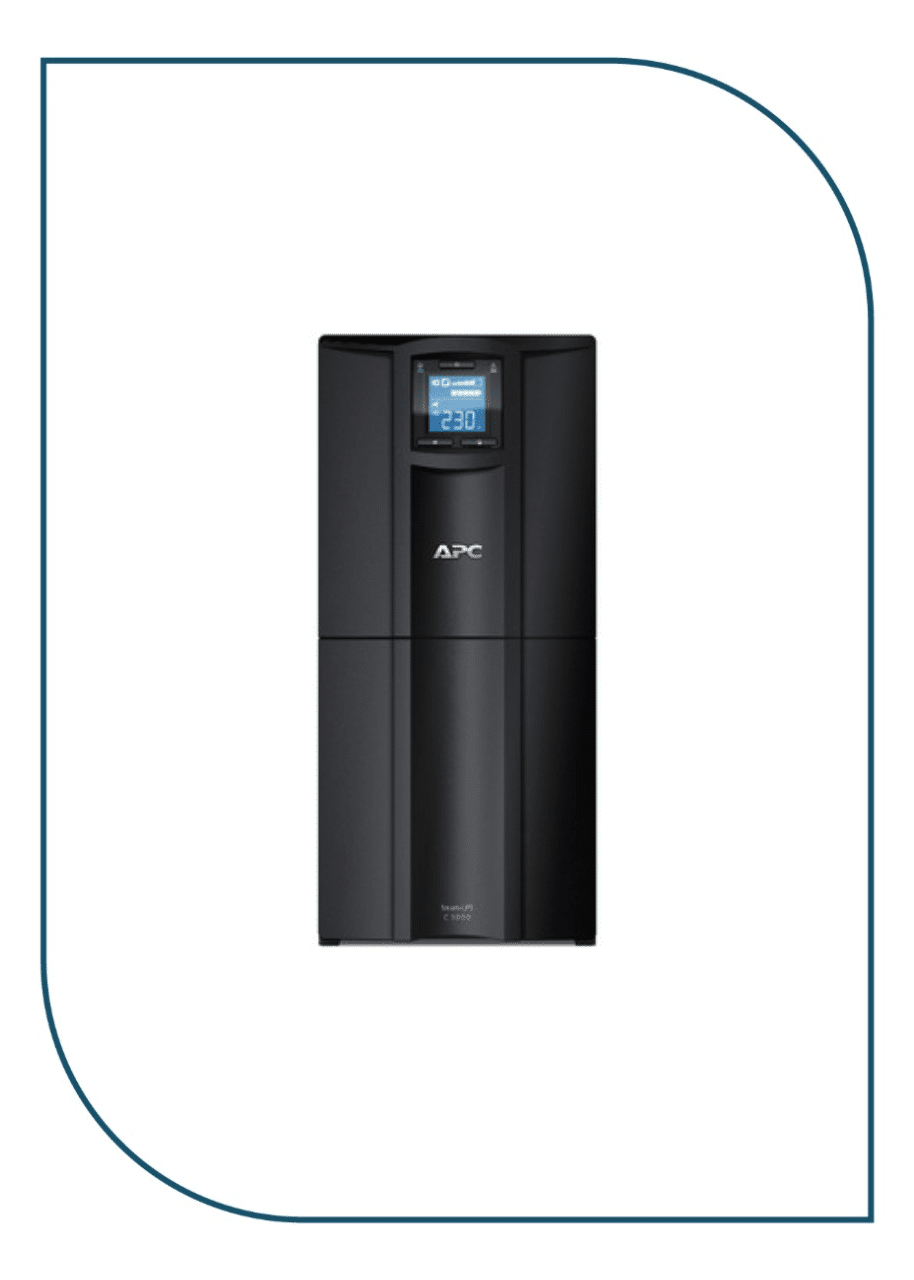

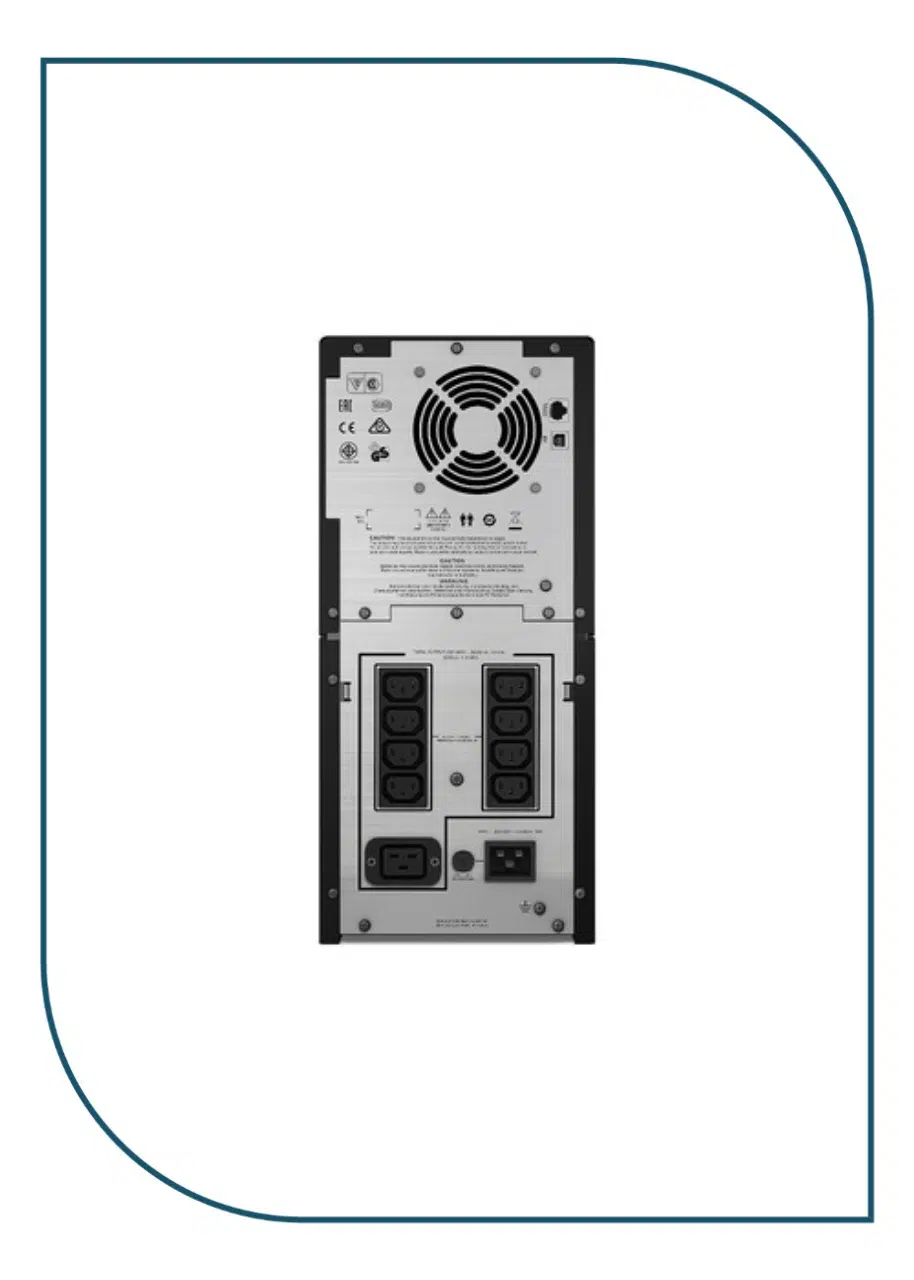

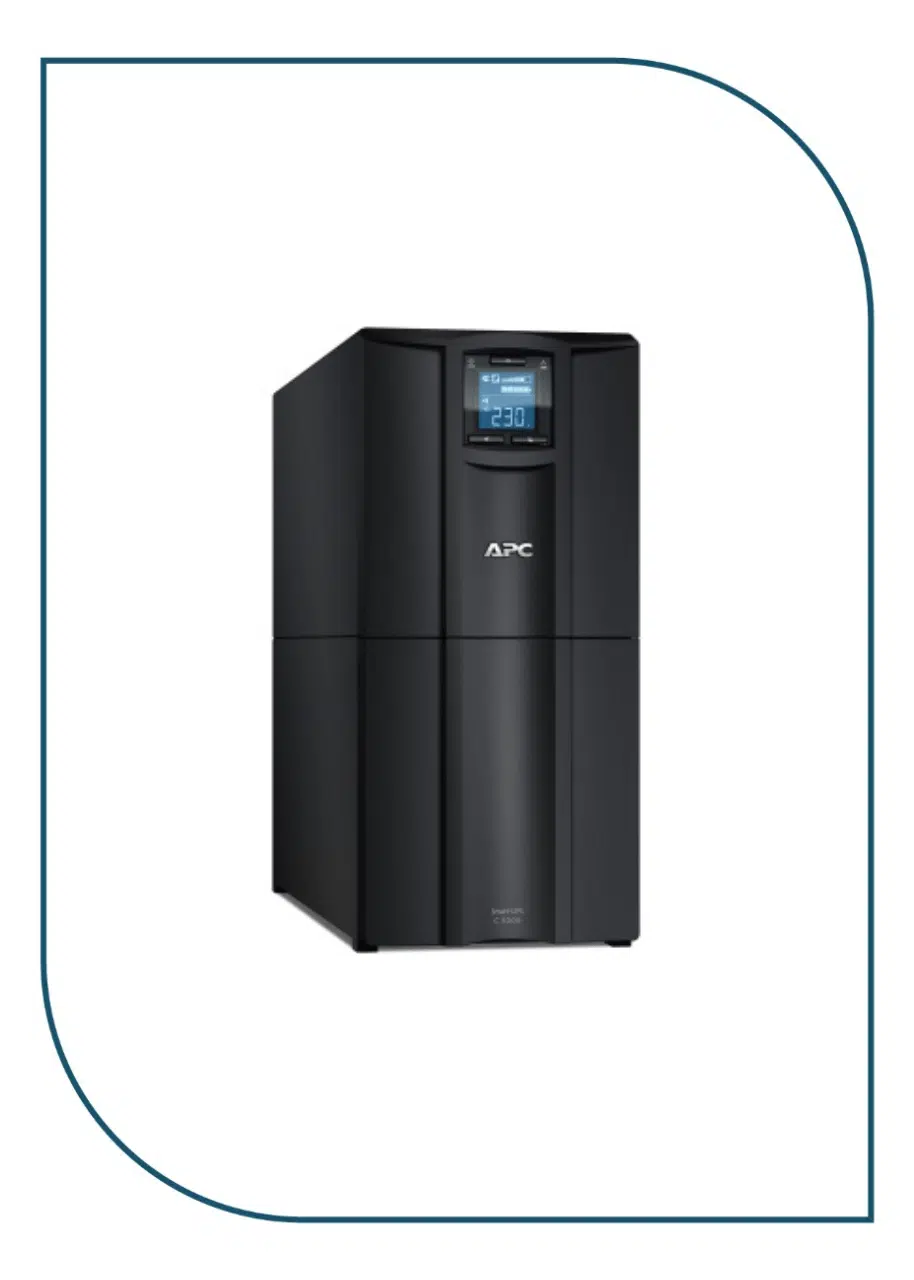

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 3000VA/2100W line-interactive UPS provides pure sinewave power to support critical electronics during power disruptions. The tower mount SMC operates in green mode for high operating efficiency. It comes with IEC 320 C20 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty. Its dimensions are 544mm (depth) x 435mm (height) x 197mm (width) and weighs 43.0kg. Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, edge networks and business desktops. It conforms to CE, C-Tick, GOST, EAC, SABS and VDE.
Specifications
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
|
Run time for load
W information_stroke
Min-max: 210-2100 W
|
5min 8s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 % |
| Product or component type | Uninterruptible power supply (UPS) |
| Run Time |
|
|---|---|
| Battery type | Lead-acid battery |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery |
|
| Battery charger power | 183 W rated |
| Provided equipment | CD with software Documentation CD USB cable |
|---|---|
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Entry level |
| Redundant | No |
| Number of rack unit | 0U |
|---|---|
| Colour | Black |
| Height | 43.5 cm |
| Width | 19.7 cm |
| Depth | 54.4 cm |
| Net weight | 43 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 220 V 240 V |
| Input Connection Type | IEC 320 C20 |
| Input voltage limits | 170…300 V adjustable 180…287 V |
| Network frequency | 47…63 Hz |
| Main Output Voltage | 230 V |
|---|---|
| Rated power in W | 2100 W |
| rated power in VA | 3000 VA |
| output connection type | 8 IEC 320 C13 1 IEC 320 C19 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2100 W |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50 Hz sync to mains |
| Product certifications | C-Tick CE EAC GOST SABS VDE UK PSTI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 45 dBA |
|---|---|
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| control panel | Multifunction LCD status and control console |
|---|---|
| Free slots | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge energy rate | 300 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 76.2 cm |
| Package 1 Width | 69.9 cm |
| Package 1 Length | 38.1 cm |
| Package 1 Weight | 51 kg |
| Warranty | 2 years repair or replace |
|---|
