Name: APC (Srv2krirk) Easy UPS On-Line, 2000VA/1600W, Rackmount 2U | Peta Store
Brand: Schneider Electric
SKU: Srv2krirk
Availability: BackOrder

APC Easy UPS On-Line, 2000VA/1600W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit (Srv2krirk)

Srv2krirk

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.

Availability: Available on backorder

SKU:Srv2krirk

Categories:UPS

Brands:Schneider Electric

Brand: Schneider Electric

Description

Srv2krirk

Specifications

Overview
Presentation	High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time	Usually in Stock

Main
Run time for load W Min-max: 160-1600 W	4min 2s
Max. Capacity Used	100 %
Main Input Voltage	230 V AC 1 phase
Product or component type	Uninterruptible power supply (UPS)
Other Input Voltage	220 V 240 V
Output voltage	230 V AC 1 phase
Other Output Voltage	220 V 240 V
Rated power in W	1600 W
Rated power in VA	2000 VA
Input Connection Type	IEC 60320 C14
Output connection type	4 IEC 60320 C13
Number of rack unit	2U
Cable length	1.50 m
Number of cables	1

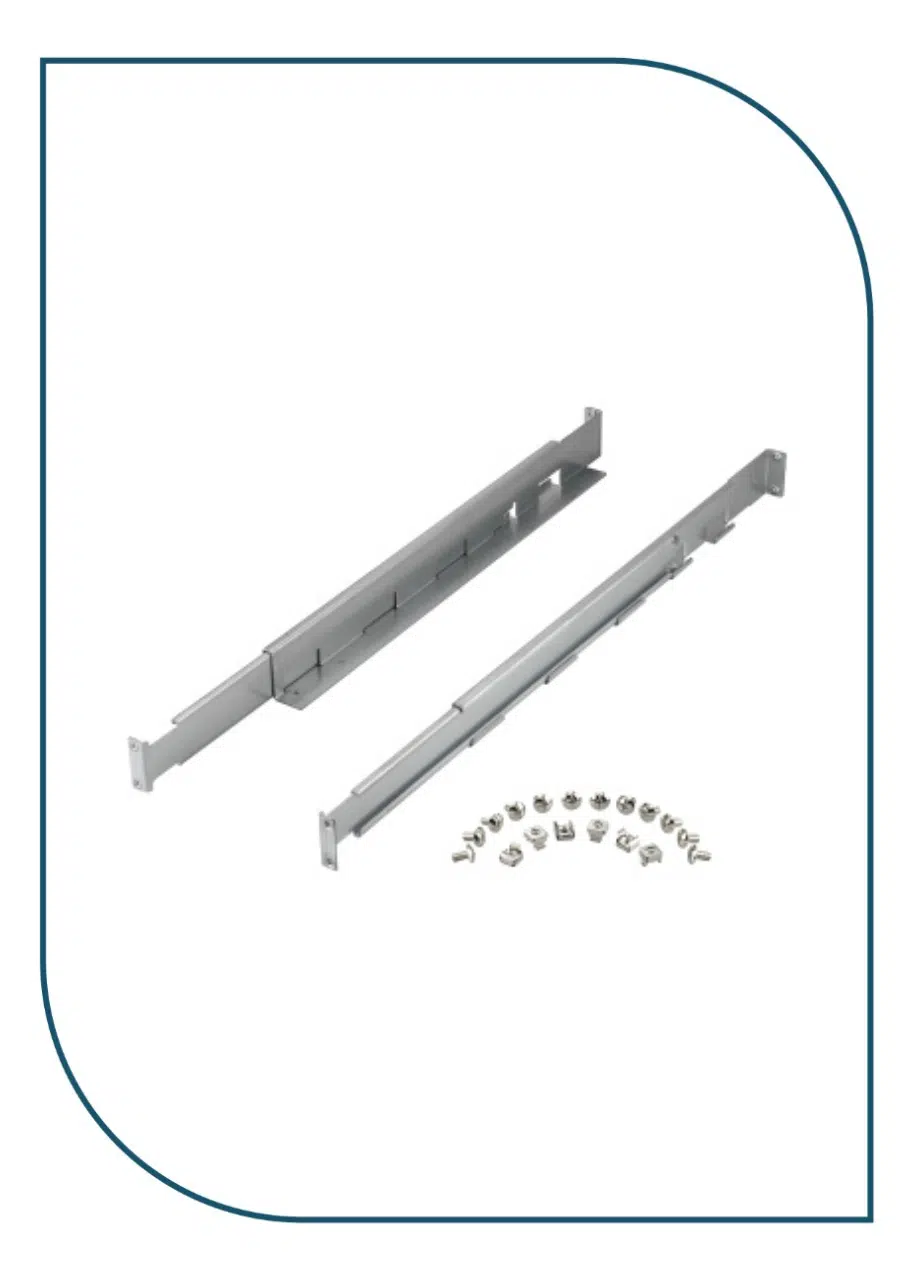

Provided equipment	1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 rack mounting brackets 1 rack mounting support rails user manual
Range of product	Easy UPS On-Line

Complementary
Battery type	Lead-acid internal included
UPS connectivity	Serial port USB port Available expansion slot
Mounting mode	Rack-mounted with included kit

Batteries & Runtime
Run Time
Efficiency
Battery type	Lead-acid battery
Battery voltage	48 V
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	4 h
Battery life	3…5 year(s)
Replacement battery
Battery charger power	70 W rated

General
Max runtime	4 min
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No

Physical
Colour	Black (RAL 7010)
Height	86 mm
Width	437 mm
Depth	462 mm
Net weight	18.2 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted
USB compatible	Yes
Mounting position	Horizontal

Input
Input voltage limits	110…285 V half load 160…280 V full load
Network frequency	40…70 Hz auto sensing

Output
Maximum configurable power in VA	2000 VA
Maximum configurable power in W	1600 W
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion	3 %
UPS type	Double conversion online
Wave type	Sine wave
Efficiency	88 % (full load)
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Bypass type	Internal bypass (automatic and manual)
Crest factor	3 : 1

Conformance
Product certifications	CE EAC TISI
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0…3000 m
Ambient air temperature for storage	-20…50 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…15000 m
Acoustic level	50 dBA
Heat dissipation	745 Btu/h
IP degree of protection	IP20

Communications & Management
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Free slots	1

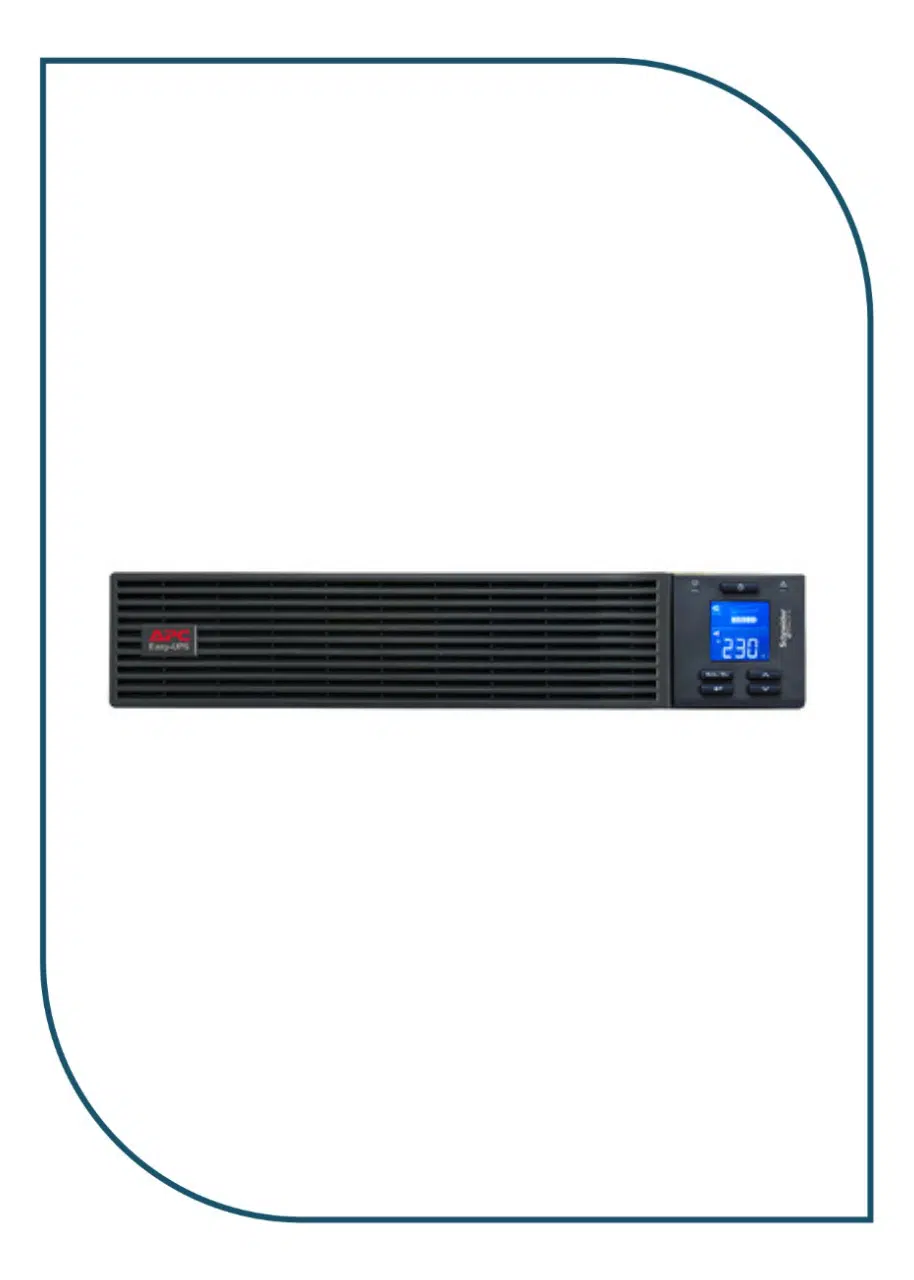

Control panel	Multifunction LCD status and control console

Surge Protection and Filtering
Surge energy rate	600 J

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	21.8 cm
Package 1 Width	70 cm
Package 1 Length	55 cm
Package 1 Weight	20.7 kg

Contractual warranty
Warranty (in months)	24

Additional information

Battery Management	Internal Battery
Display Type	LCD Display
Input / Output Voltage	230V
Management Platform	On-Site Management, SNMP Card Slot
Mounting Options	Rack Mount
Output Connections (Sockets)	IEC C13
Power Capacity (VA/W)	2000VA / 1600W
Transfer Time (ms)	0 ms
Typical Runtime (FULL-LOAD)	5 Minutes
UPS Topology	Online Double-Conversion
