Description
TE100

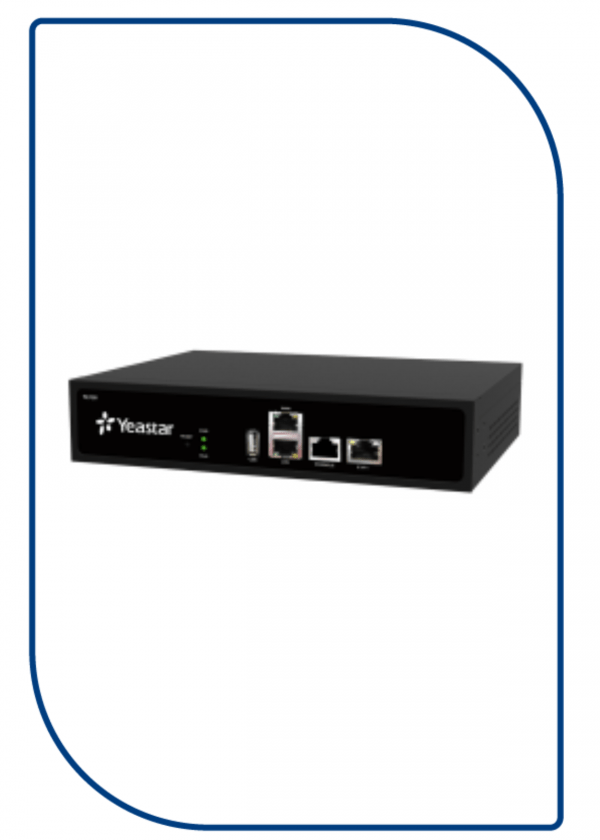

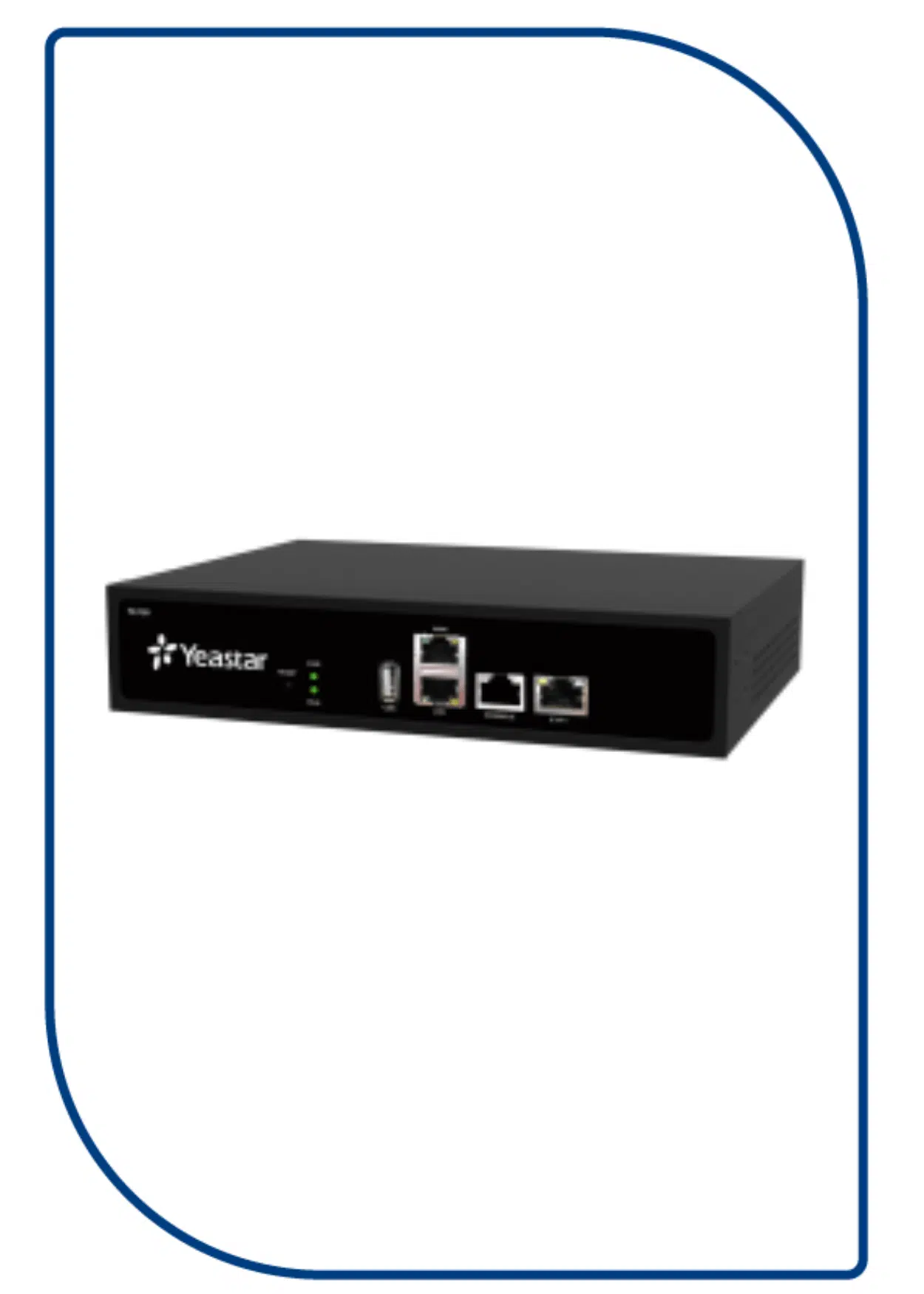

Yeastar TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/T1/J1, and E1/T1/J1 to VoIP) that supports up to 30 concurrent calls. TE100 offers SMBs cost effective additions to a legacy telephone system to bring the true benefits of VoIP.
Benefits
- Software configurable E1/T1/J1 ports
- Support PRI, MFC R2, SS7, E&M
- Easy-to-navigate GUI
- Cost-effective call routing
- Simple installation and management
- Interoperable with Elastix and Lync Server
- Compatible with various ISDN PBX, IP-PBX, and softswitch
- Low power consumption for your green office
| E1/T1/J1 Port |  |
1 (Support PRI, MFC R2, SS7, E&M) |
| Protocol | |
SIP (RFC3261) |
| Transport Protocol | |
UDP, TCP, TLS, SRTP |
| DTMF | |
RFC2833, SIP INFO, In-band |
| Codec | |
G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex |
| Echo Cancellation | |
ITU-T G.168 LEC |
| Network Protocol | |
FTP, TFTP, HTTP, HTTPS, SSH |
| Network | |
DDNS, Firewall, PPPoE, Static IP, QoS, Static Route |
| PRI switch types | |
Euro ISDN, nation, Q.SIG |
| CAS | |
MFC R2 (Argentina, Brazil, China, Czech Republic, Colombia, Ecuador, Indonesia, ITU, Mexico, Philippines, Venezuela) |
| SS7 | |
ITU, ANSI, China |
| LAN | |
1 10/100Mbps |
| WAN | |
1 10/100Mbps |
| USB | |
1 |
| Dimensions (L × W × H) (mm) | |
213 x 160 x 44 |
| Power Supply | |
AC 100-240V (12V 2A) |
| Operation Range | |
0°C to 40°C, 32°F to 104°F |
| Storage Range | |
-20°C to 65°C, -4°F to 149°F |
| Humidity |
