Description

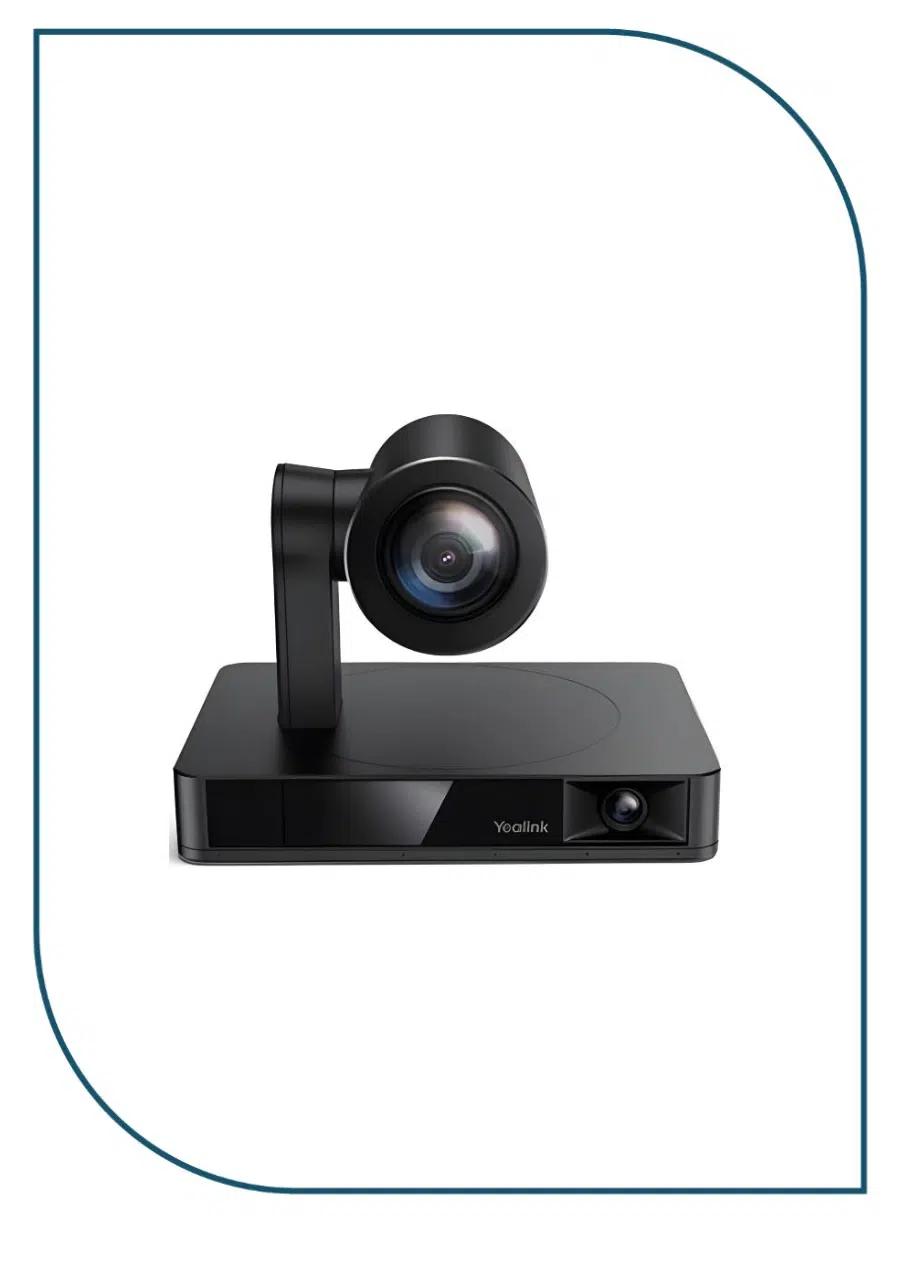

The Yealink UVC86 Black is a premium dual-eye 4K AI PTZ conference camera designed for medium and large meeting rooms, boardrooms, training rooms, and executive conference spaces. Combining a panoramic AI camera with a mechanical PTZ camera, the UVC86 provides intelligent participant detection, smooth tracking, and crystal-clear 4K video, making hybrid meetings more engaging and professional.
The camera features two built-in 8MP Sony sensors. One panoramic camera continuously detects participants across the room, while the second PTZ camera automatically frames and tracks speakers. With 12× optical zoom, 1.7× digital zoom (20.4× HD zoom), and a 90° field of view, the UVC86 delivers exceptional image quality even when zooming in on presenters or participants seated at the back of the room.
Powered by AI, the UVC86 supports Auto Framing, Speaker Tracking, Presenter Tracking, Picture-in-Picture (PIP), and Multi-Focus. These intelligent features automatically keep active speakers centered, follow presenters as they move around the room, and provide a natural meeting experience for remote attendees without manual camera adjustments.

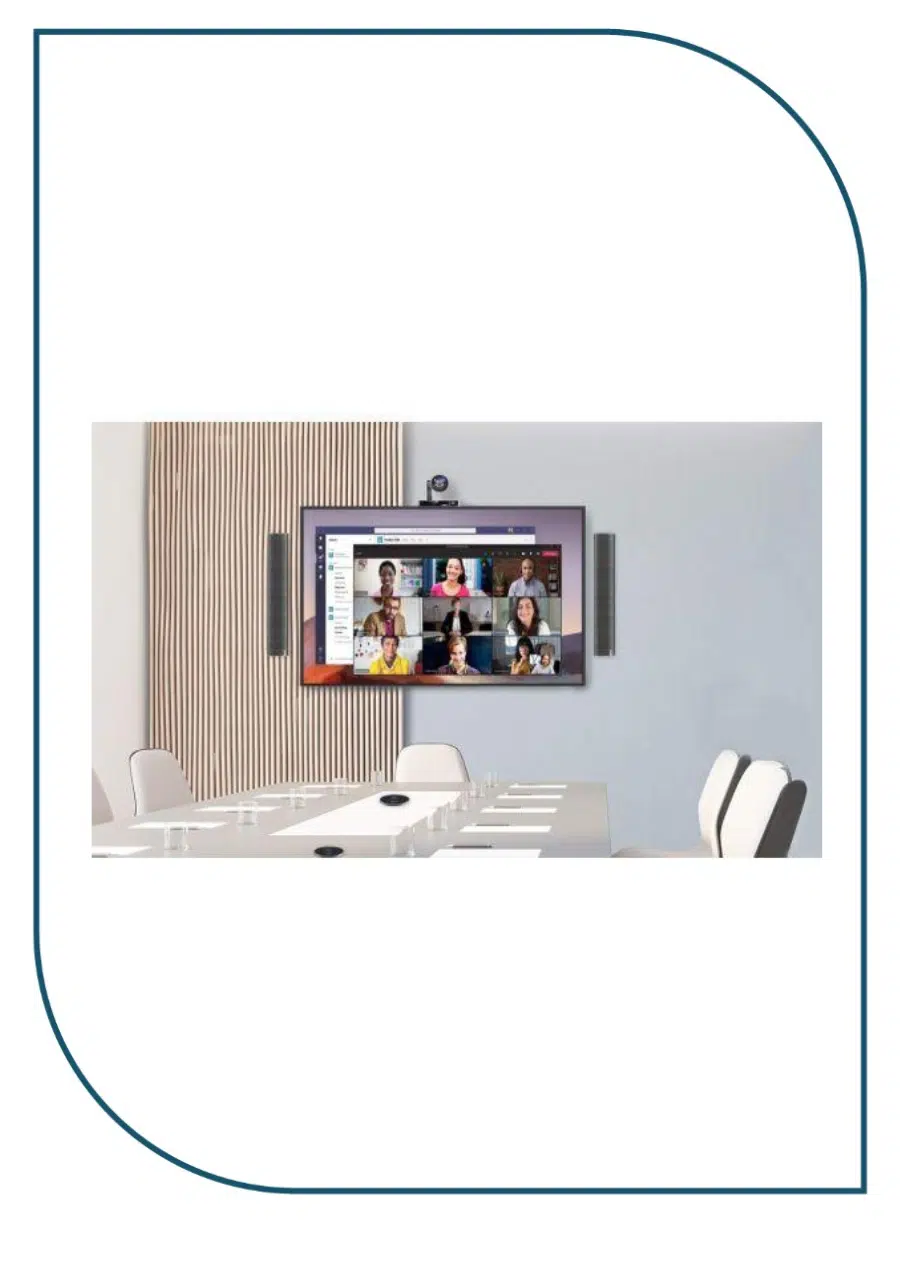

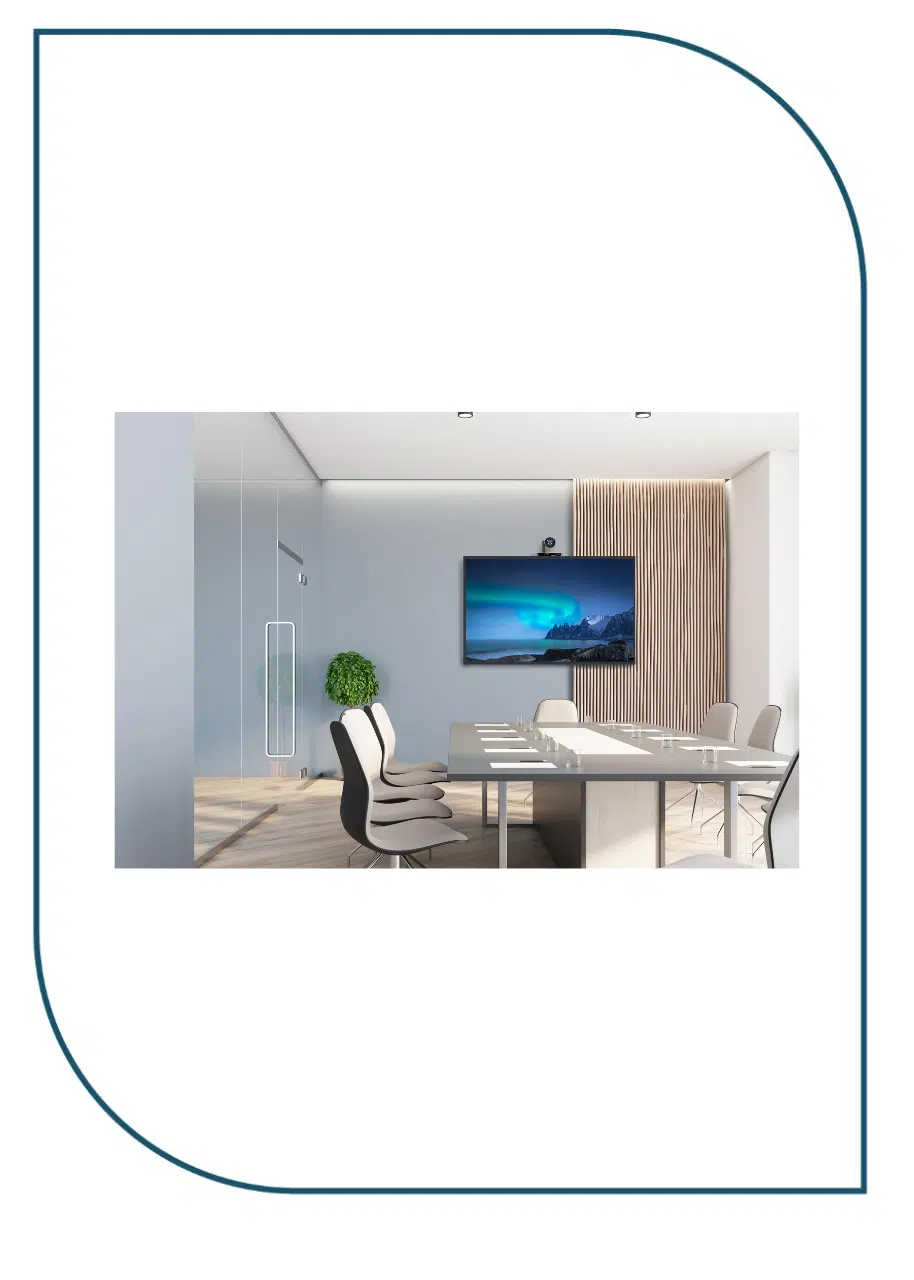

The UVC86 offers flexible installation options including wall mounting, ceiling mounting, TV mounting, tabletop placement, TV stand, and tripod installation. It connects via USB 3.0, supports HDMI output, VCH connectivity for Yealink room devices, and integrates seamlessly with Microsoft Teams Rooms, Zoom Rooms, and other USB video conferencing platforms.
Designed for enterprise deployment, the camera can be managed through Yealink Management Cloud Service (YMCS) and works perfectly with Yealink microphones, speakers, and meeting room solutions, making it an excellent choice for professional AV installations and modern collaboration environments.
Specifications Table
| Specification | Details |
|---|---|
| Brand | Yealink |
| Model | UVC86 Black |
| Product Type | Dual-Eye 4K Intelligent PTZ Conference Camera |
| Recommended Room Size | Medium & Large Meeting Rooms |
| Camera System | Dual 4K Cameras (Panoramic + PTZ) |
| Image Sensors | 2 × 8MP Sony CMOS |
| Maximum Resolution | 4K Ultra HD (3840 × 2160) |
| Frame Rate | Up to 30fps |
| PTZ Camera FOV | 90° DFOV / 81° HFOV / 50° VFOV |
| Panoramic Camera FOV | 120° DFOV / 110° HFOV / 78° VFOV |
| Optical Zoom | 12× |
| Digital Zoom | 1.7× |
| HD Zoom | 20.4× |
| Pan Range | ±100° |
| Tilt Range | +40° / -90° |
| Focus | Auto Focus |
| AI Features | Auto Framing, Speaker Tracking, Presenter Tracking, Picture-in-Picture, Multi-Focus |
| Camera Presets | 9 Presets |

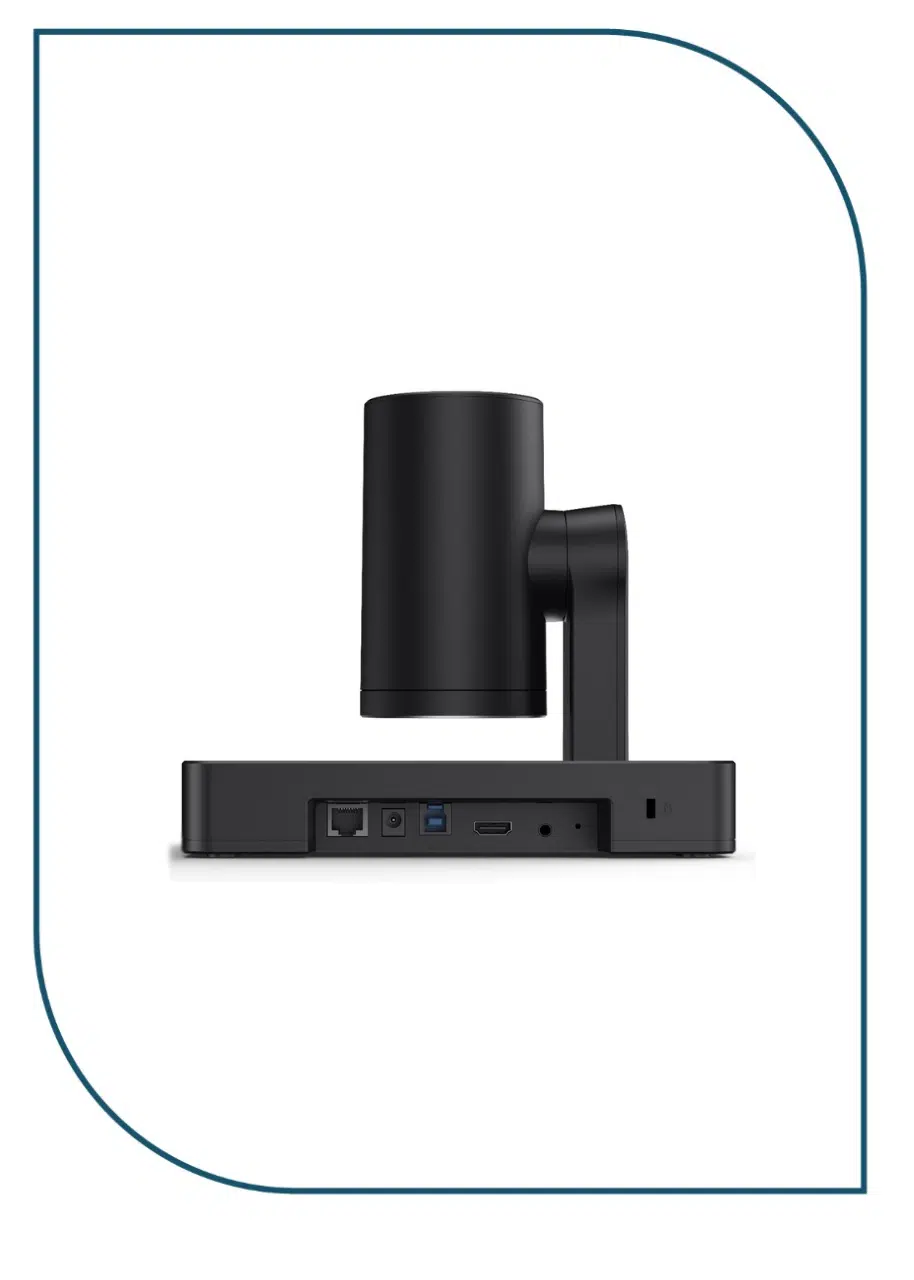

| USB Ports | 1 × USB 3.0 Type-B, 1 × USB 2.0 Type-A |
| VCH Port | 1 × RJ45 (Yealink VCH) |
| Audio Input | 3.5 mm Line-In |
| HDMI Output | Yes |
| Power Supply | DC 48V / 0.7A |
| Installation | Wall, Ceiling, TV, Table, Tripod, TV Stand |
| Weight | 3.27 kg |
| Dimensions | 210 × 156 × 183 mm (sleep mode) |
| Compatible Platforms | Microsoft Teams, Zoom, Google Meet, Cisco Webex and other UVC-compatible platforms |
