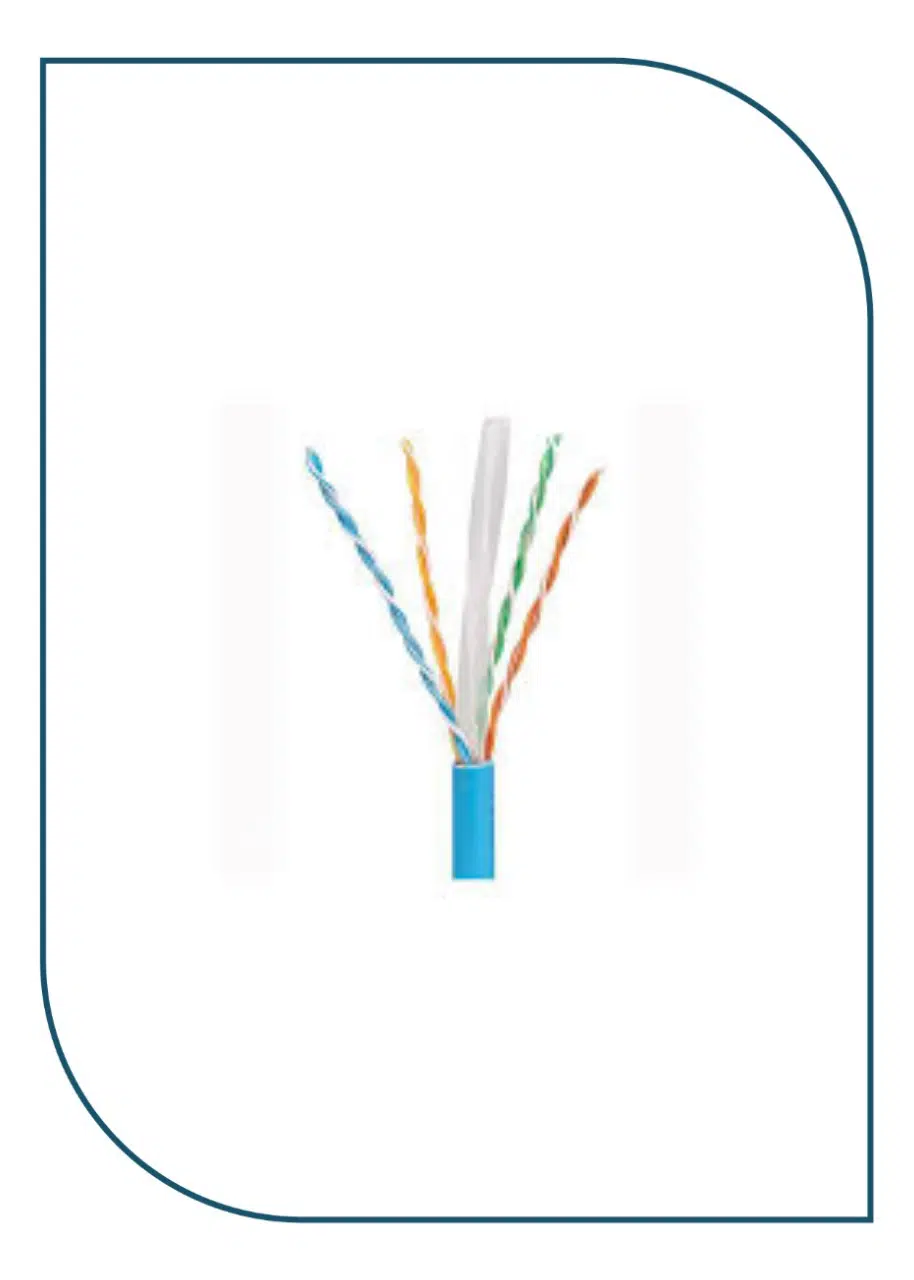

Panduit (PUL6004WH-FE) CAT. 6 U/UTP CABLE TX6000 LSZH 75C , 4 PR/23 AWG , White , RIB
PUL6004WH-FE
Cat. 6 cables for local networks
- Performance 250 MHz
- 4 pairs or 2 x 4 twisted pairs, 100 Ω
- Blue RAL 5015
- ANSI/TIA colour code
Description
The Panduit PUL6004WH-FE is engineered to provide superior network performance for modern enterprise and structured cabling environments. Built with 23AWG solid copper conductors and advanced U/UTP cable construction, this cable exceeds Category 6 industry standards while supporting high-speed Ethernet and PoE applications.
The TX6000 enhanced cable design includes 4 twisted pairs separated by a cross divider to minimize crosstalk and improve signal integrity. Its LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic smoke and harmful emissions during fire incidents, making it ideal for offices, schools, hospitals, data centers, and enclosed installations.
Designed for professional networking deployments, the PUL6004WH-FE supports Gigabit Ethernet, PoE/PoE+/PoE++, VoIP systems, wireless access points, IP surveillance systems, and structured LAN infrastructures. The cable is supplied in an easy payout reel for simplified installation and efficient cable management.
Specifications
| Specification | Details |
|---|---|
| Model | Panduit PUL6004WH-FE |
| Product Series | Panduit TX6000™ |
| Cable Category | CAT6 |
| Cable Type | U/UTP |
| Number of Pairs | 4 Pairs |
| Conductor Size | 23 AWG |
| Conductor Material | Solid Copper |
| Jacket Material | LSZH |
| Color | White |
| Performance Standard | ANSI/TIA-568.2-D Category 6 |
| Fiber/Transmission Support | Gigabit Ethernet |
| PoE Support | IEEE 802.3af/at/bt |
| Outer Diameter | 5.7 mm |
| Packaging Length | 305m Reel |
| Operating Temperature | -20°C to 60°C |
| Installation Temperature | 0°C to 50°C |
| Application | Enterprise Networks, Data Centers, Structured Cabling |
| Brand | Panduit |
Key Features
- Enhanced CAT6 network performance
- 4-pair 23AWG solid copper conductors
- U/UTP cable construction
- LSZH low-smoke safety jacket
- Supports Gigabit Ethernet applications
- Compatible with PoE and PoE++
- Reduced crosstalk with cross divider
- Easy payout installation reel
- Reliable enterprise network connectivity
- Ideal for structured cabling systems
