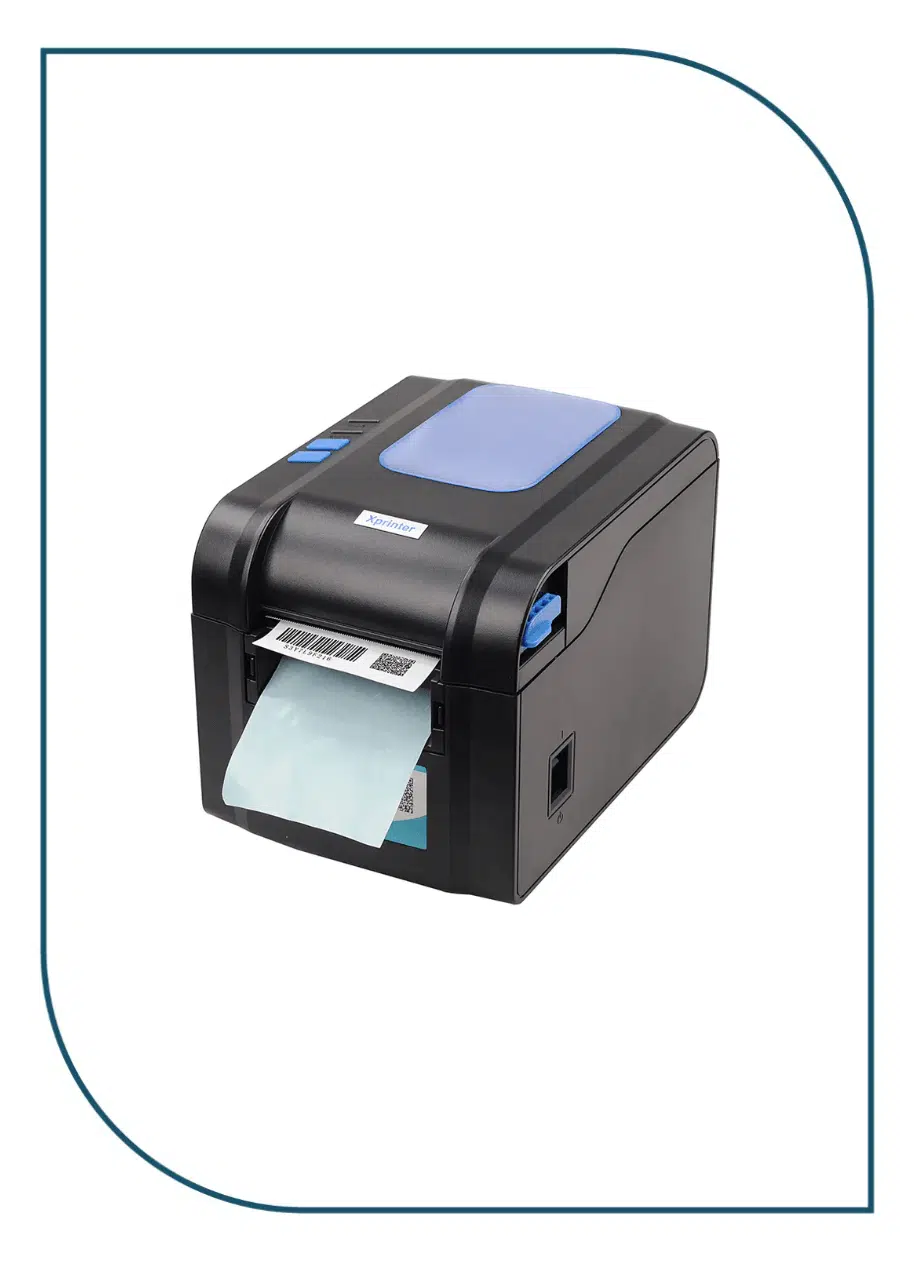

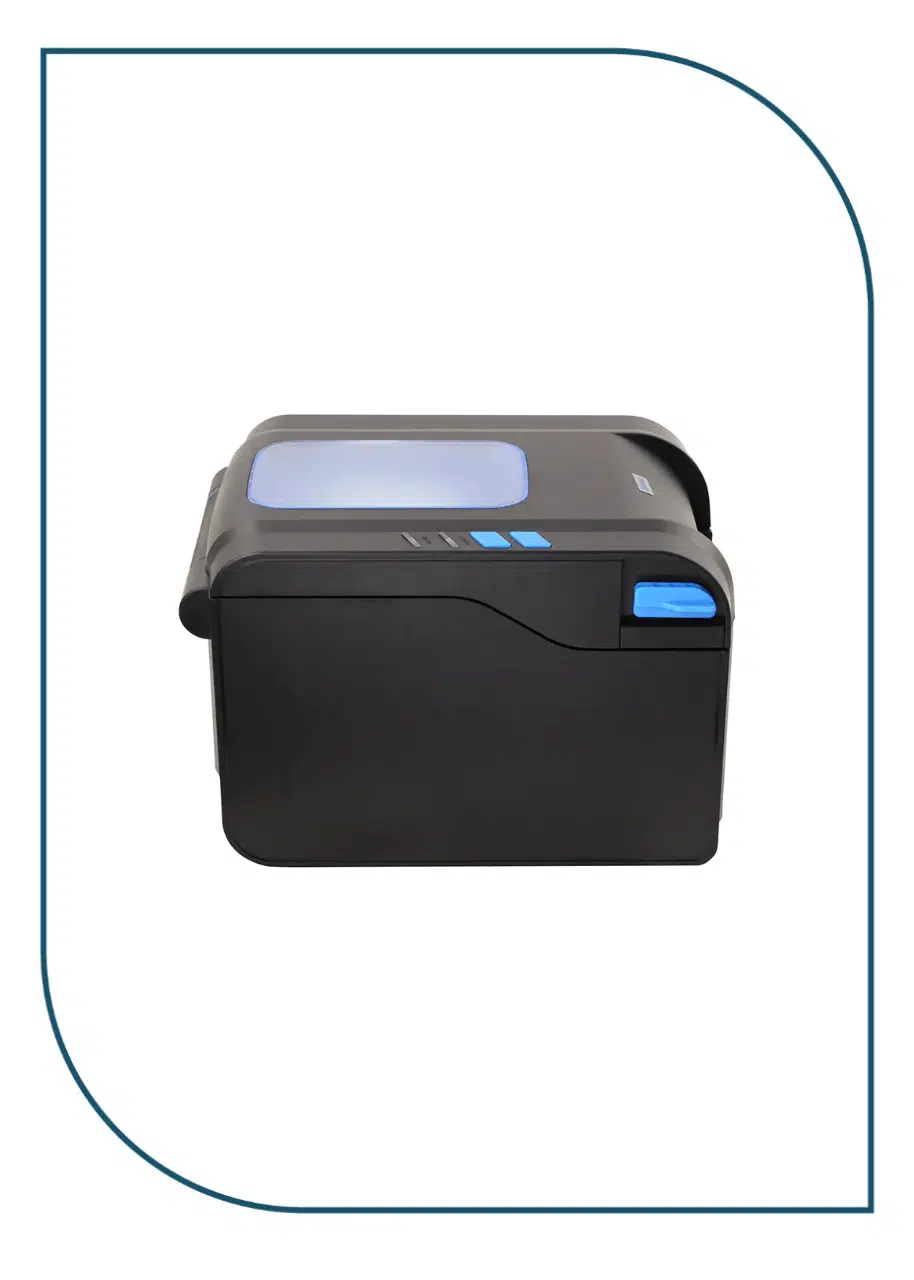

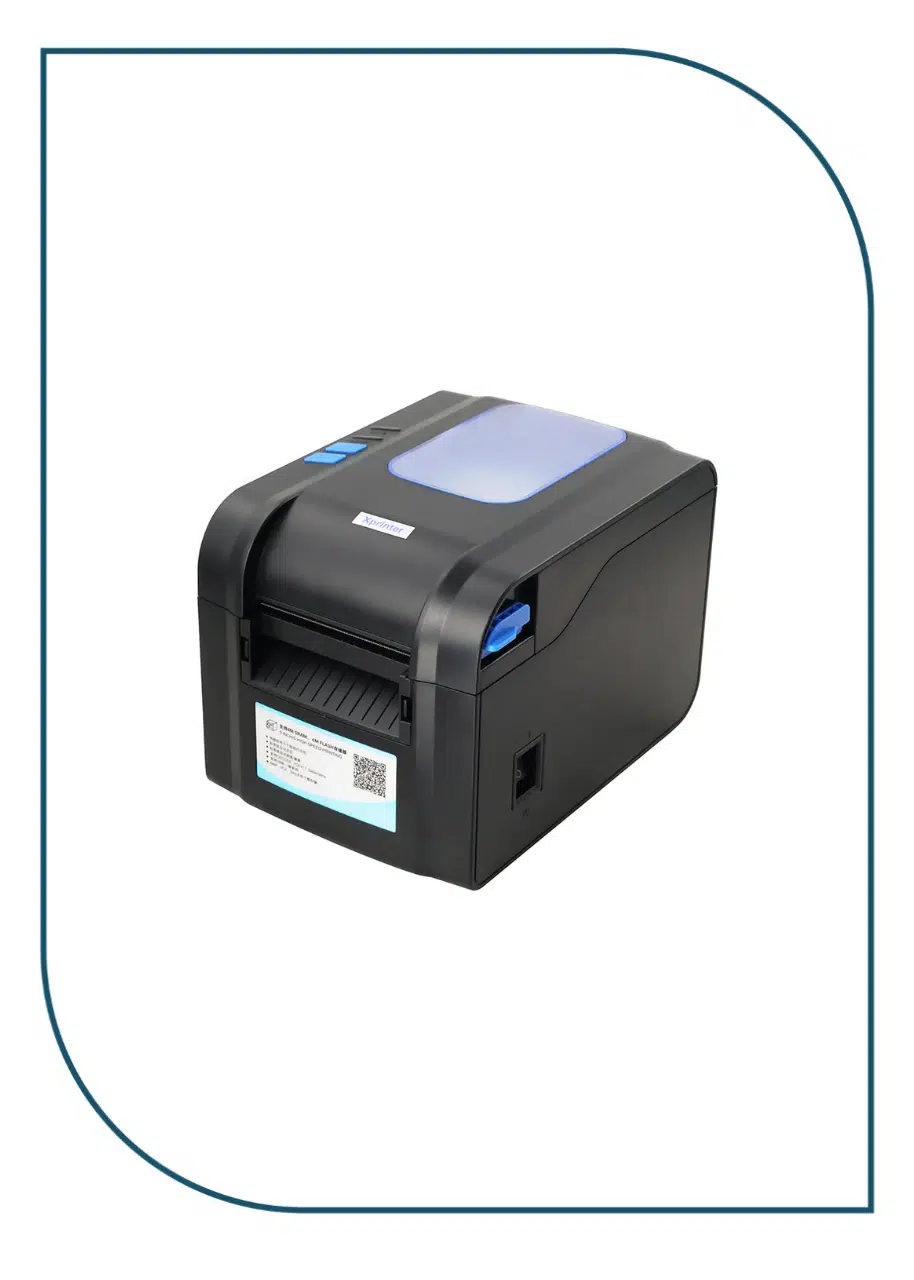

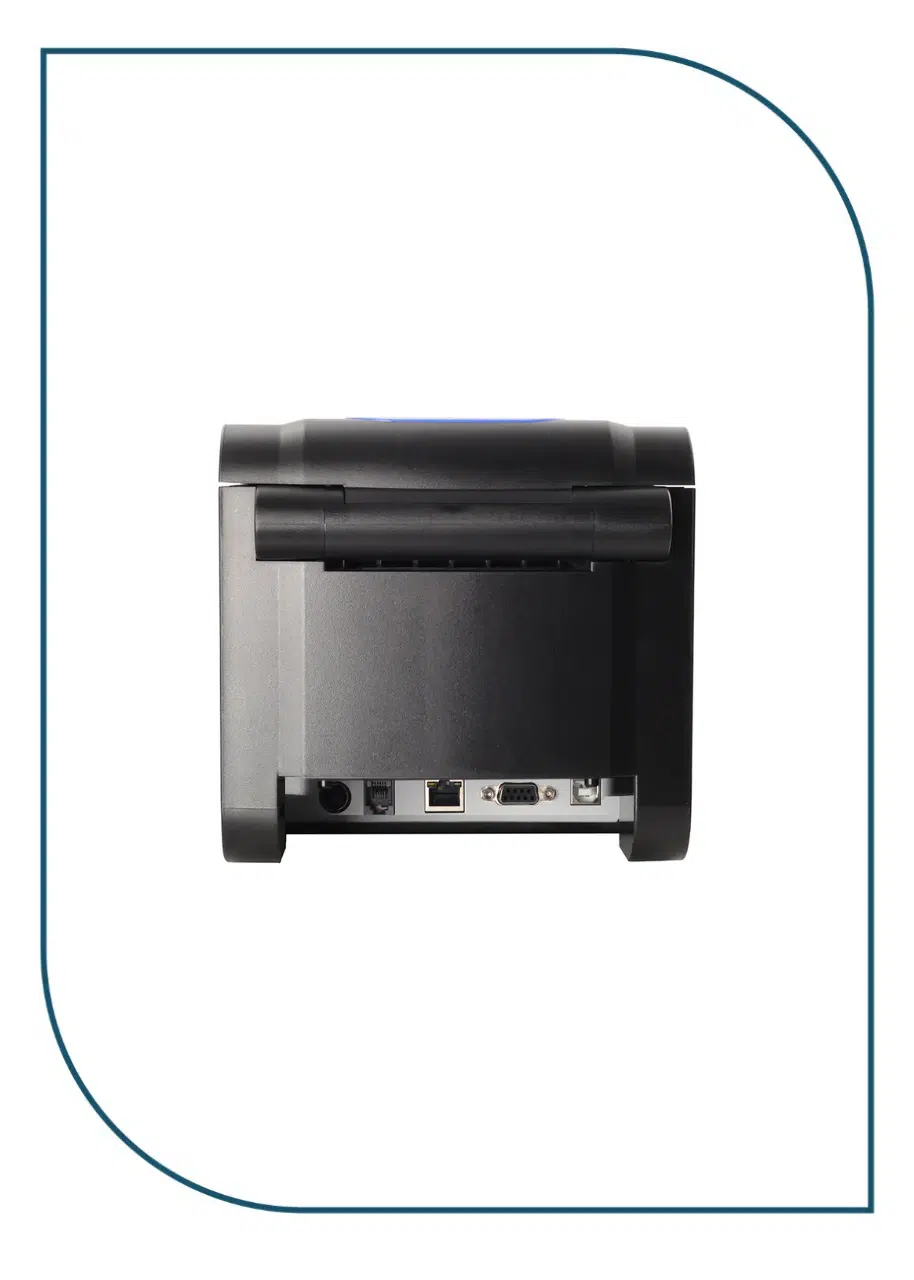

XP-370B
| model | XP-370B / XP-370BM |
| Printing features | |
| accuracy | 203 dots per inch (8 dots/mm) |
| Printing method | direct thermal |
| Maximum print speed | 152 mm/s max. |
| Maximum print width | Maximum 76 mm |
| Media | |
| Media type | Thermal paper/Thermal label paper |
| Media display | 20 ~ 82 mm |
| Media roll diameter | Maximum 100 mm |
| Performance features | |
| memory | RAM: 4MB Flash: 4MB |
| Interfaces | USB + Serial / USB + Serial + LAN
(Optional: Bluetooth) |
| sensors | Print head temperature sensor / cover open / paper end / gap |
| Stairway outlet | 1 port (pin 2 for cash drawer) |
| Fonts/Graphics/Symbols | |
| Letter sizes | Line 0 to Line 8 |
| 1D barcode | CODE128, EAN128, ITF, CODE39, CODE39C, CODE39S, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPCE, UPCE+2, UPCE+5, MSI, MSIC, PLACE, ITF14, EAN14 |
| 2D barcode | PDF417, QR_CODE, DATMATRIX |
| Emoleon | Label printing mode: TSPL Receipt printing mode: ESC/POS |
| Physical features | |
| Dimension | 231*163*150.7mm (Depth x Width x Height) |
| weight | 1.50 kg |
| credibility | |
| Print head life | 100 km |
| programming | |
| driver | Label printing mode: Windows Receipt printing mode: Windows/Linux/Mac/Android |
| power supply | |
| entrance | DC 24V/2.5A |
| Environmental conditions | |
| practical | 5~45°C, Humidity: 20~80% |
| Storage environment | -40~55°C, Humidity: ≥93%RH (40°C) |
