Description

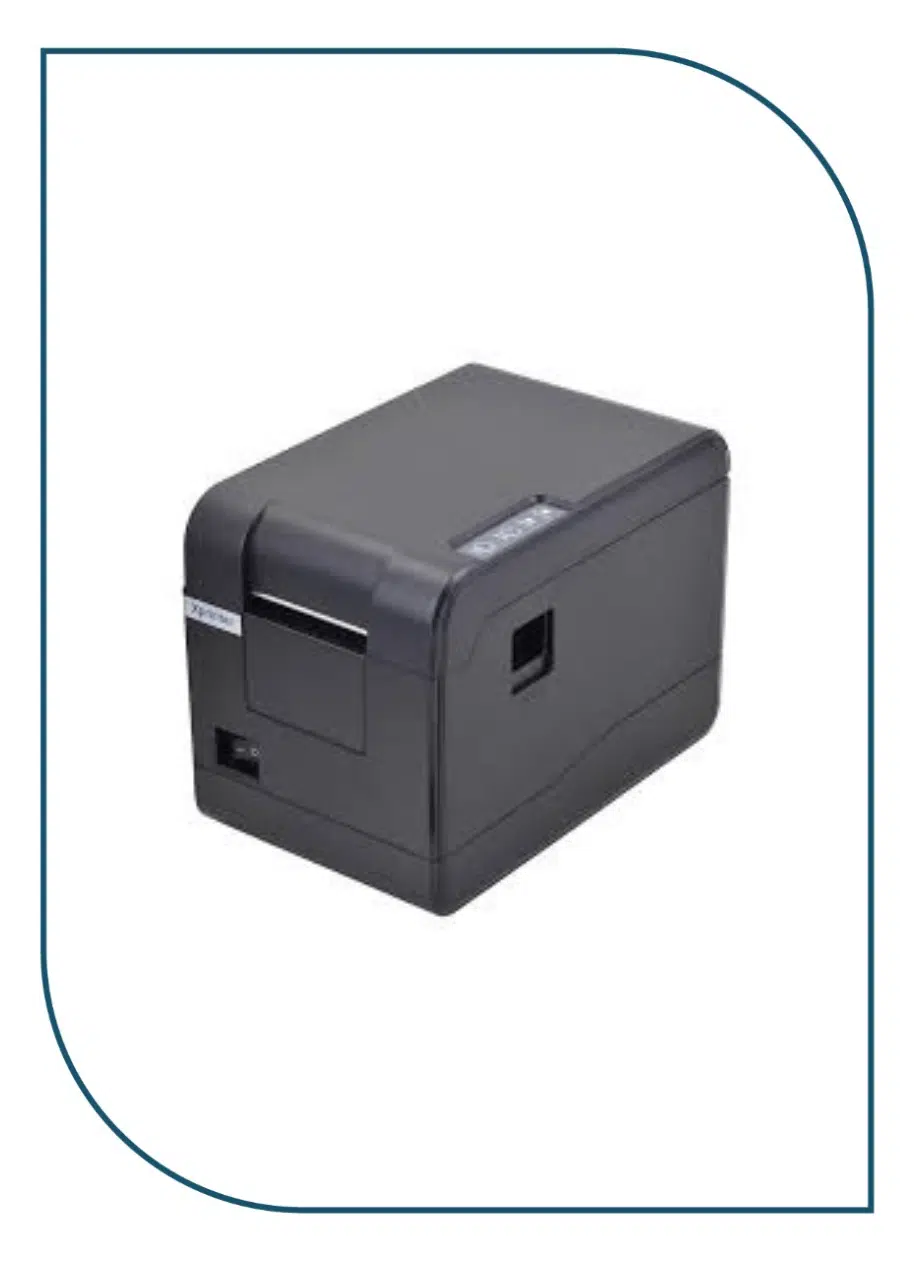

XP-233B
| Printing | |
| Printing method | Thermal barcode Thermal receipt |
| Printing width | 56mm(Max) 48mm |
| Column capactity | 8 dots/mm(203 DPI) 384 dots/line |
| Printing speed | 101mm/s(Max), 50.8mm/s(Min) 90mm/s |
| Interface | USB+ Bluetooth/ USB/ USB+Serial |
| Paper length | 80mm |
| Paper width | 20mm – 60mm |
| Character size | ANK，Font A：1.5×3.0mm（12×24 dots）Font B：1.1×2.1mm（9×17 dots） simplified/traditional Chinese：3.0×3.0mm（24×24 dots） |
| Bar cide | CODE128、EAN128、ITF、ITF25、CODE39、CODE39C、CODE39S、CODE93、
EAN13、EAN13+2、EAN13+5、EAN8、 EAN8+2、EAN8+5、CODABAR、POSTNET、 UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、 UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14 |
| 2-Dimensional | PDF417, QR CODE, DATA MATRIX |
| Power | |
| Power adaptor | DC 12V / 3A |
| Cash drawer output | DC 12V / 1A |
| Physical characteristics | |
| Gross weight | 1.08 kg |
| Dimensions | 206×136×148 (D×W×H) |
| Environmental Requirements | |
| Work environment | 0～45℃, 10～80% RH |
| Storage environment | -10～60℃, 10～90% RH（no condensation） |
