Description

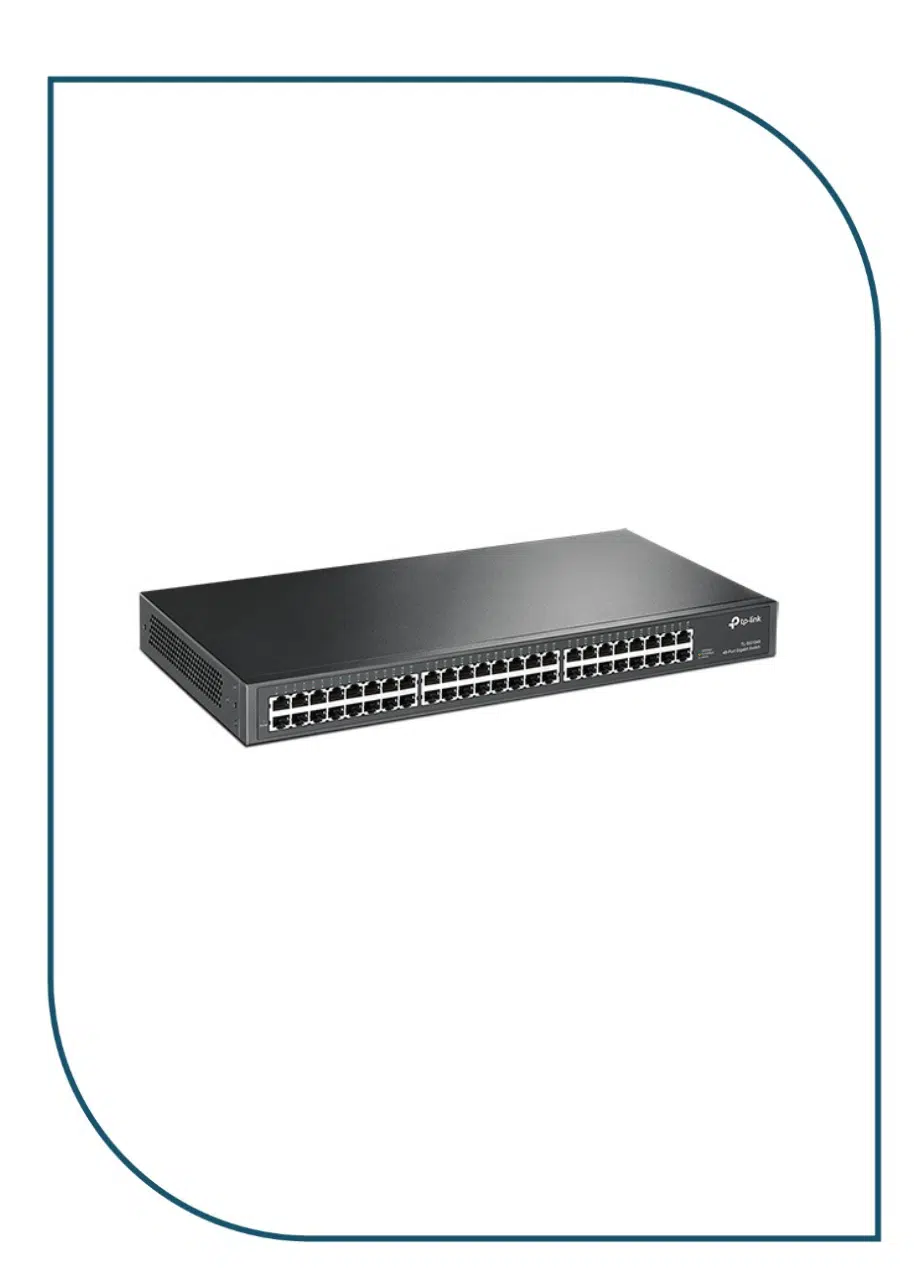

TL-SG1048
Overview :
- 48 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
TL-SG1048 Specifications :
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
|---|---|
| Interface | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 17.3 x 8.7 x 1.7 in.
(440 x 220 x 44 mm) |
| Mounting | 19″ 1U Rack Mountable
(Mounting bracket included) |
| Max. Power Consumption | 32.3W |
| Max. Heat Dissipation | 110.2BTU/h |
| Switching Capacity | 96Gbps |
|---|---|
| Packet Forwarding Rate | 71.4Mpps |
| MAC Address Table | 16K |
| Buffer Memory | 12Mb |
| Jumbo Frame | 12KB |
| Transmission Method | Store-and-Forward |
| Certification | FCC, CE, RoHS |
|---|---|
| Package Content | 48-Port Gigabit Rackmount Switch
Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
