Description

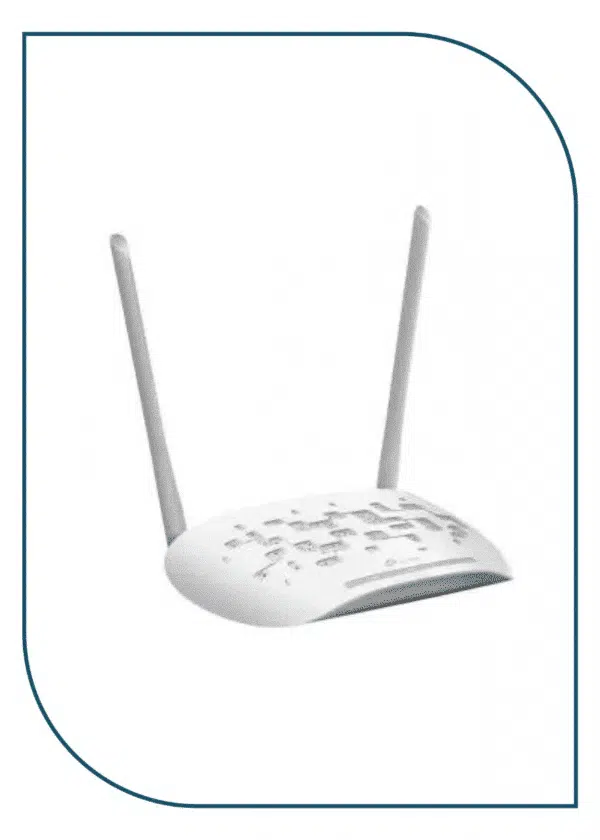

TL-WA801N
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 10/100 M Ethernet Port(RJ45) Support Passive PoE |
| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 9VDC / 0.6A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm) |
| Antenna Type | 2 Fixed Omni-Directional Antennas |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz |
| Reception Sensitivity | 11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm |
| Transmit Power | CE: <15dBm; FCC: <20dBm |
| Wireless Modes | AP Mode Multi-SSID Mode Client Mode Range Extender Mode |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor |
| Wireless Security | WEP, WPA/WPA2, WPA/WPA2-PSK encryptions |
| Quality of Service | WMM |
| Management | SNMP |
| Advanced Functions | Up to 30 meters Passive PoE is supported |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Wireless Access Point TL-WA801N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
